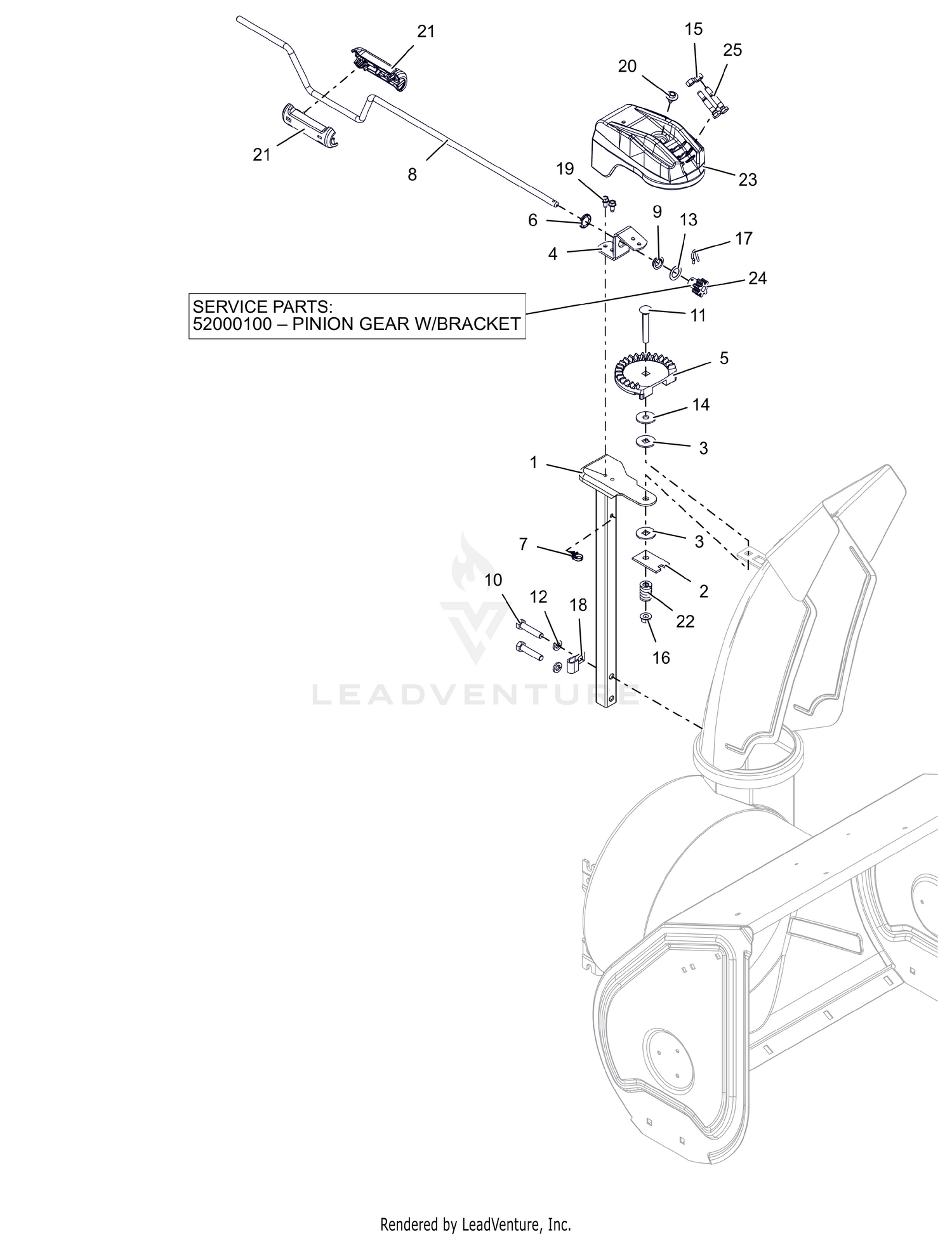

| Ref | Part Number | Description |
|---|
| 1 |
00658351 |
PEDESTAL, CHUTE - CRANK Price: $49.45 |
| 2 |
00398000 |
PLATE, FRICTION Price: $6.95 |
| 3 |
01123800 |
FRICTION WASHER Price: $3.95 |
| 4 |
01972400 |
BRACKET, PINION GEAR Price: $3.45 |
| 5 |
03222900 |
CHUTE GEAR Price: $10.45 |
| 6 |
03224300 |
PUSHNUT .625 Price: $1.95 |
| 7 |
04451600 |
CLIP, CABLE GUIDE Price: $1.95 |
| 8 |
05263100 |
ROD, CHUTE CRANK Price: $30.95 |
| 9 |
05500021 |
BUSHING, POLYLINER-.63 SNAPIN Price: $2.45 |
| 10 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC Price: $1.45 |
| 11 |
06200234 |
BLT,RHSN .38-16X2.50 G5 ZCC Price: $3.95 |
| 12 |
06300116 |
WSHR,LK-REG .375X.094 ZCC Price: $0.95 |
| 13 |
06400009 |
WSHR-THRST .625 X 1.0 X .03 Price: $1.95 |
| 14 |
06401021 |
WSHR FL STL .406X1.25X.10ZC120 Price: $0.95 |
| 15 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC Price: $1.45 |
| 16 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 17 |
06714500 |
PIN, SPRING CLIP Price: $2.45 |
| 18 |
06909400 |
J-CLAMP Price: $3.45 |
| 19 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 20 |
07400138 |
SCR, TAP .25-20X.50 LG HWH ZCC Price: $1.45 |
| 21 |
07500506 |
KNOB- CHUTE CRANK Price: $3.95 |
| 22 |
08320900 |
SG-COMP .187X.56X1.62 Price: $4.45 |
| 23 |
09382300 |
COVER, MOUNT - ICE DRILL Price: $7.45 |
| 24 |
09739601 |
PINION, GEAR CHUTE Price: $10.45 |
