| Ref | Part Number | Description |
|---|
| 1 |
120-0018 |
BRAKE ROD KIT This part replaces 110-5498. Price: $82.04 |
| 1 |
165892 |

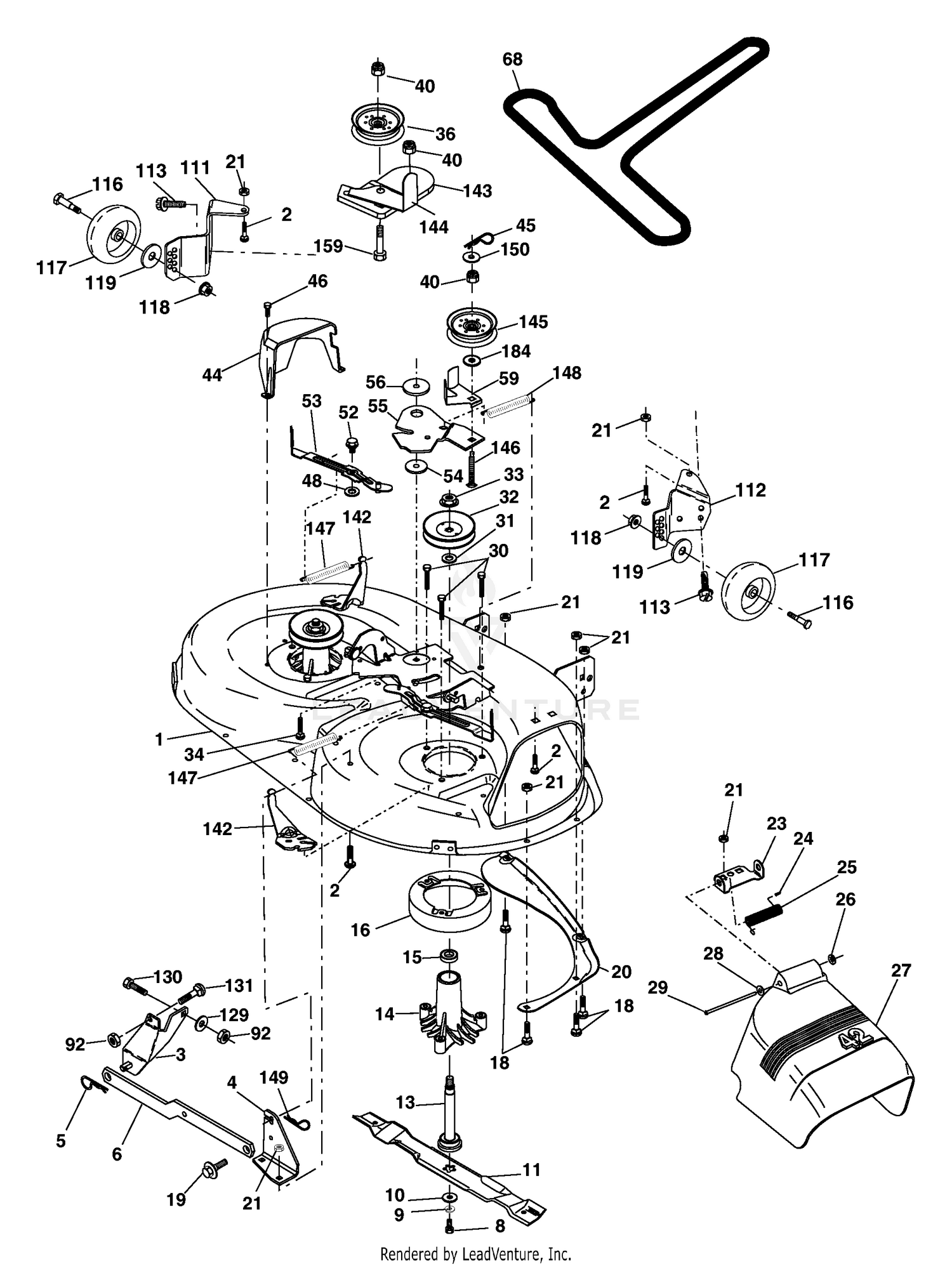

Mower Deck Assembly, 42" Price: Call Us |
| 2 |
3219-3 |
NUT-HEX Price: $0.34 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 4 |
109-2230 |
SPRING-COMPRESSION Price: $8.99 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
112-1676 |
SWIVEL Price: $41.95 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
120-0018 |
BRAKE ROD KIT This part replaces 110-5494. Price: $82.04 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 7 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 8 |
65-2720 |
RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 10 |
323-6 |
SCREW-HH Price: $0.66 |
| 11 |
1-633268 |
GRIP-LEVER Price: $13.99 |
| 12 |
108-5214-03 |
BRAKE HANDLE ASM Price: $81.91 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
95-8900 |
SWITCH Price: $95.42 |
| 16 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 17 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 18 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
110-9754 |
BRAKE PIVOT ASM Price: $32.85 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
1-513140 |
BEARING-CONTROL Price: $4.99 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
1-633131 |
YOKE-LINKAGE, BRAKE Price: $14.99 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer Hardened Price: Call Us |
| 52 |
139888 |
Bolt Shld 5/16-18 Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 92 |
73800600 |
Nut Lock W/Ins 3/8-16 UNC Price: Call Us |
| 111 |
179292 |
Bracket Whl Ga. LH Price: Call Us |
| 112 |
179293 |
Bracket Whl Ga. RH Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt Fin HEx 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt RDHD SQNK 3/8-16 unc x 1 Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extention Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 130794 |
Mandrel |
Assembly Price: Call Us 130794 |
