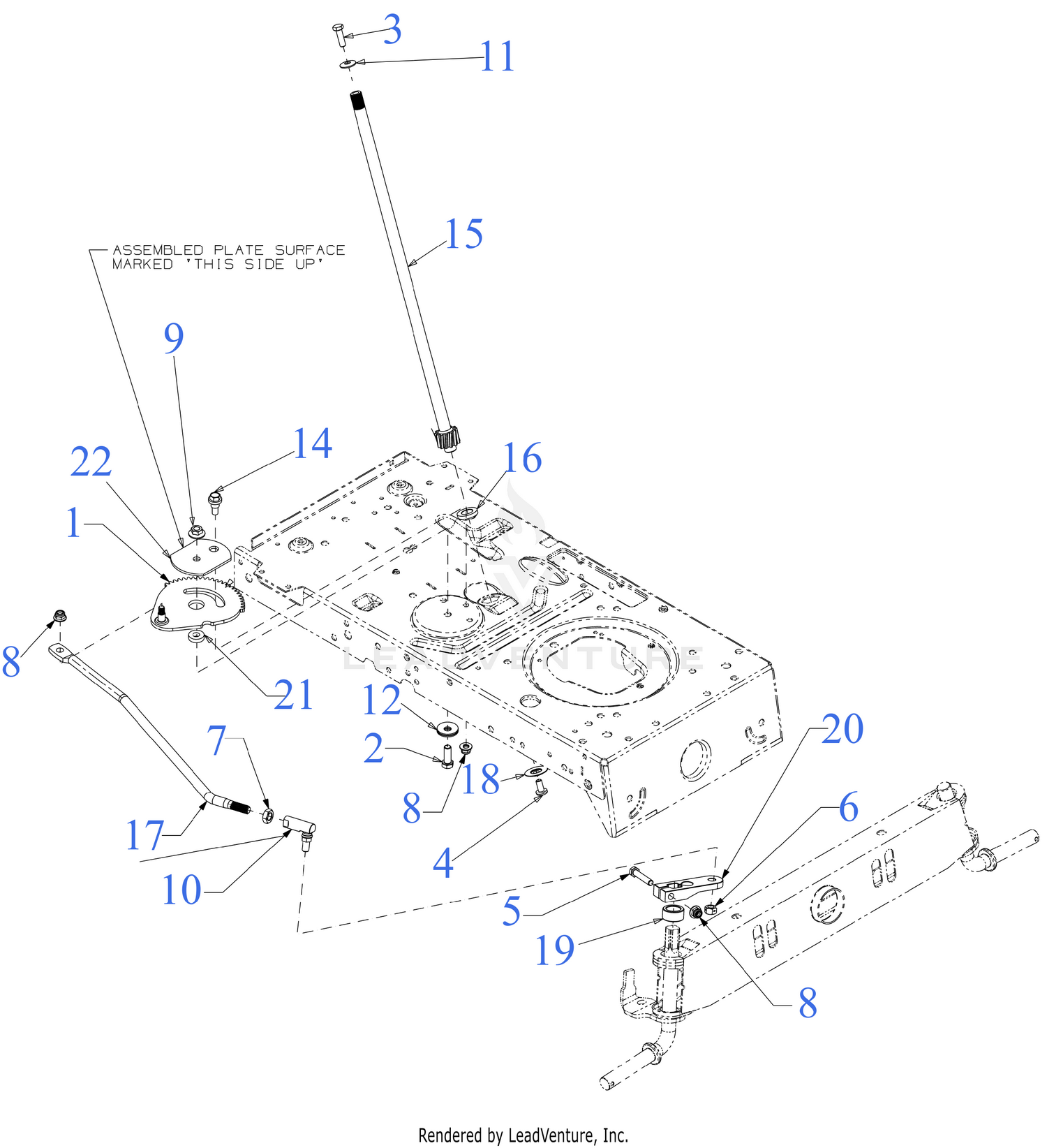

| Ref | Part Number | Description |
|---|
| 1 |
617Z04094A |
FRONT STEERING GEAR ASSEMBLY This part replaces 617-04094. Price: $25.79 |
| 2 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 3 |
710-0643 |
SCREW 5/16-18 x 1.00 GR5 Price: $5.99 |
| 5 |
710-3180 |
SCREW 5/16-18 x 1.75 GR5 Price: $4.93 |
| 7 |
912-0240 |
JAM NUT 7/16-20 Price: $3.90 |
| 10 |
923-0448A |
LOCK BALL JOINT ASSEMBLY 7/16-20 Price: $22.55 |
| 11 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 12 |
736-0331 |
BELL WASHER .390x1.130x.062 Price: $3.50 |
| 14 |
738-04141 |
SHOULDER SCREW .43 X.35,5/16-18 Price: $4.89 |
| 15 |
738P07154 |
STEERING SHAFT (5/8 DIA SPLINE) Price: $49.29 |
| 16 |
741-04124 |
HEX FLANGE BEARING Price: $4.89 |
| 17 |
747-05385A |
STEERING DRAG LINK Price: $18.41 |
| 18 |
948-0389 |
CAP 1.25" x .16" Price: $4.40 |
| 19 |
748-04068 |
SPACER .77IDX1.130ODX.56 Price: $3.56 |
| 20 |
748-04278 |
Steering, Block This part replaces 748-04278-0637. Price: $18.48 |
| 21 |
750-06192A |
SPACER Price: $3.70 |
