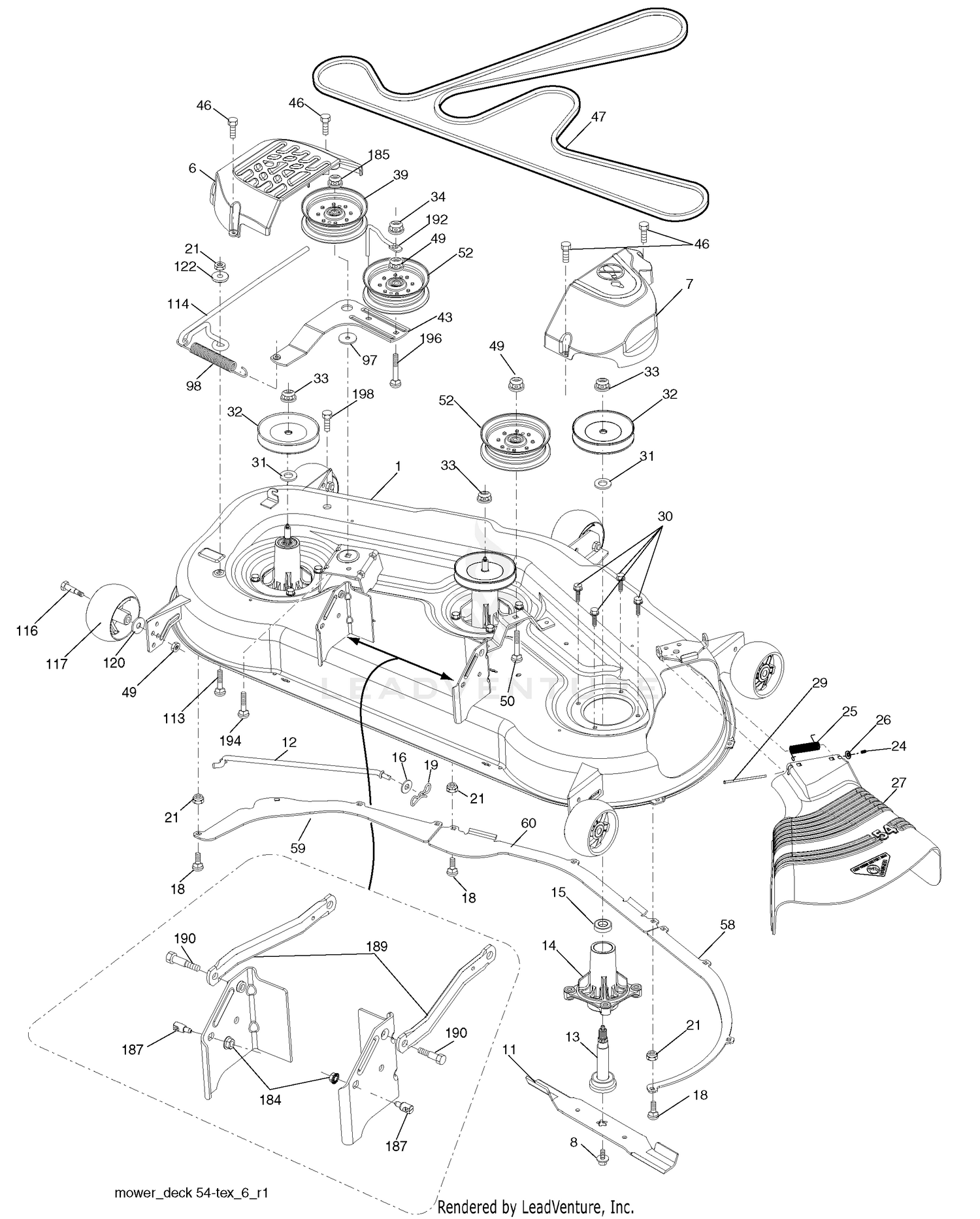

| Ref | Part Number | Description |
|---|
| 1 |
195632X421 |
Deck Weldment Mower Price: Call Us |
| 6 |
196066 |
Cover Mandrel LH Price: Call Us |
| 7 |
197181 |
Cover Mandrel RH Price: Call Us |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 11 |
187256 |
Blade Discharge/Bagging Price: Call Us |
| 12 |
404851 |
Rod-Anti Sway Price: Call Us |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 18 |
72140505 |
Bolt 5/16 - 18 x 5/8 Price: Call Us |
| 19 |
194208 |
Pin Cotter 5/16 Bow Tie Lock Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 24 |
105304X |
Cap Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
187257X428 |
Deflector Shield Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdrol. Washer Head Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Flg. Top Lock Price: Call Us |
| 34 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 39 |
197380 |
Pulley, Idler 4.50 HUB Price: Call Us |
| 43 |
196065 |
Arm, Idler Price: Call Us |
| 46 |
137729 |
Screw, Thdrol. 1/4-20 x 5/8 Price: Call Us |
| 47 |
196103 |
V-Belt, Mower Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
72110616 |
Bolt Rdhd. Sqnk. 3/8-16 unc x 2 Price: Call Us |
| 52 |
197379 |
Pulley Idler Price: Call Us |
| 58 |
187342 |
Baffle Right Price: Call Us |
| 59 |
187344 |
Baffle Left Price: Call Us |
| 60 |
187607 |
Baffle Center Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
196105 |
Spring Drive Price: Call Us |
| 113 |
72110508 |
Bolt Rdhd. Sqnk. 5/16-18 x 3/4 Price: Call Us |
| 114 |
187556 |
Rod Tension Relief Price: Call Us |
| 116 |
193406 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 120 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 184 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 185 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 187 |
195161 |
Stud Fastener w/"D" Anti-Rotation Price: Call Us |
| 189 |
195185 |
Arm Susp. Mower Rear Price: Call Us |
| 190 |
196539 |
Bolt Shoulder Price: Call Us |
| 192 |
198468 |
Keeper Belt Idler Price: Call Us |
| 194 |
72140716 |
Bolt Carr. Sqnk. 3/8-16 x 2-1/4 Price: Call Us |
| 196 |
72140620 |
Bolt Rdhd. Sqnk. 3/8-16 x 2-1/2 Gr. 5 Price: Call Us |
| 198 |
17670608 |
Screw Thdrol. 3/8-16 x 1/2 Price: Call Us |
