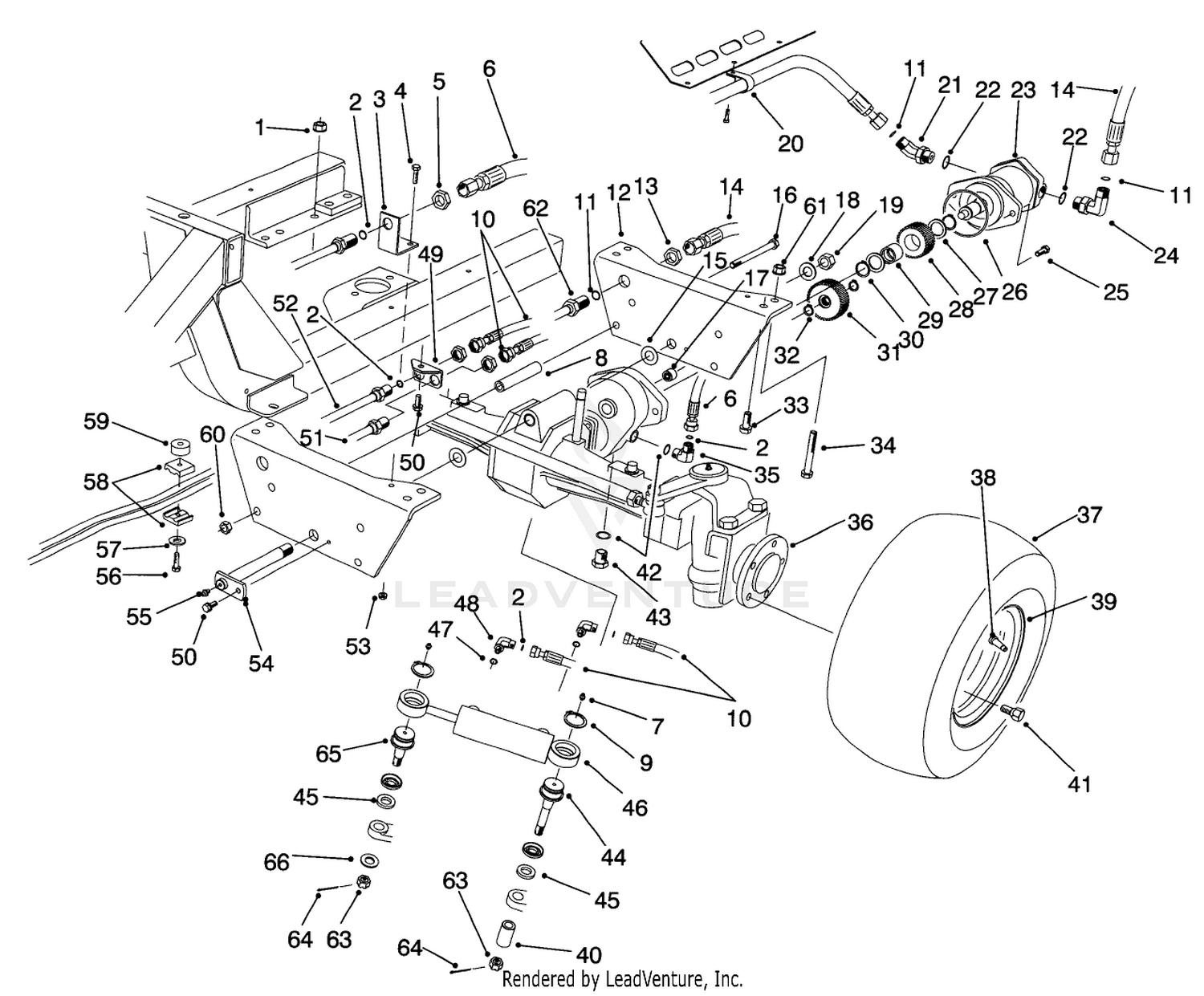

| Ref | Part Number | Description |
|---|
| 1 |
32128-23 |
NUT-HF Price: $1.51 |
| 2 |
237-22 |
O-RING Price: $2.43 |
| 3 |
76-9290 |
BRACKET-DRAIN, CASE Price: $9.53 |
| 4 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 5 |
340-70 |
NUT-LOCK Price: $2.10 |
| 6 |
86-3140 |
HOSE ASM Price: $68.42 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 8 |
76-8350 |
STOP-AXLE Price: $10.92 |
| 9 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 10 |
76-9590 |
HOSE ASM Price: $73.44 |
| 11 |
237-65 |
O-RING Price: $2.50 |
| 12 |
84-1170 |
PLATE-AXLE PIVOT *B Price: $195.50 |
| 13 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 14 |
86-2730 |
DISCONTINUED Price: Call Us |
| 15 |
76-6570 |
THRUST WASHER Price: $1.42 |
| 16 |
325-20 |
SCREW-HH Price: $6.29 |
| 17 |
74-5700 |
BEARING-NEEDLE, ROLLER Price: $27.84 |
| 18 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 19 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 20 |
2412-74 |
R-CLAMP Price: $2.37 |
| 21 |
340-156 |
FITTING-ELBOW 45 Price: $67.70 |
| 22 |
237-81 |
O-RING Price: $2.76 |
| 23 |
76-6580 |
DISCONTINUED Price: Call Us |
| 24 |
340-139 |
FITTING-ELBOW 90 Price: $117.76 |
| 25 |
325-4 |
SCREW-HH Price: $0.95 |
| 26 |
237-166 |
O-RING Price: $10.46 |
| 27 |
71-4590 |
WASHER-THRUST Price: $3.32 |
| 28 |
92-5825 |
GEAR - DRIVER, 12 PITCH Price: $116.02 |
| 29 |
71-4580 |
BEARING Price: $80.51 |
| 30 |
32151-96 |
RING-RETAINING Price: $0.54 |
| 31 |
92-5826 |
GEAR - DRIVEN, 12 PITCH Price: $116.24 |
| 32 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 33 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 34 |
325-35 |
SCREW-HH Price: $2.37 |
| 35 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 36 |
95-4355 |
DISCONTINUED This part replaces 74-5621. Price: Call Us |
| 37 |
86-5910 |
TIRE-6 PLY Price: $114.98 |
| 38 |
120-8909 |
RIM This part replaces 217-125. Price: $198.53 |
| 39 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 40 |
92-5844 |
DISCONTINUED Price: Call Us |
| 41 |
74-5500 |
BOLT-WHEEL Price: $10.84 |
| 42 |
237-42 |
O-RING Price: $2.78 |
| 43 |
353-508 |
PLUG-HH Price: $7.96 |
| 44 |
92-5839 |
JOINT-BALL Price: $207.89 |
| 45 |
92-5833 |
SPACER-JOINT, BALL Price: $20.71 |
| 46 |
92-6584 |
DISCONTINUED Price: Call Us |
| 47 |
237-78 |
O-RING Price: $3.85 |
| 48 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 49 |
74-6450 |
BRACKET-BULKHEAD, STEERING Price: $44.73 |
| 50 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 51 |
86-5790 |
LH REAR STEERING TUBE ASM Price: $104.10 |
| 52 |
86-5780 |
RH REAR STEERING TUBE ASM Price: $109.22 |
| 53 |
32128-33 |
NUT-HF Price: $0.25 |
| 54 |
74-5250 |
DISCONTINUED Price: Call Us |
| 55 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 56 |
32104-37 |
SCREW-HWH, THREAD CUT Price: $3.26 |
| 57 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 58 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 59 |
80-8660 |
SPACER-COUPLER Price: $49.67 |
| 60 |
3296-45 |
NUT-HEX Price: $3.79 |
| 61 |
32128-49 |
NUT-HHF Price: $1.04 |
| 63 |
32136-14 |
NUT-HST Price: $3.38 |
| 64 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 65 |
106-6774 |
JOINT-BALL This part replaces 92-5838. Price: $79.04 |
