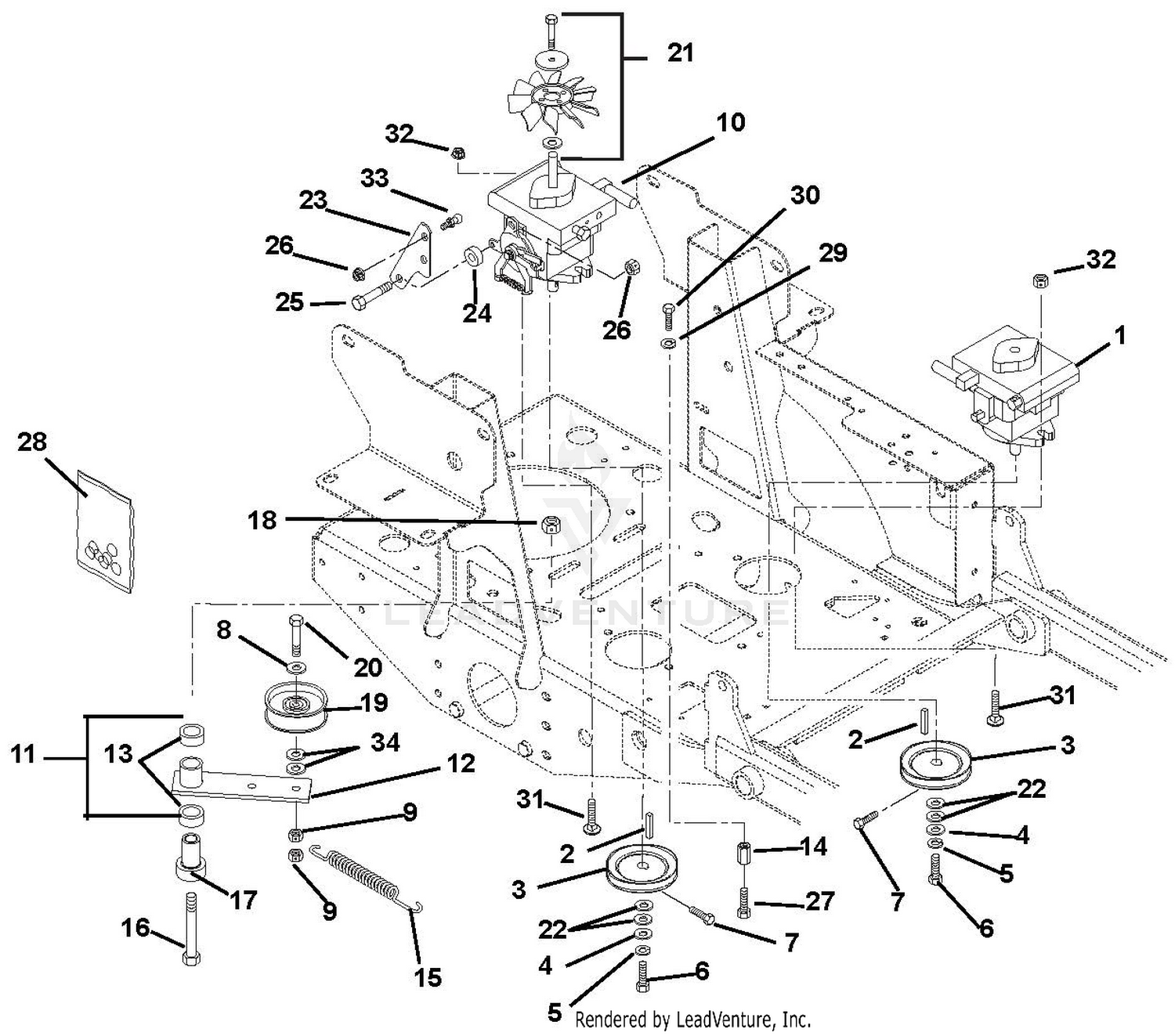

| Ref | Part Number | Description |
|---|
| 1 |
09297600 |
PUMP, HYD BDP-10A (LH) Price: $759.95 |
| 2 |
06607500 |
KEY-STR 5MMX25MMX5MM Price: $3.45 |
| 3 |
07318900 |
SHEAVE, PUMP .592 X 4.345 Price: $45.95 |
| 4 |
06401020 |
WSHR,FLT .281X1.000X.063 ZCC This part replaces 06426600. Price: $0.95 |
| 5 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 6 |
05900017 |
BLT-HEX M6X1.0X12 YZ EP30 Price: $5.95 |
| 7 |
05900008 |
BLT-HEX .25-20X.50 GR5 EPOXY Price: $1.95 |
| 8 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 9 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 10 |
09285200 |
PUMP, BDP-10A-441 (THRU SHAFT) Price: $826.45 |
| 12 |
09217000 |
WMT, IDLER ARM GROUND DRIVE Price: $88.45 |
| 13 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 14 |
06533500 |
NUT COUPLING .375-16X1.75 Price: $3.45 |
| 15 |
08300728 |
SPRING- EXTENSION This part replaces 08336000. Price: $24.95 |
| 16 |
05901703 |
BLT,HEX .50-13X3.75 G5 ZCC This part replaces 05960100. Price: $5.45 |
| 17 |
07000031 |
BEARING, PEDESTAL Price: $74.45 |
| 18 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 19 |
07300101 |
ASM, 4" IDLER (.75 WIDE) This part replaces 07312500. Price: $56.45 |
| 20 |
05901812 |
BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45 |
| 21 |
09274900 |
FAN, COOLING Price: $40.95 |
| 22 |
06401118 |
WSHR, FLT .656X1.313X.095 ZCC This part replaces 06442800. Price: $2.45 |
| 23 |
09282900 |
BRACKET, RTN/DAMPER Price: $6.95 |
| 24 |
02513500 |
SPACER .344X1.000X.375 Price: $4.95 |
| 25 |
05901803 |
BLT, HEX .31-18X1.25 G5 ZCC This part replaces 05947500. Price: $2.45 |
| 26 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 27 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45 |
| 29 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 30 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 32 |
06500811 |
NUT,NYL-FLG .44-14 GF ZCC This part replaces 06500009. Price: $5.45 |
| 33 |
03652200 |
STUD- BALL Price: $3.45 |
