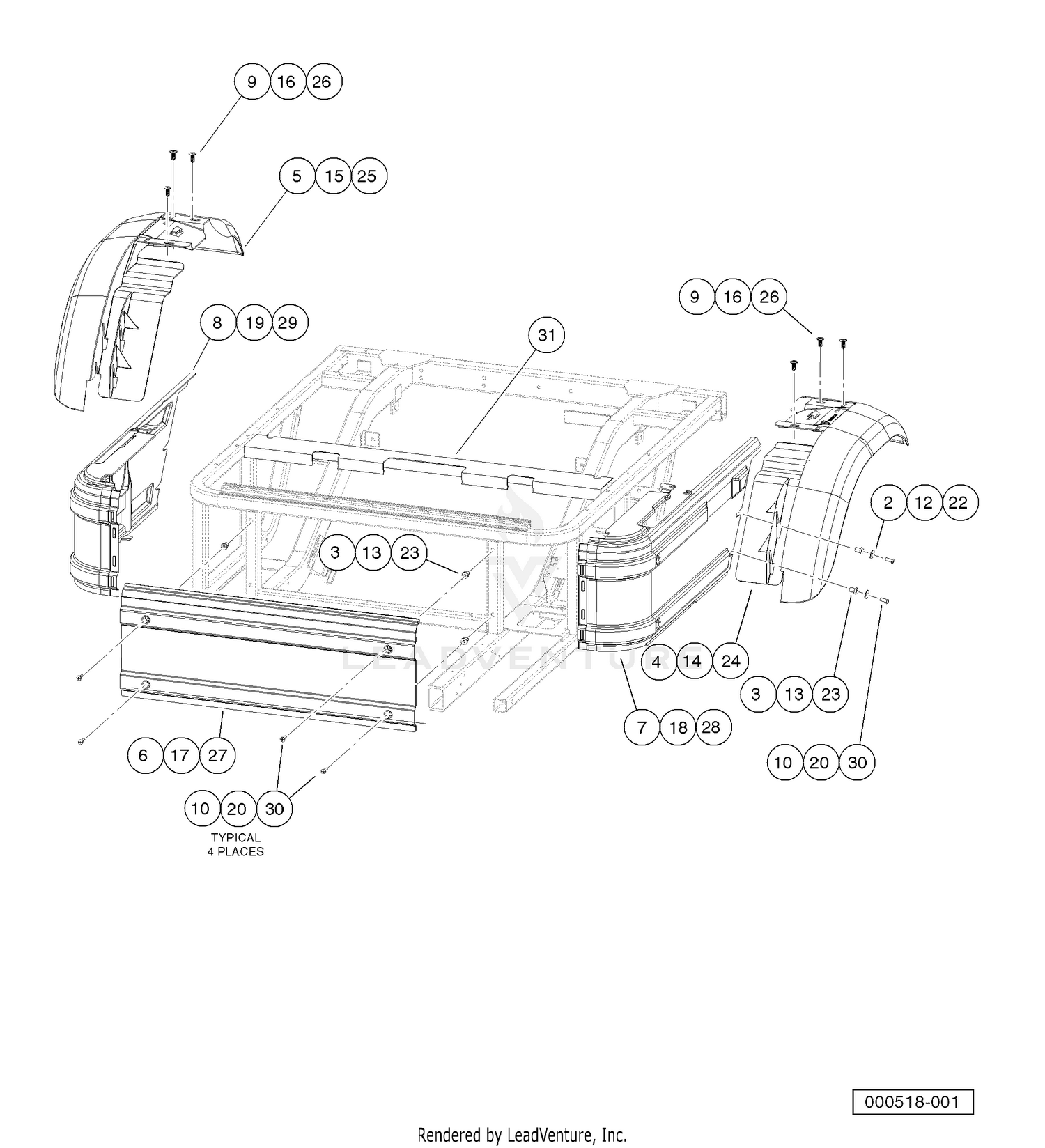

| Ref | Part Number | Description |
|---|
| 1 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 2 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
603000222 |
WASHER Price: $1.99 |
| 3 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 3 |
603001176 |
WELL NUT 1/4-20 Price: $5.99 |
| 4 |
531307439 |
LEFT REAR FENDER Price: $69.99 |
| 4 |
93-3604 |
GASKET Price: $20.04 |
| 5 |
531307441 |
RIGHT REAR FENDER Price: $64.99 |
| 5 |
93-1396 |
COUPLER Price: $212.18 |
| 6 |
354-78 |
FITTING-STR Price: $49.33 |
| 6 |
603003478 |
PANEL, FRONT, KICK Price: $84.99 |
| 7 |
603003479 |
PANEL, SIDE, MOLDED, DRV Price: $84.99 |
| 7 |
75-4400-03 |
ADAPTOR Price: $260.66 |
| 8 |
237-163 |
O-RING Price: $3.02 |
| 8 |
603003480 |
PANEL, SIDE, MOLDED, PASS Price: $74.99 |
| 9 |
603003481 |
SCREW, TUFLOK, 10MM Price: $2.99 |
| 9 |
93-3642 |
TUBE-PUMP, PORT 1 Price: $90.68 |
| 10 |
603000091 |
SCREW, 1/4-20 X 1.0 TRS HD MCH Price: $1.99 |
| 10 |
93-3643 |
TUBE-PUMP, PORT 2 Price: $78.42 |
| 11 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 12 |
340-3 |
FITTING-STRAIGHT Price: $10.42 |
| 12 |
603000222 |
WASHER Price: $1.99 |
| 13 |
603001176 |
WELL NUT 1/4-20 Price: $5.99 |
| 14 |
531307439 |
LEFT REAR FENDER Price: $69.99 |
| 15 |
531307441 |
RIGHT REAR FENDER Price: $64.99 |
| 16 |
603003481 |
SCREW, TUFLOK, 10MM Price: $2.99 |
| 20 |
603000091 |
SCREW, 1/4-20 X 1.0 TRS HD MCH Price: $1.99 |
| 22 |
603000222 |
WASHER Price: $1.99 |
| 23 |
603001176 |
WELL NUT 1/4-20 Price: $5.99 |
| 24 |
531307439 |
LEFT REAR FENDER Price: $69.99 |
| 25 |
531307441 |
RIGHT REAR FENDER Price: $64.99 |
| 26 |
603003481 |
SCREW, TUFLOK, 10MM Price: $2.99 |
| 27 |
603004120 |
PANEL, FRONT, KICK, MOFF Price: $119.99 |
| 28 |
603004121 |
PNL, SIDE, MLD, DRV, MOFF Price: $549.99 |
| 29 |
603004122 |
PNL, SIDE, MLD, PASS, MOFF Price: $499.99 |
| 30 |
603000091 |
SCREW, 1/4-20 X 1.0 TRS HD MCH Price: $1.99 |
