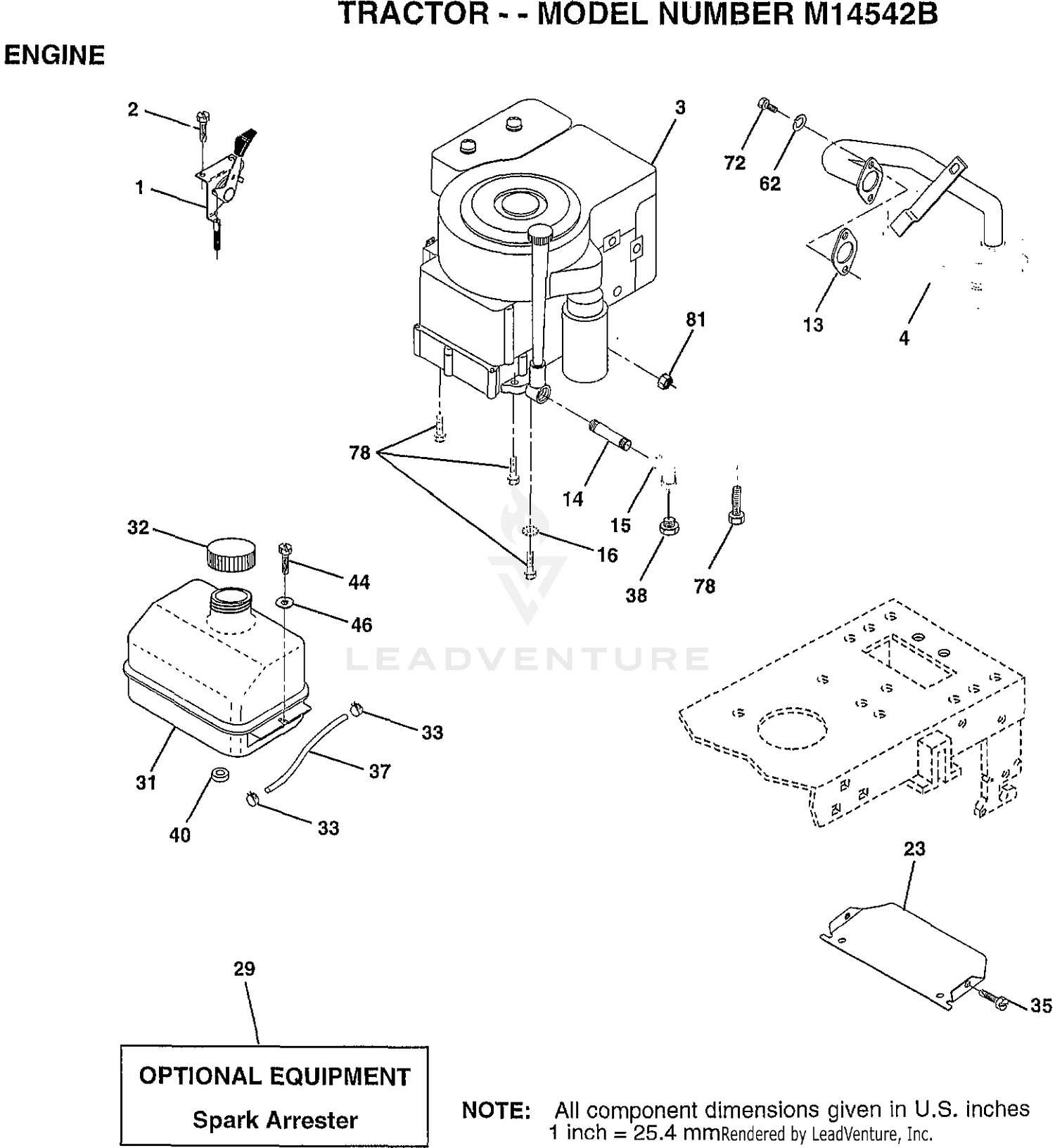

| Ref | Part Number | Description |
|---|
| 1 |
140310 |
CONTROL THROTTLE Price: Call Us |
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
287707 |
ENGINE B&S Price: Call Us |
| 4 |
137352 |
MUFFLER Price: Call Us |
| 4 |
321-4 |
SCREW-HH Price: $0.99 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 7 |
33114-025 |
SCREW-HH Price: $0.70 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
112-9542 |
HYD GEAR PUMP ASM This part replaces 110-5538. Price: $950.70 |
| 10 |
108-5194 |
FILTER-OIL, HYD Price: $39.77 |
| 11 |
131-5510 |
TRANSMISSON ASM This part replaces 107-0801. Price: $6,920.16 |
| 12 |
108-9920 |
COUPLER-SPLINE Price: $53.39 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 13 |
33115-035 |
SCREW-HH Price: $1.15 |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 14 |
340-155 |
FITTING-STRAIGHT Price: $28.90 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
340-105 |
FITTING-ELBOW, 90 DEG Price: $39.67 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 17 |
112-1683 |
HOSE Price: $231.99 |
| 18 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 19 |
104-7201 |
NUT-HF Price: $0.69 |
| 20 |
33115-050 |
SCREW-HH Price: $1.36 |
| 21 |
87-1910 |
PIN-DOWEL Price: $1.22 |
| 22 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 23 |
108-5193 |
HOUSING-FLYWHEEL Price: $591.16 |
| 23 |
156123 |
SHIELD-HEAT Price: Call Us |
| 24 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 25 |
80-8560 |
WASHER-HARDENED Price: $5.70 |
| 26 |
110-5518 |
HOSE Price: $199.05 |
| 27 |
108-9919 |
O-RING Price: $3.56 |
| 28 |
120-0239 |
SUPPORT-TUBE This part replaces 110-5534. Price: $10.36 |
| 29 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
107-2289 |
MOUNT-MOTOR Price: $129.57 |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 31 |
110-5536 |
FITTING-HYD, ADAPTER Price: $41.30 |
| 32 |
110-5537 |
TUBE Price: $23.63 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 33 |
94-5961 |
HOSE Price: $143.03 |
| 34 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 35 |
17490512 |
SCREW Price: Call Us |
| 35 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 72 |
71070512 |
SCREW Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
