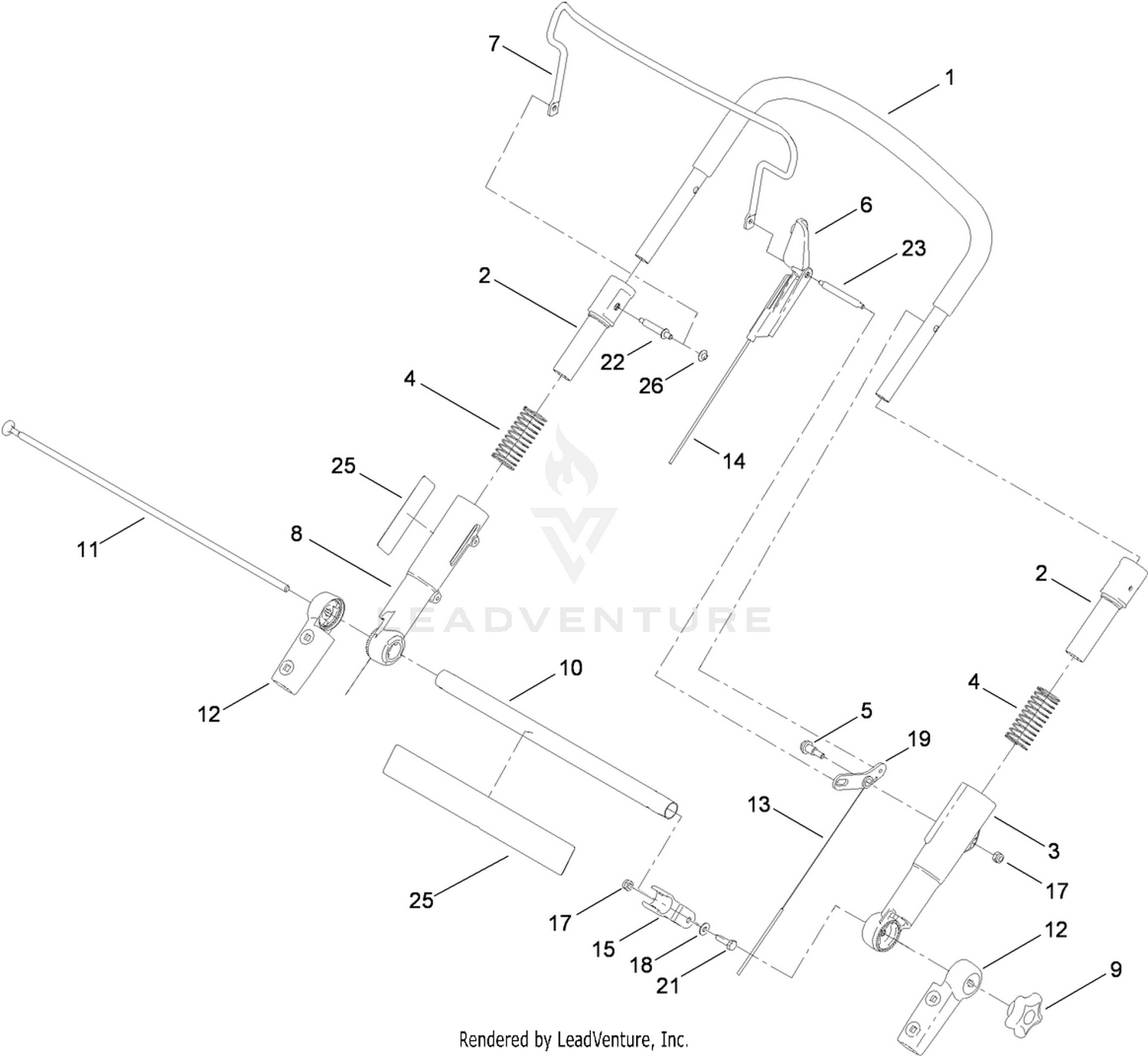

Upper Handle Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-0974 | UPPER HANDLE ASM Price: $55.20 |
| 2 | 112-8754 | SLEEVE-INNER Price: $4.34 |
| 3 | 112-1544 | SLEEVE-OUTER, LH Price: $10.73 |
| 4 | 107-3869 | SPRING-COMPRESSION Price: $0.88 |
| 5 | 104-0858 | BOLT-SHOULDER Price: $4.69 |
| 6 | 112-8764 | STOP-PIVOT Price: $3.06 |
| 7 | 110-1819-03 | BAIL-BRAKE Price: $16.78 |
| 8 | 112-1545 | SLEEVE-OUTER, RH Price: $10.73 |
| 9 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 10 | 107-3867-03 | TUBE-CROSS Price: $16.38 |
| 11 | 107-3871 | ROD-THREADED Price: $12.52 |
| 12 | 107-3865 | MOUNT-HANDLE, LOWER Price: $8.10 |
| 13 | 110-9465 | CABLE-TRACTION Price: $35.72 |
| 14 | 107-3903 | CABLE-BRAKE Price: $32.26 |
| 15 | 112-8801 | CLAMP-CABLE Price: $7.35 |
| 17 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 18 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 19 | 107-3893 | LEVER-TRACTION Price: $2.43 |
| 21 | 321-5 | SCREW-HH Price: $0.22 |
| 22 | 108-0959 | PIN-HANDLE Price: $4.24 |
| 23 | 108-1008 | PIN-BAIL, LH Price: $4.24 |
| 25 | 120-3907 | DECAL-ADS Price: $5.26 |
