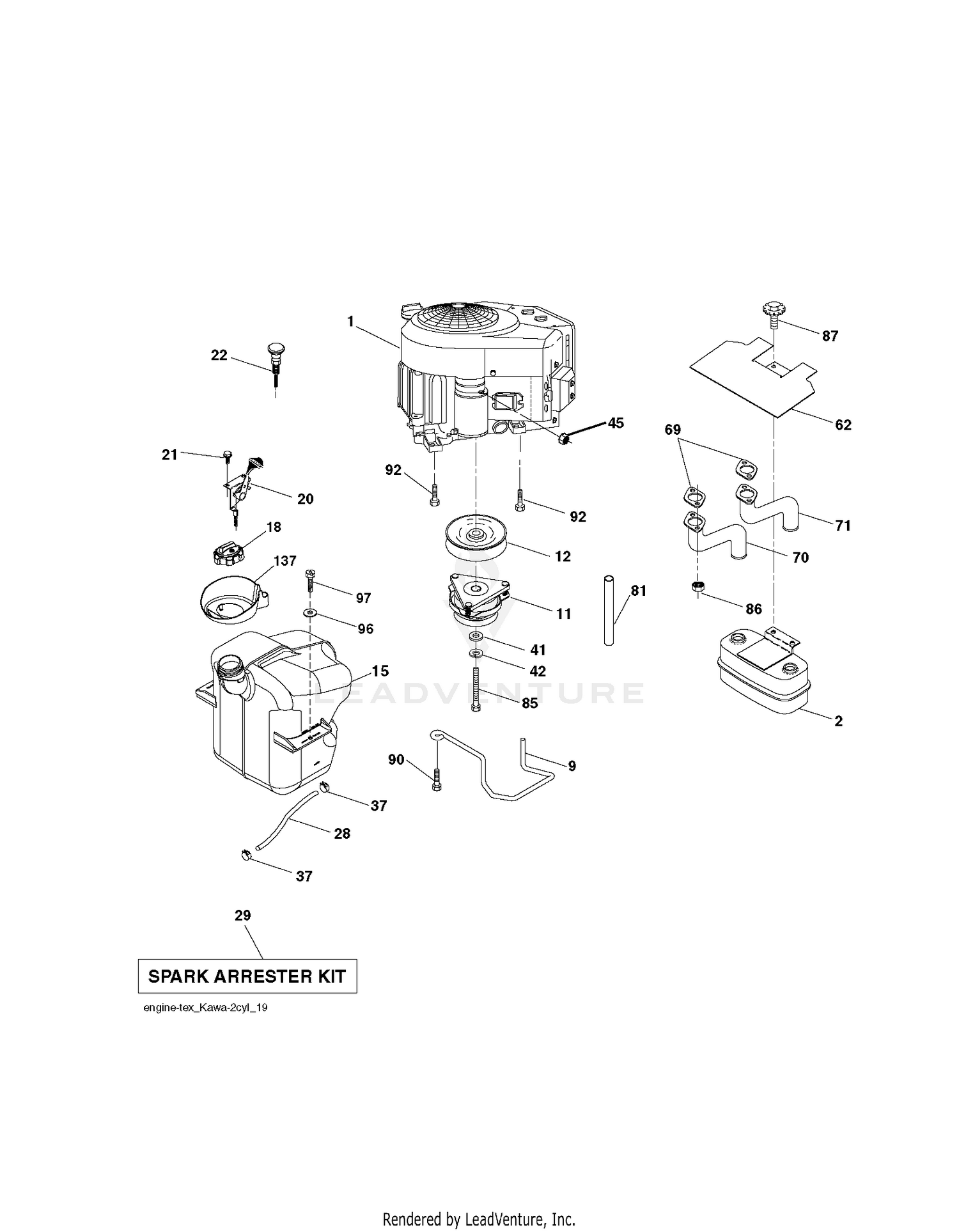

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
112-7018 |
VALVE-INLET This part replaces 120-2563. Price: $41.87 |
| 11 |
583389701 |
KIT.SVC.CLUTCH.ELE.180505 This part replaces 532180505. Price: $299.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
583507201 |
TANK.ASSY.XTERNAL.FILL.GT2.TEX This part replaces 532435816. Price: $129.99 |
| 20 |
120-2564 |
VALVE-EXHAUST Price: $34.21 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
107-9092 |
RETAINER-SPRING Price: $2.58 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
117-7572 |
COLLET-SPRING, VALVE Price: $9.43 |
| 60 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 70 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 80 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
105-3758 |
PIN-SPRING Price: $0.57 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
110-3832 |
WASHER-PLAIN Price: $0.71 |
| 137 |
532441461 |
SPILL.CUP Price: $7.99 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 160 |
112-7020 |
ROCKER ARM ASM Price: $75.86 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
