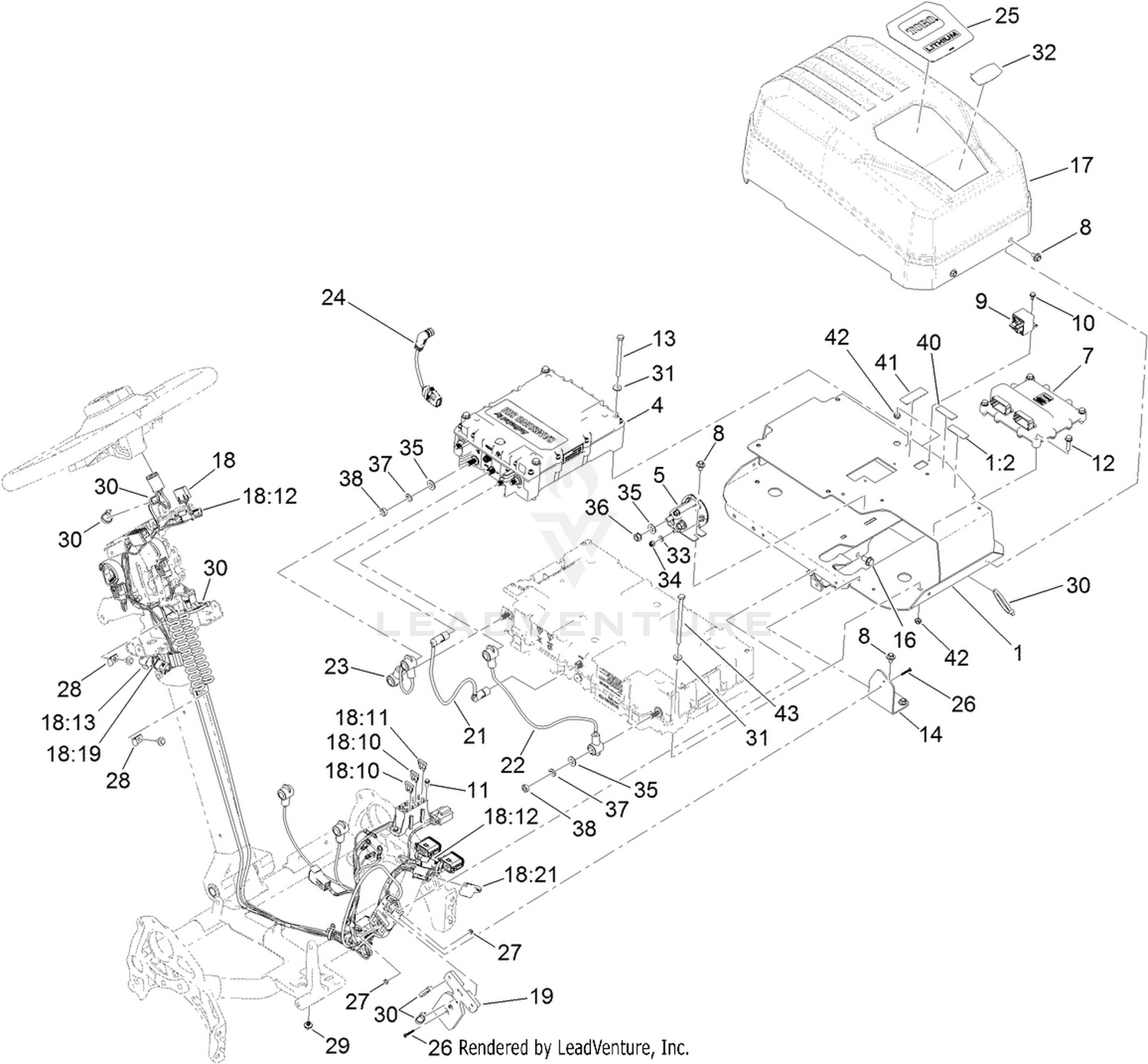

| Ref | Part Number | Description |
|---|
| 1 |
140-3412 |
FRAME ASM-BATTERY (SERVICE) Price: $384.71 |
| 4 |
137-9651 |
CONTROLLER Price: $2,406.22 |
| 5 |
122-1274 |
CONTACTOR-DC, 48V Price: $154.99 |
| 7 |
122-1683 |
CONTROLLER-TEC 2402 Price: $1,020.25 |
| 8 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 9 |
122-3200 |
RELAY This part replaces 122-2401. Price: $61.20 |
| 10 |
104-2065 |
SCREW-HWH Price: $0.28 |
| 11 |
32144-87 |
SCREW-HWHTF Price: $0.49 |
| 12 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 13 |
321-19 |
SCREW-HH Price: $1.13 |
| 14 |
139-5152-01 |
MOUNT-BATTERY CONNECT Price: $17.53 |
| 16 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 17 |
140-9278 |
COVER-ELECTRIC Price: $342.11 |
| 18 |
122-1734 |
HARNESS-WIRE, GR EFLEX 1021 Price: $2,157.65 |
| 19 |
120-4646 |
HANDLE-CONNECTOR Price: $16.72 |
| 21 |
122-1334 |
HARNESS-WIRE, SAMSUNG INTERFACE, M/S Price: $169.33 |
| 22 |
122-1771 |
HARNESS-WIRE, RD ASM Price: $37.45 |
| 23 |
122-1772 |
HARNESS-WIRE, BK ASM Price: $31.21 |
| 24 |
122-1667 |
HARNESS-WIRE, INTERFACE(SYSTEM) Price: $237.42 |
| 25 |
139-5180 |
DECAL-LITHIUM Price: $36.98 |
| 26 |
363-6528 |
SCREW Price: $0.54 |
| 27 |
120-9684 |
NUT-LOCK Price: $0.25 |
| 28 |
2412-91 |
CLAMP Price: $2.43 |
| 29 |
32180-400 |
CLIP-TIE, FIR TREE W/TIE, 5MM/.196" HOLE Price: $4.27 |
| 30 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 31 |
119-8952 |
WASHER Price: $0.77 |
| 32 |
119-7580 |
DECAL-ENERGY SMART Price: $4.53 |
| 33 |
120-9680 |
WASHER-FLAT Price: $0.95 |
| 34 |
364-0371 |
NUT-HEX Price: $0.66 |
| 35 |
107-0279 |
WASHER Price: $1.36 |
| 36 |
121-4698 |
NUT-KEPS Price: $1.15 |
| 37 |
107-0280 |
WASHER-LOCK Price: $0.34 |
| 38 |
137-8088 |
NUT-HEX Price: $1.63 |
| 40 |
139-5614 |
DECAL-OP MANUAL Price: Call Us |
| 41 |
120-9574 |
DECAL-FUSE Price: $13.76 |
| 42 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
