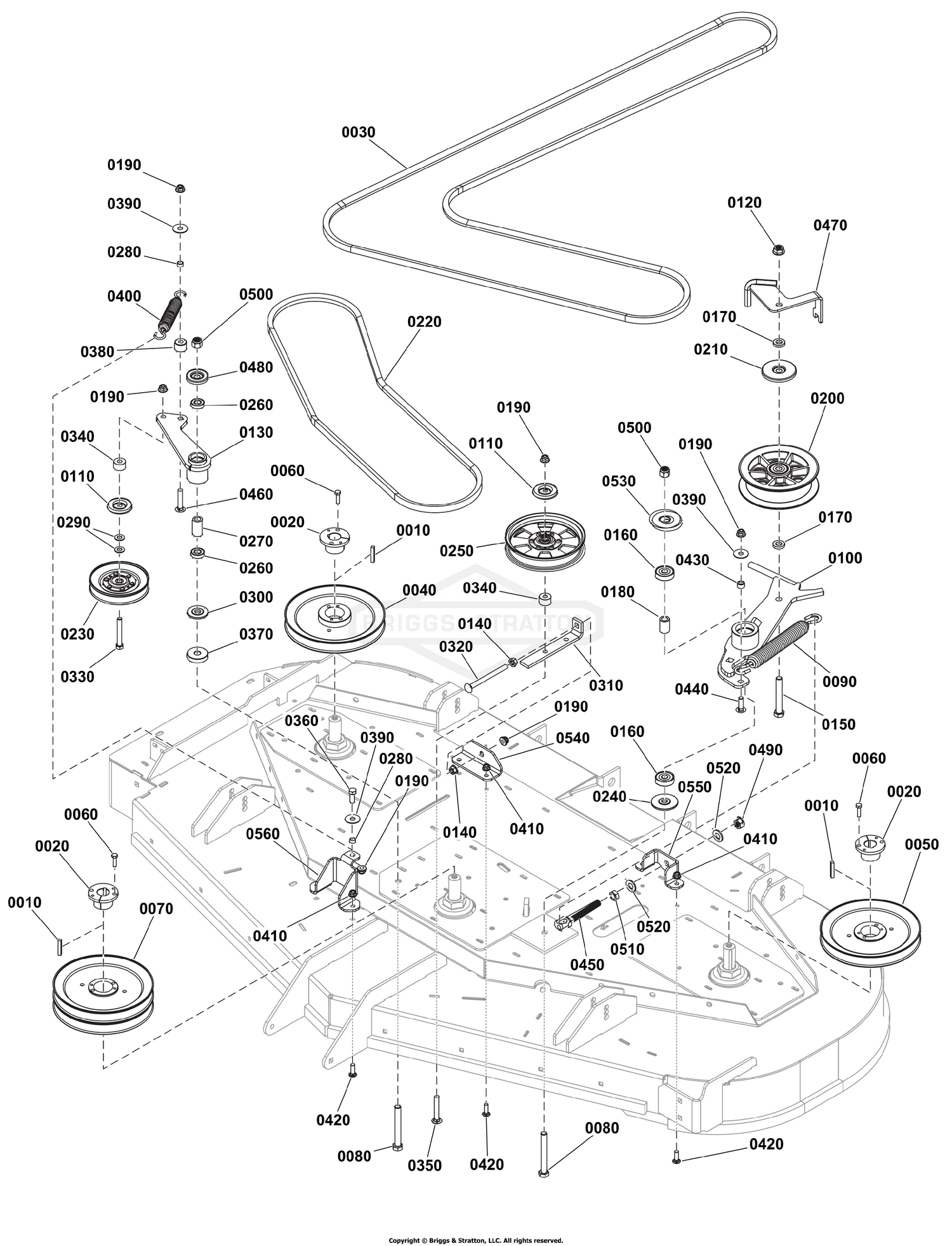

| Ref | Part Number | Description |
|---|
| 0010 |
5022726YP |
KEY 1/4 SQ X 1 1/2 Price: $4.62 |
| 0020 |
5020819SM |
BUSHING, Tapered Hub (Includes bolts) Price: $23.97 |
| 0030 |
84003292 |
BELT Price: $94.86 |
| 0040 |
84003286 |
PULLEY Price: $54.01 |
| 0050 |
84003287 |
PULLEY Price: $54.01 |
| 0060 |
5025010X8SM |
BOLT, 1/4-20 X 1", GD Price: $3.29 |
| 0070 |
84003288 |
PULLEY Price: $94.80 |
| 0080 |
5025017X32YP |
BOLT, 1/2-13 X 4 GD5 Price: $5.42 |
| 0090 |
5105068YP |
SPRING Price: $70.54 |
| 0100 |
84003252 |
ARM, IDLER Price: $93.69 |
| 0110 |
5105033YP |
SHIELD Price: $3.07 |
| 0120 |
770225 |
NUT Price: $2.76 |
| 0130 |
5416161AYP |
ARM-IDLER Price: $56.49 |
| 0140 |
5025128SM |
NUT, 3/8-16 HEX SERRA Price: $2.97 |
| 0150 |
5025017X28SM |
BOLT, 1/2-13 X 3-1/2" Price: $5.00 |
| 0160 |
5104383YP |
BEARING Price: $8.95 |
| 0170 |
5100520SM |
SPACER .515X1.00X.218 Price: $5.61 |
| 0180 |
5104456YP |
SPACER, .51 X .84 X 1 Price: $3.85 |
| 0190 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK Price: $3.82 |
| 0200 |
84007049 |
PULLEY ASSEMBLY Price: $78.26 |
| 0210 |
5105041YP |
SHIELD Price: $3.19 |
| 0220 |
84003291 |
BELT This part replaces 5105036FS. Price: $42.76 |
| 0230 |
84004874 |
PULLEY Price: $30.86 |
| 0240 |
5104379YP |
SPACER Price: $8.26 |
| 0250 |
84003290 |
PULLEY Price: $61.72 |
| 0260 |
7078243YP |
BEARING, BALL, AXLE Price: $9.37 |
| 0270 |
5103812YP |
SPACER, .52 X .84 X 1 Price: $7.16 |
| 0280 |
5041930SM |
SPACER, .38 X .50 X . Price: $4.29 |
| 0290 |
5025156FS |
WASHER Price: $3.15 |
| 0300 |
5103262YP |
SPACER, IDLER ARM Price: $7.16 |
| 0310 |
84003284 |
PLATE Price: $11.75 |
| 0320 |
5025146X36YP |
BOLT Price: $3.62 |
| 0330 |
5025013X22SM |
BOLT, 3/8-16 X 2-3/4" Price: $3.62 |
| 0340 |
5100334SM |
SPACER Price: $6.93 |
| 0350 |
84005878 |
BOLT Price: $2.22 |
| 0360 |
5025013X8SM |
BOLT, 3/8-16 X 1" GD5 Price: $3.29 |
| 0370 |
84003251 |
SPACER Price: $4.73 |
| 0380 |
5043815YP |
SPACER Price: $9.81 |
| 0390 |
5025165SM |
WASHER, 3/8" FENDER Price: $3.51 |
| 0400 |
5022847SM |
SPRING, EXTENSION, SW Price: $31.96 |
| 0410 |
703115 |
NUT This part replaces 5025392FS. Price: $3.06 |
| 0420 |
5025145X8SM |
BOLT, 5/16-18 X 1", C Price: $3.29 |
| 0430 |
5105297YP |
SPACER Price: $5.50 |
| 0440 |
703130 |
BOLT Price: $3.61 |
| 0450 |
5105844YP |
ANCHOR, SPRING Price: $14.70 |
| 0460 |
5025146X16SM |
BOLT, 3/8-16 X 2", CA Price: $3.62 |
| 0470 |
84003253 |
GUIDE, BELT Price: $40.78 |
| 0480 |
84007959 |
SHIELD, BEARING, 1/2" ID-1.75" Price: $3.17 |
| 0490 |
5025098SM |
NUT, 1/2-20 HEX NYLON Price: $5.32 |
| 0500 |
5025056FS |
NUT Price: $3.98 |
| 0510 |
5025089SM |
NUT, 1/2-20 HEX JAM Price: $3.51 |
| 0520 |
5025158SM |
WASHER, 1/2" SAE Price: $3.51 |
| 0530 |
84007958 |
SHIELD, BEARING, 1/2" ID-2.5" Price: $2.04 |
| 0540 |
84007961 |
PLATE, PULLER MOUNT, SPRING-BLK Price: $8.80 |
| 0550 |
84007962 |
PLATE, IDLER BOLT, LONG-BLK Price: $16.17 |
