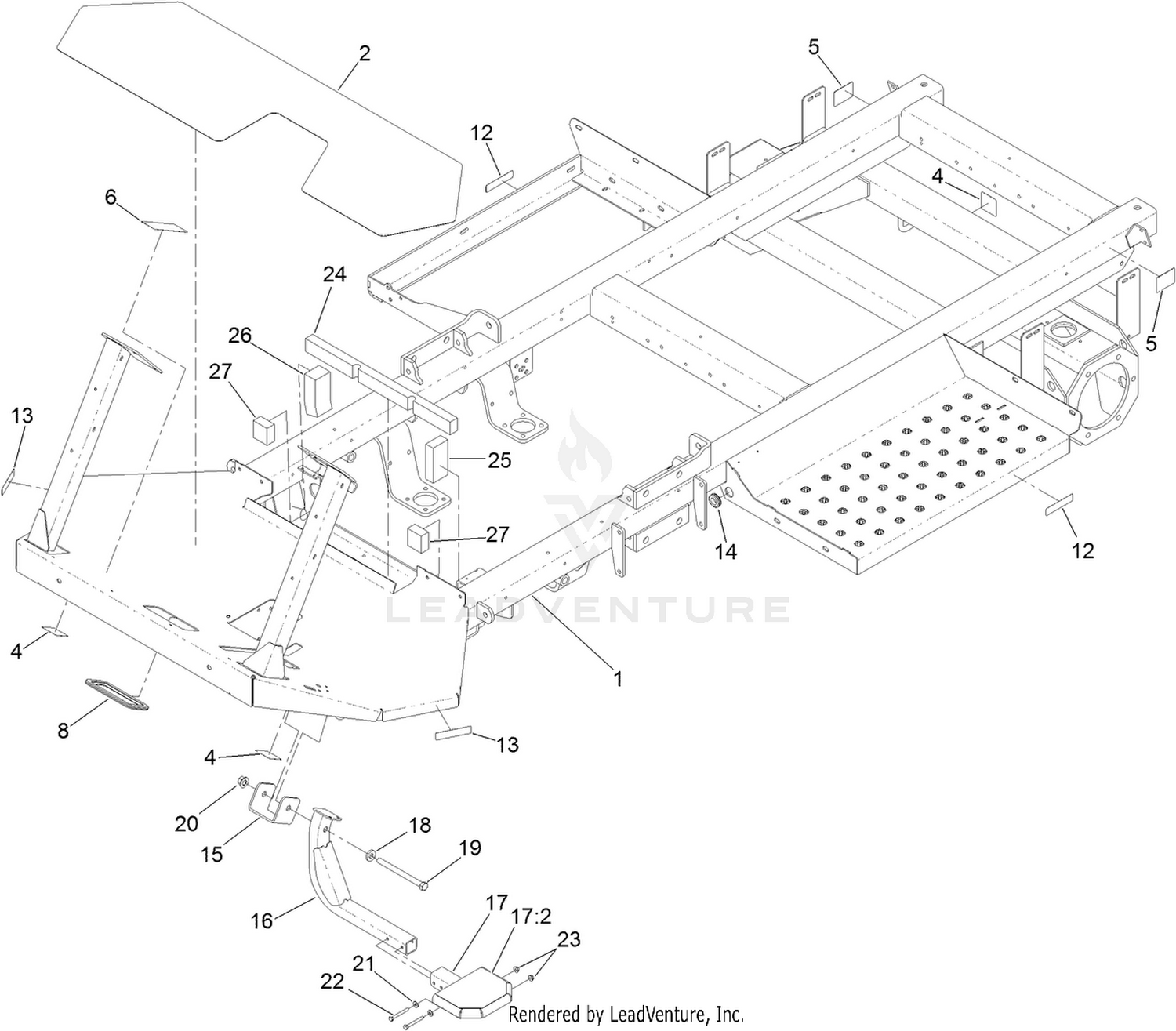

Frame and Step Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-7070-03 | FRAME Price: $5,284.39 |
| 2 | 104-8863 | TREAD-FLOOR Price: $54.94 |
| 4 | 120-0623 | DECAL-TIE DOWN, TOWING Price: $4.85 |
| 5 | 107-8667 | DECAL-JACKING Price: $14.57 |
| 6 | 107-8724 | DECAL-TRACTION Price: $18.74 |
| 8 | 119-0599 | TRIM-SEAL Price: $19.38 |
| 12 | 107-8732 | DECAL-TORQUE (CE) Price: $13.00 |
| 13 | 107-8731 | DECAL-TORQUE (CE) Price: $13.00 |
| 14 | 240-6 | GROMMET-RUBBER Price: $15.80 |
| 15 | 127-2928-03 | BRACKET-SPACER, STEP Price: $17.96 |
| 16 | 127-2929-03 | MOUNT-STEP, LH Price: $243.43 |
| 17 | 130-7349 | STEP-PAD Price: $100.95 |
| 18 | 107-3395 | WASHER-HARDENED Price: $1.49 |
| 19 | 325-20 | SCREW-HH Price: $6.29 |
| 20 | 99-5107 | NUT-LOCK Price: $1.77 |
| 21 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 22 | 321-50 | SCREW-HH Price: $1.49 |
| 23 | 32128-33 | NUT-HF Price: $0.25 |
| 24 | 131-5751 | FOAM-SEAL Price: $14.28 |
| 25 | 131-5752 | FOAM-SEAL Price: $5.03 |
| 26 | 131-5753 | FOAM-SEAL Price: $7.08 |
