Cutting Equipment

Cutting Equipment

Parts (29)

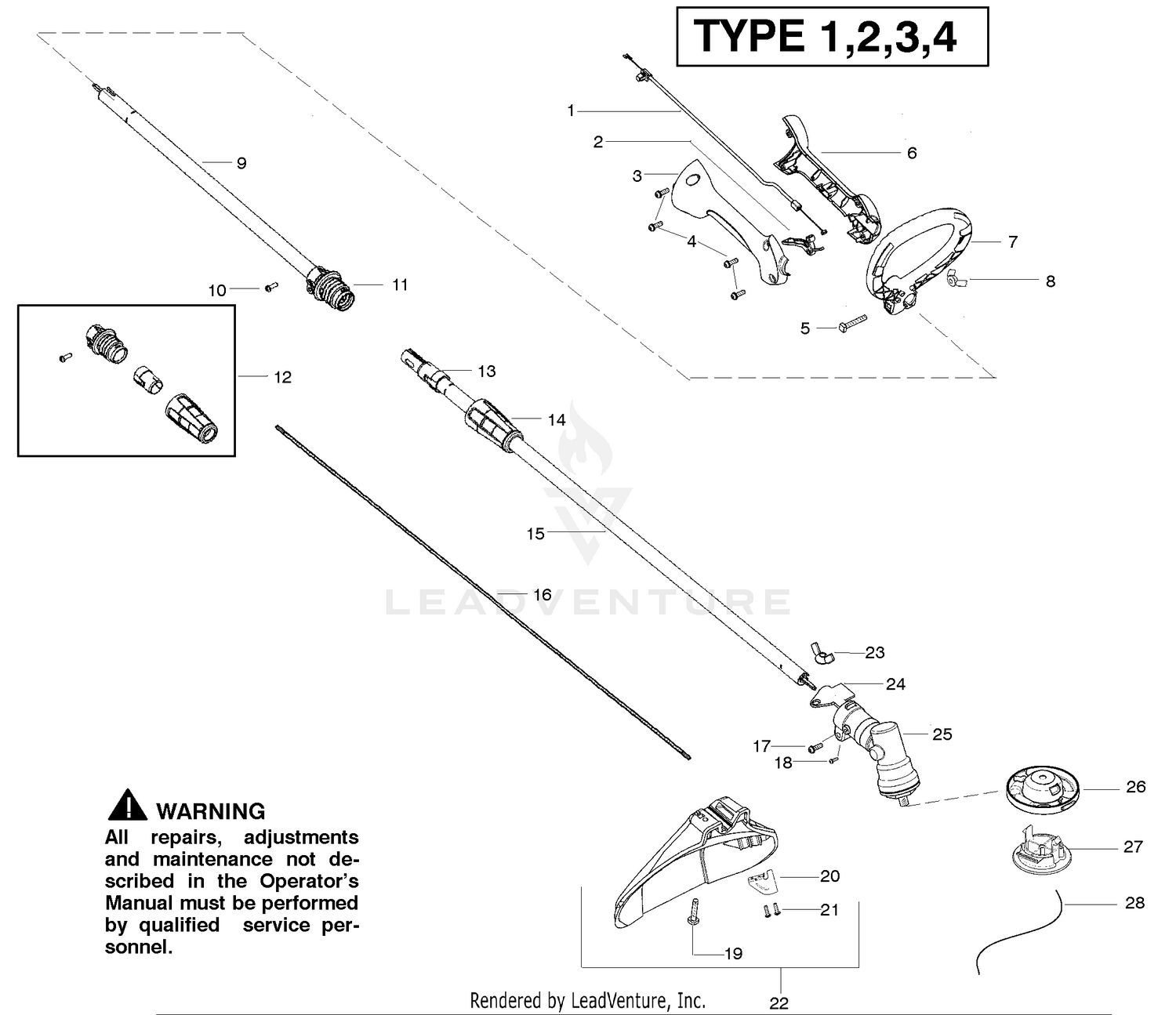

RefPart NumberDescription
1 530057991 Assy-Throttle Cable Price: $8.99
2 530058000 Trigger Price: $2.99
3 108-4213 BRACKET-HOC, GROOMER (LH) Price: $103.51
3 530057582 Throttle Hsg. (Right) Price: $7.99
4 108-4214 BRACKET-HOC, GROOMER (RH) Price: $103.51
4 530015880 Screw-Throttle Hsg. Price: $1.99
5 106-3925 SHIM-ROLLER (0.25) Price: $5.22
5 530015821 Bolt-Handle/Shield Price: $1.99
6 106-9758 SCREW-CARR Price: $2.99
6 530057581 Throttle Hsg. (Left) Price: $7.99
7 104-8300 NUT-HF, NI Price: $0.39
8 112-7451 SCREW-TAP Price: $2.17
8 530091373 Nut This part replaces 530016152. Price: $1.99
9 48-9220 WASHER-PLAIN Price: $0.87
10 104-8301 NUT-HF, NI Price: $1.09
10 530015886 Screw Price: $1.99
11 322-16 SCREW-HH Price: $3.39
16 545206701 Shaft- Flex Price: $6.99
17 530016014 Screw Price: $1.99
18 530016224 Screw- Alignment Price: $1.99
19 530015820 Bolt Price: $1.99
20 530052285 Line Limiter Price: $1.99
21 530015957 Screw This part replaces 530015966. Price: $1.99
23 530091373 Nut This part replaces 530016152. Price: $1.99
24 530096067 Bracket-Shield Price: $2.99
25 530096068 Assy-Gearbox Price: $34.99
26 545202401 Head- Fixed Line Price: $17.99
27 545202501 Cap- Fixed line Price: $3.99
28 545214501 Line .095 round (5 pcs) Price: $2.99
