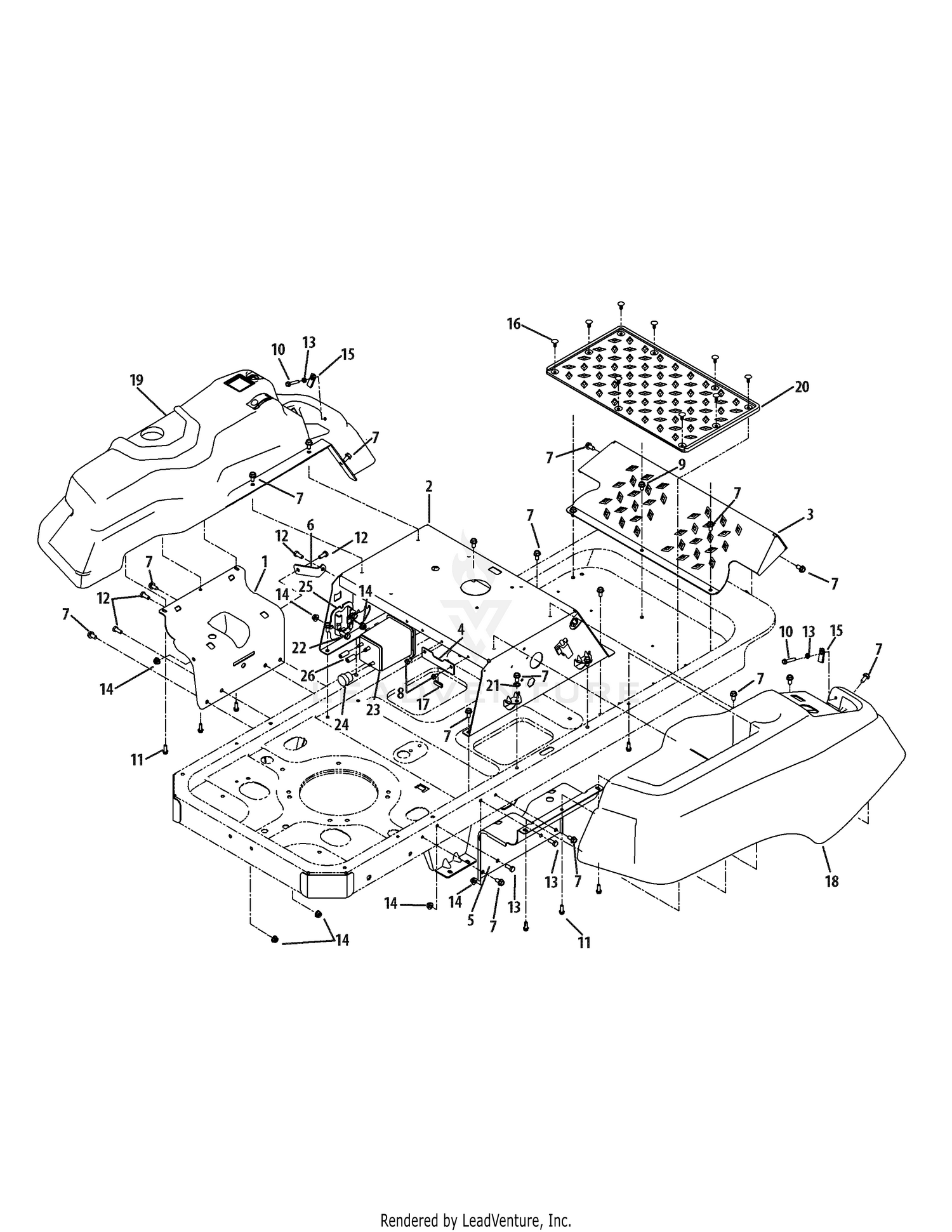

| Ref | Part Number | Description |
|---|
| 1 |
603-04564-4033 |
CONSOLE BRACKET (LH) (FLINT MICA) Not Available Price: |
| 2 |
603-04663-0638 |
SEAT FRAME ASSEMBLY (MTD RED) Not Available Price: |
| 3 |
703-05373B-0637 |
FOOT REST BRACKET(POWDER BLACK) Not Available Price: |
| 4 |
703-05894-0637 |
Battery Hold-Down Bracket Price: $26.19 |
| 5 |
703-06451-4033 |
CONSOLE BRACKET (RH) (FLINT MICA) Not Available Price: |
| 6 |
703-06623-0637 |
SUPPORT BRACKET Not Available Price: |
| 7 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 8 |
710-0599 |
Hex Washer Screw, 1/4-20 x .500 Price: $3.86 |
| 9 |
710-0604A |
Hex Washer Screw, 5/16-18 x .625 Price: $3.96 |
| 10 |
710-0778 |
Hex Washer Screw, 1/4-20 x 1.500 Price: $3.90 |
| 11 |
710-0895 |
Hex Washer Screw, 1/4-15 x .750 Price: $5.82 |
| 12 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 13 |
912-0298 |
Jam Nut, 1/4-20 Price: $5.38 |
| 14 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 15 |
712-04092 |
Speed Nut, 1/4-20 Price: $5.04 |
| 16 |
726-3046 |
Ratchet Clip Price: $3.71 |
| 17 |
731-0511 |
Trim Strip Price: $3.29 |
| 18 |
731-04663D |
CONSOLE (RH) Not Available Price: |
| 19 |
731-04662E |
CONSOLE (LH) Not Available Price: |
| 20 |
735-04082C |
Foot Pad This part replaces 735-04082. Price: $44.77 |
| 21 |
736-0148 |
Lock Washer, 3/8 Price: $3.19 |
