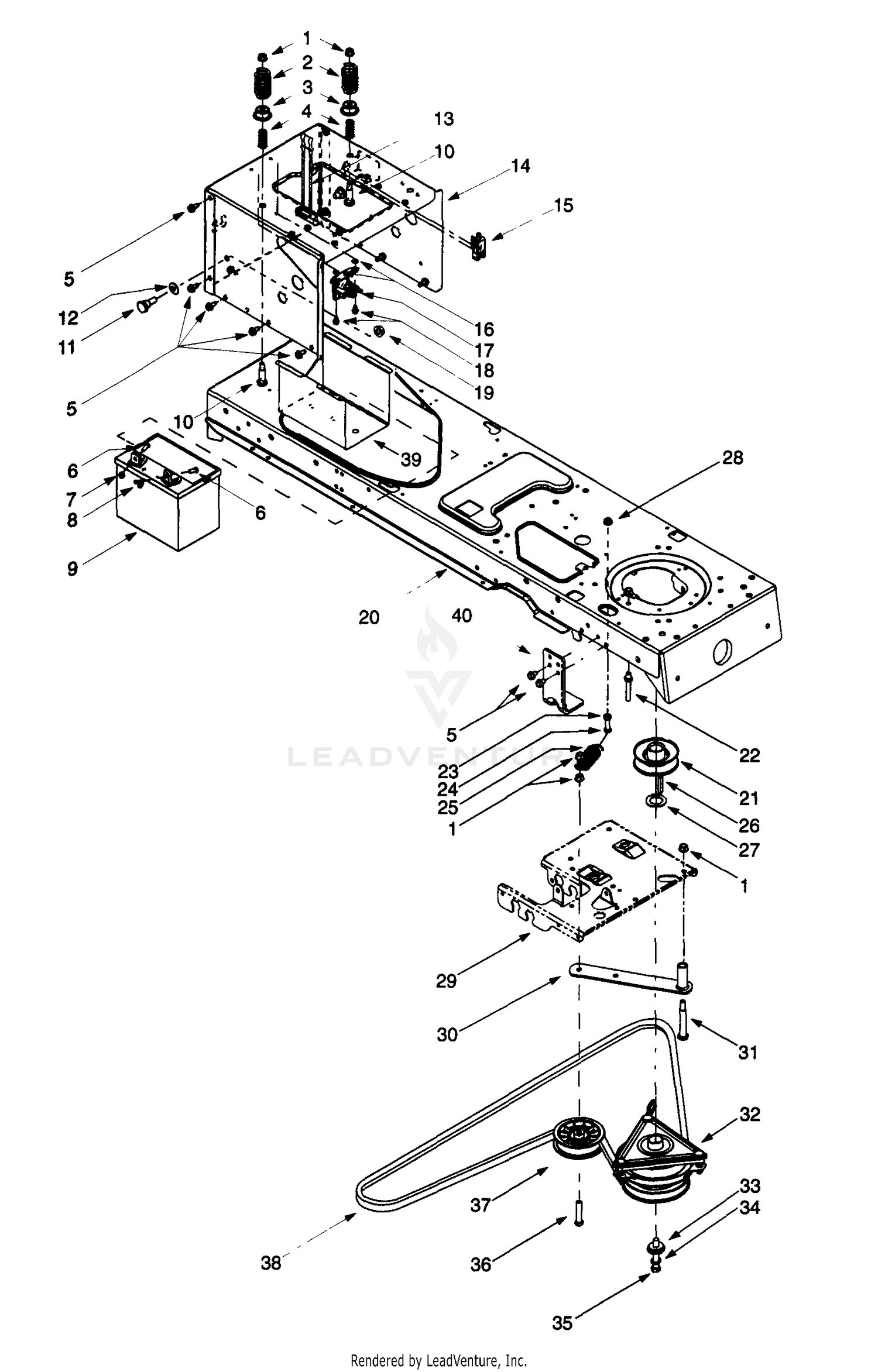

| Ref | Part Number | Description |
|---|
| 1 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 2 |
732-0735A |
Compression Spacer, 1.314 x 2.55 This part replaces 732-0735. Price: $27.35 |
| 3 |
783-0733 |
SPACER CUP Not Available Price: |
| 4 |
732-0956 |
COMPRESSION SPRING Not Available Price: |
| 5 |
710-0604A |
Self Tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 6 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 7 |
712-0271 |
Hex Sems Nut, 1/4-20 Price: $3.78 |
| 8 |
712-3044 |
NUT, 1/4 WING Not Available Price: |
| 9 |
925-1707D |
BATTERY Not Available This part replaces 725-1706. Price: |
| 10 |
738-1014 |
Shoulder Screw, .5 x 1.25, 3/8-16 Price: $3.58 |
| 11 |
738-1020 |
Shoulder Screw, .625 x .5, 7/16-20 Price: $6.88 |
| 12 |
736-0407 |
Bell Washer, .45 x 1.0 x .062 Price: $3.64 |
| 13 |
723-0444 |
BATTERY STRAP Not Available Price: |
| 14 |
783-0668 |
HITCH PLATE Not Available Price: |
| 15 |
925-1747 |
SEAT SWITCH This part replaces 725-1747. Price: $35.21 |
| 16 |
736-0222 |
Lock Washer, 1/4 Price: $5.07 |
| 17 |
925-1426A |
Solenoid, 12-Volt, 100 Amp This part replaces 725-1426. Price: $24.63 |
| 18 |
710-0599 |
Self Tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 19 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 20 |
683-0263A |
LOWER FRAME ASSEMBLY Not Available Price: |
| 21 |
756-0639A |
Engine Pulley, 3.56 OD This part replaces 756-0639. Price: $71.36 |
| 22 |
711-0640 |
Stud, 3/8-16 x 2.68 Price: $7.03 |
| 23 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 24 |
710-3180 |
Hex Cap Screw, 5/16-18 x 1.75 (Grade 5) Price: $4.93 |
| 25 |
732-0978 |
Extension Spring, 1.2 OD x 3.638 Not Available Price: |
| 26 |
714-0118 |
Square Key, 1/4 x 1.5 Price: $6.06 |
| 27 |
736-0277 |
Flat Washer, 1.03 x 1.62 x .095 Price: $3.90 |
| 28 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 29 |
783-04612-0637 |
Steering Support Bracket This part replaces 783-0653A. Price: $78.74 |
| 31 |
938-3056 |
Shoulder Screw, 1/2 Dia x 2.50 This part replaces 738-3056. Price: $8.53 |
| 32 |
917-1708 |
Electric PTO Clutch This part replaces 717-1708. Price: $545.53 |
| 33 |
938-0785 |
Shoulder Spacer, 1.38 x .445 x .36 This part replaces 738-0785. Price: $24.12 |
| 34 |
736-0171 |
Lock Washer, 7/16 Price: $3.86 |
| 35 |
710-3157A |
Screw, 7/16-20 x 3.25 This part replaces 710-3157. Price: $9.67 |
| 36 |
710-3011 |
Hex Cap Screw, 3/8-16 x 2.25 (Grade 5) Price: $6.49 |
| 37 |
756-0627D |
Idler Pulley 3.50 dia. This part replaces 7560627. Price: $28.58 |
| 39 |
783-0349 |
BATTERY TRAY Not Available Price: |
