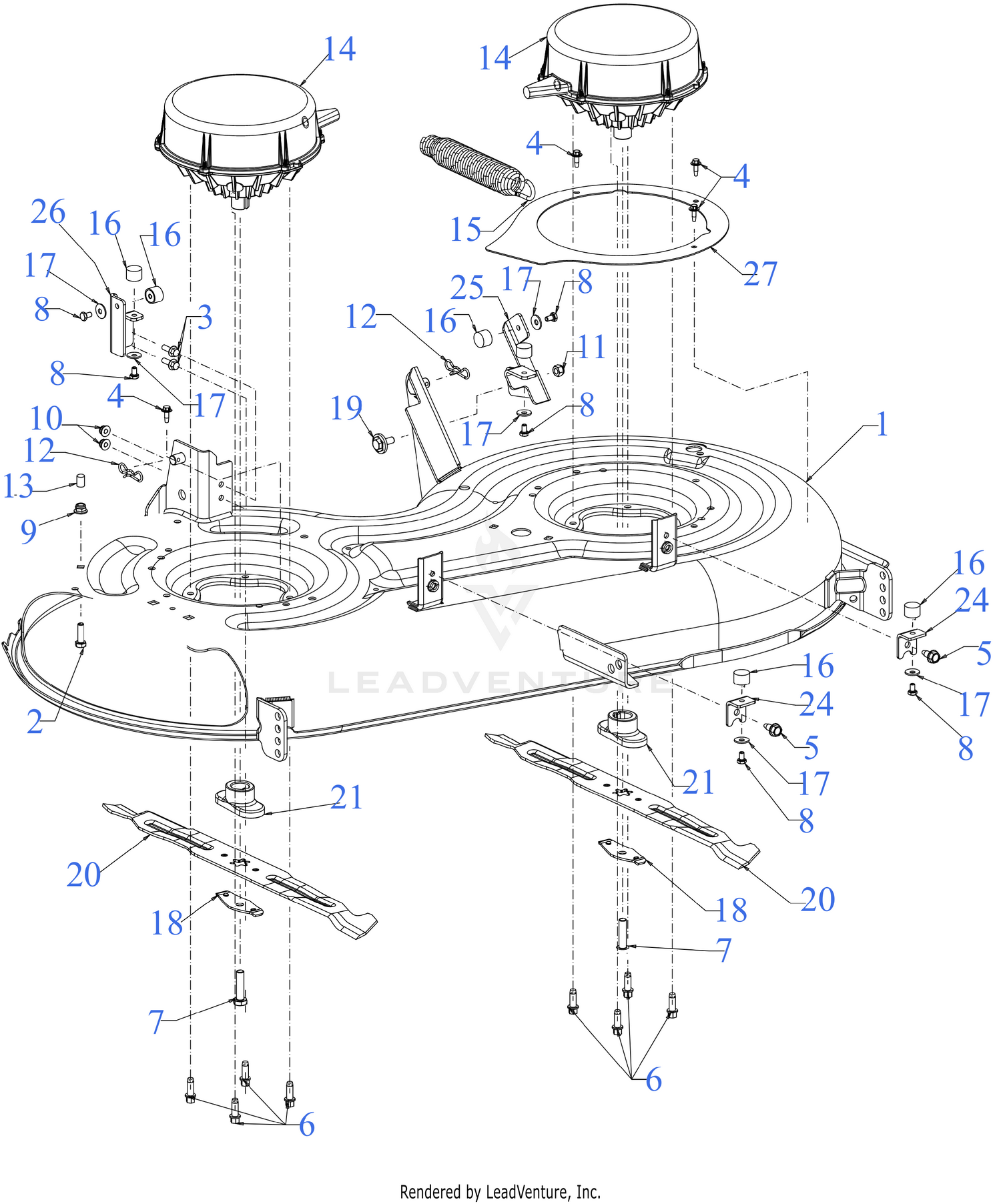

| Ref | Part Number | Description |
|---|
| 2 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 3 |
710-04666 |
SCREW 1/4-20 x .75 GR5 Price: $6.04 |
| 4 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 5 |
710-06256 |
SCREW M8-1.25 x .750 Price: $2.72 |
| 6 |
710-06322 |
SCREW 5/16-18 x .875 Price: $4.55 |
| 7 |
710-1044 |
SCREW 3/8-24 x 1.50 GR8 Price: $3.48 |
| 8 |
710-3209 |
SCREW M6-1.0X10MM GR8.8 Price: $7.30 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 11 |
712-0411 |
HEX NUT Price: $3.71 |
| 12 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 13 |
720-05010 |
VINYL CAP Price: $3.70 |
| 15 |
732-05241A |
LIFT ASSIST SPRING (SMALL) Price: $18.42 |
| 16 |
735-04121 |
BUMPER Price: $3.21 |
| 17 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 18 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 19 |
738-04439 |
SHOULDER SCREW Price: $3.49 |
| 21 |
748-05185 |
BLADE ADAPTER (#6 x 1.19 W/STAR) Price: $14.07 |
