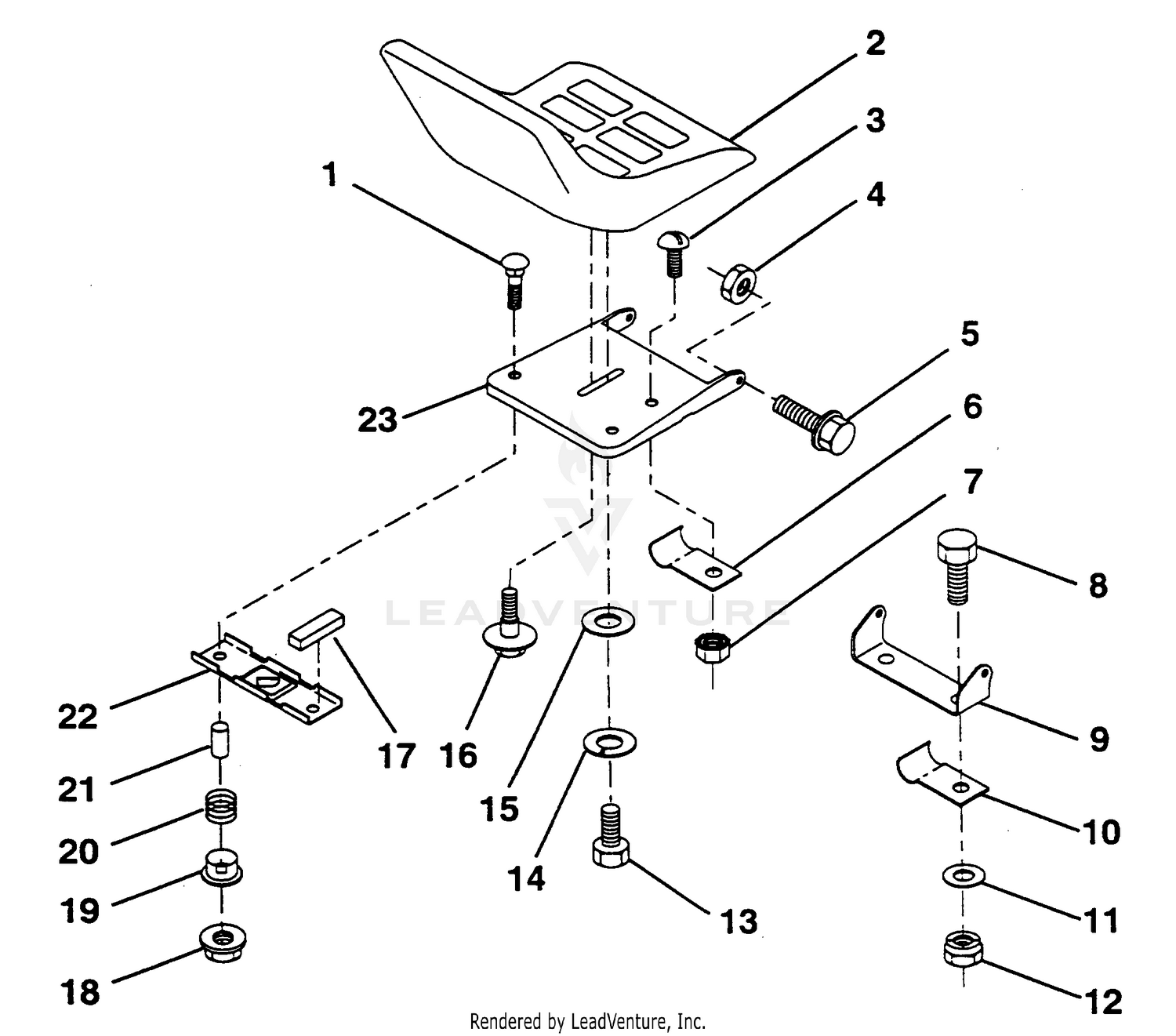

| Ref | Part Number | Description |
|---|
| 1 |
3250-20 |
SCREW-PPH Price: $5.39 |
| 1 |
872050411 |
Bolt, Carriage 1/4-20 x 1-3/8 Price: $2.99 |
| 2 |
3256-67 |
WASHER Price: $0.49 |
| 2 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532127427. Price: $142.99 |
| 3 |
86-1840 |
DISCONTINUED Price: Call Us |
| 3 |
874641008 |
Screw, Slotted Pan Head #10-32 x 1/2 Price: $2.99 |
| 4 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 4 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 5 |
532139888 |
Bolt Shoulder 5/16-18 Type T.T.T.R. This part replaces 532105529. Price: $2.99 |
| 5 |
86-1900-03 |
DISCONTINUED Price: Call Us |
| 6 |
532124967 |
Clip, Insulated Price: $5.46 |
| 6 |
86-1870 |
DISCONTINUED Price: Call Us |
| 7 |
86-1860 |
DISCONTINUED Price: Call Us |
| 7 |
873161000 |
This part replaces 873951000. Price: $1.99 |
| 8 |
86-1880 |
COVER-CENTER, LH Price: $257.23 |
| 8 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 874760612. Price: $3.99 |
| 9 |
532126656 |
Bracket, Pivot Seat Price: $5.46 |
| 9 |
86-1850 |
COVER-DECK, LH Price: $303.18 |
| 10 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 10 |
532126471 |
Clip, Insulated Price: $2.99 |
| 11 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 11 |
86-1920 |
SPRING-TORSION Price: $25.52 |
| 12 |
32128-20 |
NUT-HF Price: $0.99 |
| 12 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 13 |
323-15 |
SCREW-HH Price: $1.53 |
| 13 |
871110814 |
BOLT.HEX.BLACK This part replaces 874780814. Price: $3.99 |
| 14 |
810040800 |
Washer, Lock Hvy Helical Spring Price: $3.99 |
| 14 |
86-1890-03 |
HINGE Price: $5.75 |
| 15 |
819171912 |
Washer, 17/32 x 1-3/16 x 12 Ga. Price: $3.99 |
| 15 |
86-0790 |
INSERT-COVER Price: $6.89 |
| 16 |
532127018 |
Bolt, Shoulder Price: $3.99 |
| 16 |
86-0770 |
DECAL-QUADFLOAT Price: $62.08 |
| 17 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 17 |
532121251 |
Strip, Foam Price: $5.46 |
| 18 |
86-2660-01 |
STOP-COVER Price: $25.82 |
| 18 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 19 |
532121248 |
Bushing, Snap Price: $3.99 |
| 20 |
532121250 |
Spring, Compression Price: $3.99 |
| 21 |
532134300 |
Spacer, Split 28 Id. x .96 Lg. Price: $3.99 |
| 22 |
532174648 |
Bracket Mounting Switch This part replaces 532121246. Price: $4.99 |
