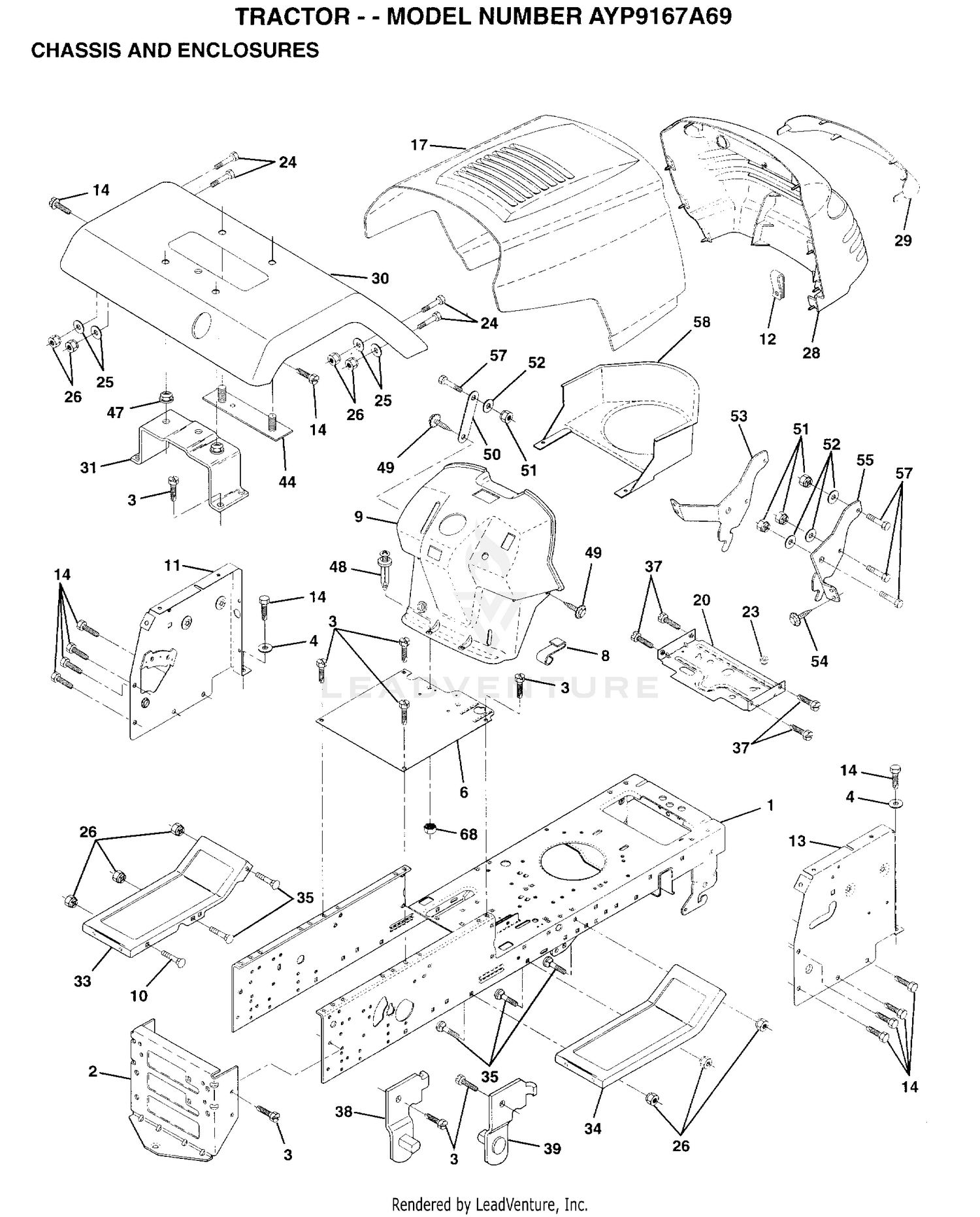

| Ref | Part Number | Description |
|---|
| 1 |
105-7150-03 |
PEDAL ASM Price: $173.85 |
| 1 |
145501 |
CHASSIS.WLD.11GA Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 2 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 4 |
256-116 |
BUSHING-FLANGE Price: $3.52 |
| 6 |
145206 |
SUB= 145206X431 Price: Call Us |
| 6 |
3220-3 |
NUT-HJ Price: $0.28 |
| 7 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 8 |
32141-36 |
SCREW-ADJUSTMENT, LEVEL Price: $12.75 |
| 9 |
140621 |
SUB= 142466 Price: Call Us |
| 9 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 10 |
92-5534 |
SHAFT-PEDAL, TRACTION Price: $55.59 |
| 11 |
146964 |
PANEL.DASH.LH.A Price: Call Us |
| 11 |
5-7570 |
WASHER-FLAT Price: $6.19 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 13 |
146960 |
PANEL.DASH.RH. Price: Call Us |
| 13 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 15 |
92-5537 |
PIN-PEDAL, TRACTION Price: $41.17 |
| 16 |
3217-6 |
NUT-HEX Price: $1.19 |
| 17 |
139394X418 |
HOOD.STL.PRV.LB Price: Call Us |
| 19 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 20 |
145210 |
PLATE.MTG.BTRY.TK Price: Call Us |
| 21 |
32128-56 |
NUT-HF Price: $1.09 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 25 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
92-5721 |
LINK-TRACTION Price: $10.99 |
| 28 |
145502 |
GRILL.P/L.EURO. Price: Call Us |
| 28 |
256-219 |
BUSHING Price: $7.59 |
| 29 |
146654 |
LENS.EURO.W/DECAL Price: Call Us |
| 29 |
92-5094-03 |
ARM-TRACTION Price: $117.79 |
| 30 |
140002X418 |
FENDER.YT/GT Price: Call Us |
| 30 |
92-5075 |
SHAFT-PEDAL, TRACTION Price: $41.09 |
| 31 |
137113 |
BRKT.ASM.FENDER Price: Call Us |
| 31 |
32128-49 |
NUT-HHF Price: $1.04 |
| 32 |
92-5532 |
LINK-TRACTION Price: $75.52 |
| 33 |
145244X418 |
FOOTREST.LT.LT/GT Price: Call Us |
| 33 |
92-5093-03 |
ARM-PIVOT ASM Price: $129.11 |
| 34 |
145243X418 |
FOOTREST.RH.LT/GT Price: Call Us |
| 34 |
323-9 |
SCREW-HH Price: $1.29 |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 44 |
140675 |
STRAP ASM FENDER Price: Call Us |
| 47 |
105531X |
NUT-PUSH YT Price: Call Us |
| 48 |
138096 |
RIVET.PUSH.PLATE Price: Call Us |
| 49 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 50 |
142779 |
BRACE SUPT DASH Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
