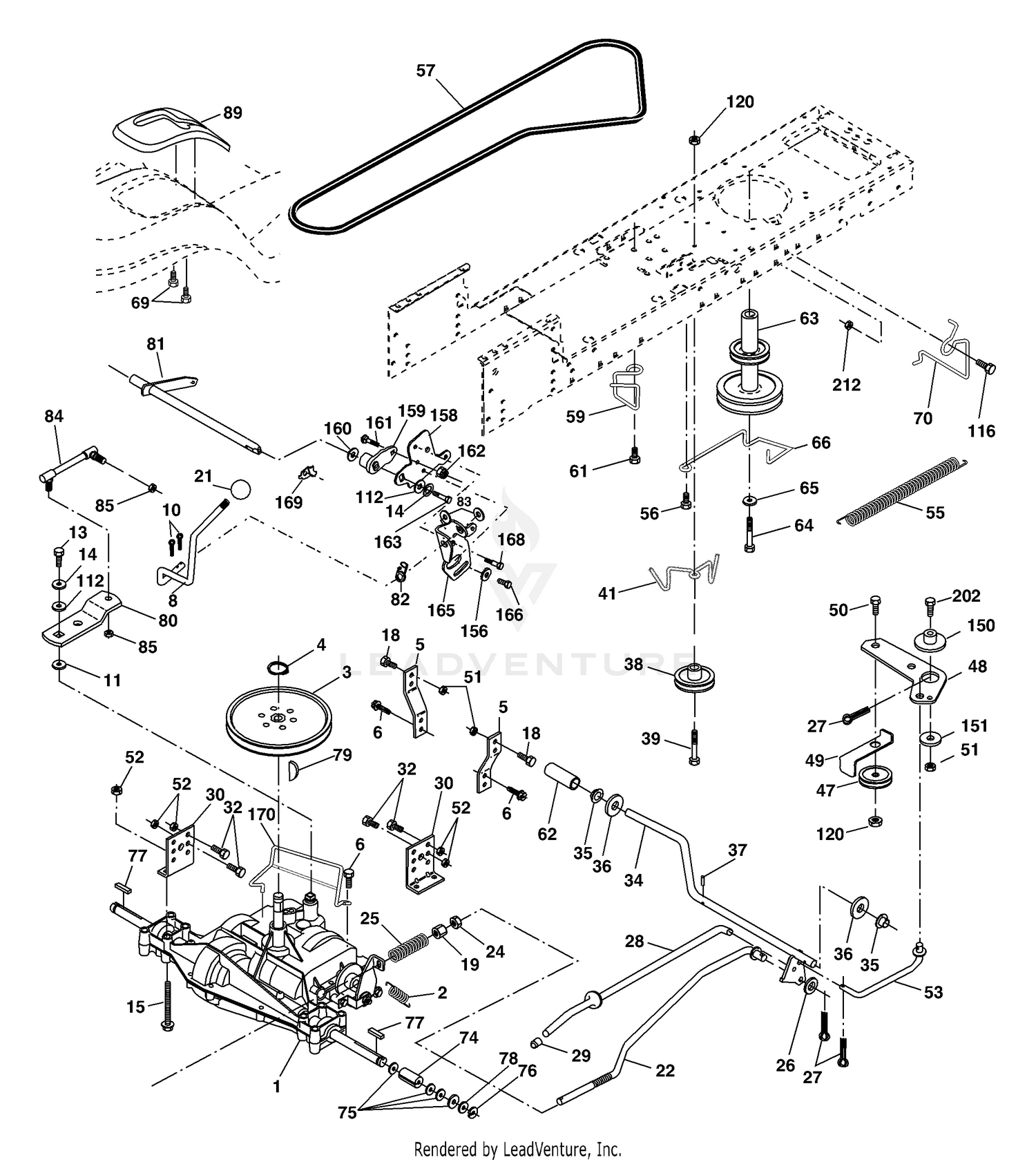

| Ref | Part Number | Description |
|---|
| 1 |
106-0385 |
SEAL KIT Price: $230.04 |
| 2 |
69-3770 |
SHIM Price: $51.82 |
| 3 |
107-4351 |
SPRING-RELIEF, CHARGE Price: $10.09 |
| 4 |
69-3800 |
VALVE Price: $39.31 |
| 5 |
107-4380 |
CPRV PLUG ASM Price: $52.04 |
| 6 |
69-3130 |
PLUG This part replaces 107-4352. Price: $62.97 |
| 7 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 8 |
165866 |
Rod Shift Price: Call Us |
| 8 |
69-3370 |
BEARING-NEEDLE Price: $49.67 |
| 9 |
69-3230 |
PIN-SPRING Price: $24.22 |
| 10 |
69-3960 |
SCREW This part replaces 107-4353. Price: $5.90 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 CAD Price: Call Us |
| 11 |
75-0460 |
BEARING-BALL Price: $175.71 |
| 12 |
69-3200 |
RING-RETAINING Price: $20.29 |
| 13 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
94-2878 |
PIN Price: $9.76 |
| 15 |
69-3500 |
BEARING-SLEEVE Price: $472.61 |
| 15 |
74490544 |
Bolt, Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 16 |
69-3450 |
PIN Price: $3.33 |
| 16 |
73800500 |
Nut Lock Hex W/Ins 5/16-18 unc Price: Call Us |
| 18 |
69-3540 |
COVER-GEROTOR Price: $538.45 |
| 19 |
73800600 |
Nut Lock Hex W/Wsh 3/8-16 unc Price: Call Us |
| 19 |
92-1352 |
PLUG Price: $30.00 |
| 20 |
107-4354 |
COVER-FRONT Price: $1,302.74 |
| 21 |
140845 |
Knob, Round 1/2-13 Price: Call Us |
| 21 |
76-4590 |
SCREW Price: $5.43 |
| 22 |
169498 |
Rod, Brake Hydro Price: Call Us |
| 22 |
69-3650 |
PISTON-SERVO Price: $852.55 |
| 23 |
107-4355 |
SWASHPLATE ASM Price: $1,223.29 |
| 24 |
73350600 |
Nut Price: Call Us |
| 24 |
AU193488A1 |
JOURNAL This part replaces 107-4356. Price: $57.15 |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 25 |
107-4357 |
SHAFT-PUMP Price: $1,045.25 |
| 26 |
19131316 |
Washer Price: Call Us |
| 26 |
93-9320 |
PLATE-VALVE, LH This part replaces 107-4358. Price: $466.03 |
| 27 |
69-3390 |
GEROTOR ASM Price: $542.68 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 28 |
69-3550 |
PIN Price: $3.66 |
| 29 |
69-3430 |
KEY-WOODRUFF Price: $4.89 |
| 29 |
71673 |
Cap, Parking Brake Price: Call Us |
| 30 |
169592 |
Bracket, Transaxle Price: Call Us |
| 30 |
94-9414 |
ADAPTER-SUCTION Price: $211.04 |
| 31 |
94-9413 |
SCREW Price: $18.13 |
| 32 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc x 3/4 Price: Call Us |
| 33 |
69-4040 |
STOP Price: $162.69 |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 34 |
69-3640 |
COVER-SERVO Price: $389.32 |
| 35 |
107-4359 |
GUIDE-SPRING Price: $44.64 |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 36 |
19211616 |
Washer Price: Call Us |
| 36 |
69-3680 |
STOP Price: $65.27 |
| 37 |
1572H |
Pin, Roll Price: Call Us |
| 37 |
69-3670 |
SPRING-SERVO Price: $194.02 |
| 38 |
107-4360 |
SCREW Price: $53.10 |
| 38 |
179114 |
Pulley, Composite Price: Call Us |
| 39 |
69-3580 |
GUIDE-SPRING Price: $142.64 |
| 39 |
72110622 |
Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5 Price: Call Us |
| 40 |
69-3590 |
RING-RETAINING Price: $4.15 |
| 41 |
175556 |
Keeper, Belt Idler Price: Call Us |
| 41 |
69-3600 |
NUT-HEX Price: $1.89 |
| 42 |
107-4361 |
NUT Price: $4.00 |
| 43 |
107-4362 |
SCREW Price: $10.69 |
| 44 |
69-3140 |
BRACKET Price: $30.30 |
| 45 |
107-4363 |
GASKET-COVER Price: $33.08 |
| 46 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 47 |
127783 |
Pulley, Idler, V-Groove Price: Call Us |
| 47 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 48 |
107-4364 |
BYPASS VALVE ASM Price: $166.69 |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 49 |
69-3730 |
RELIEF VALVE KIT Price: $226.03 |
| 50 |
104-0168 |
BALL SWITCH KIT This part replaces 95-7034. Price: $87.16 |
| 50 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
107-4365 |
COVER-MOUNTING Price: $326.25 |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 52 |
107-4366 |
GASKET-PLATE, MOUNTING Price: $25.49 |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 53 |
107-4367 |
PLATE-MOUNTING Price: $366.98 |
| 54 |
107-4368 |
SCREW Price: $5.82 |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 55 |
107-4369 |
GASKET-COVER, MOUNTING Price: $30.03 |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 56 |
69-3860 |
SCREW Price: $3.87 |
| 57 |
107-4370 |
PLUG-EXPANSION Price: $6.00 |
| 57 |
140294 |
V-Belt, Ground Drive Price: Call Us |
| 58 |
107-4371 |
SPACER-SPRING Price: $18.92 |
| 59 |
169691 |
Keeper, Center Span Price: Call Us |
| 59 |
69-3860 |
SCREW Price: $3.87 |
| 60 |
107-4372 |
NUT-LOCK Price: $1.51 |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 61 |
69-3880 |
SPRING-RETURN, NEUTRAL Price: $64.49 |
| 62 |
107-4373 |
HANDLE-CONTROL Price: $78.34 |
| 62 |
8883R |
Cover, Pedal Price: Call Us |
| 63 |
175410 |
Pulley, Engine Price: Call Us |
| 63 |
69-3890 |
BRACKET-RETURN, NEUTRAL Price: $60.82 |
| 64 |
107-4374 |
WASHER-LOCK Price: $0.81 |
| 64 |
173937 |
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 65 |
107-4375 |
SPOOL BRACKET ASM Price: $857.43 |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 66 |
69-3530 |
ORIFICE PLUG ASM Price: $137.05 |
| 67 |
107-4376 |
SLEEVE ASM Price: $874.40 |
| 68 |
75-0160 |
PLUG-PIPE Price: $4.39 |
| 69 |
142432 |
Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc Price: Call Us |
| 69 |
69-3060 |
SCREW Price: $8.34 |
| 70 |
134683 |
Guide Belt Price: Call Us |
| 70 |
69-3410 |
ADAPTER-A, FLANGE Price: $516.81 |
| 71 |
107-4377 |
SEAL-A, PAD Price: $51.66 |
| 71 |
169183 |
Strap Torque Lh Hydro Price: Call Us |
| 72 |
107-4378 |
COVER Price: $94.82 |
| 73 |
169182 |
Strap Torque Rh Hydro Price: Call Us |
| 73 |
69-3400 |
SCREW Price: $1.29 |
| 74 |
107-4379 |
CYLINDER BLOCK KIT Price: $2,151.85 |
| 74 |
137057 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 75 |
69-3920 |
PISTON RING AND O-RING KIT Price: $181.90 |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 81 |
165596 |
Shaft Asm. Cross Hydro Price: Call Us |
| 82 |
165711 |
Spring Torsion T/A Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
169594 |
Link Transaxle Price: Call Us |
| 89 |
188309X428 |
Console, Shift Price: Call Us |
| 95 |
170201 |
Control Asm Bypass Hydro Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 116 |
72140608 |
Bolt RDHD SQNK 3/8-16 unc x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16 ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: Call Us |
| 164 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Lt Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8" ID Price: Call Us |
| 198 |
169593 |
Washer Nyl 7/8 ID x .105 Price: Call Us |
| 199 |
169612 |
Bolt Shoulder 5/16-18 unc Price: Call Us |
| 200 |
72140508 |
Bolt Rdhd Sqnk 5/16-18 unc x 1 Price: Call Us |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
