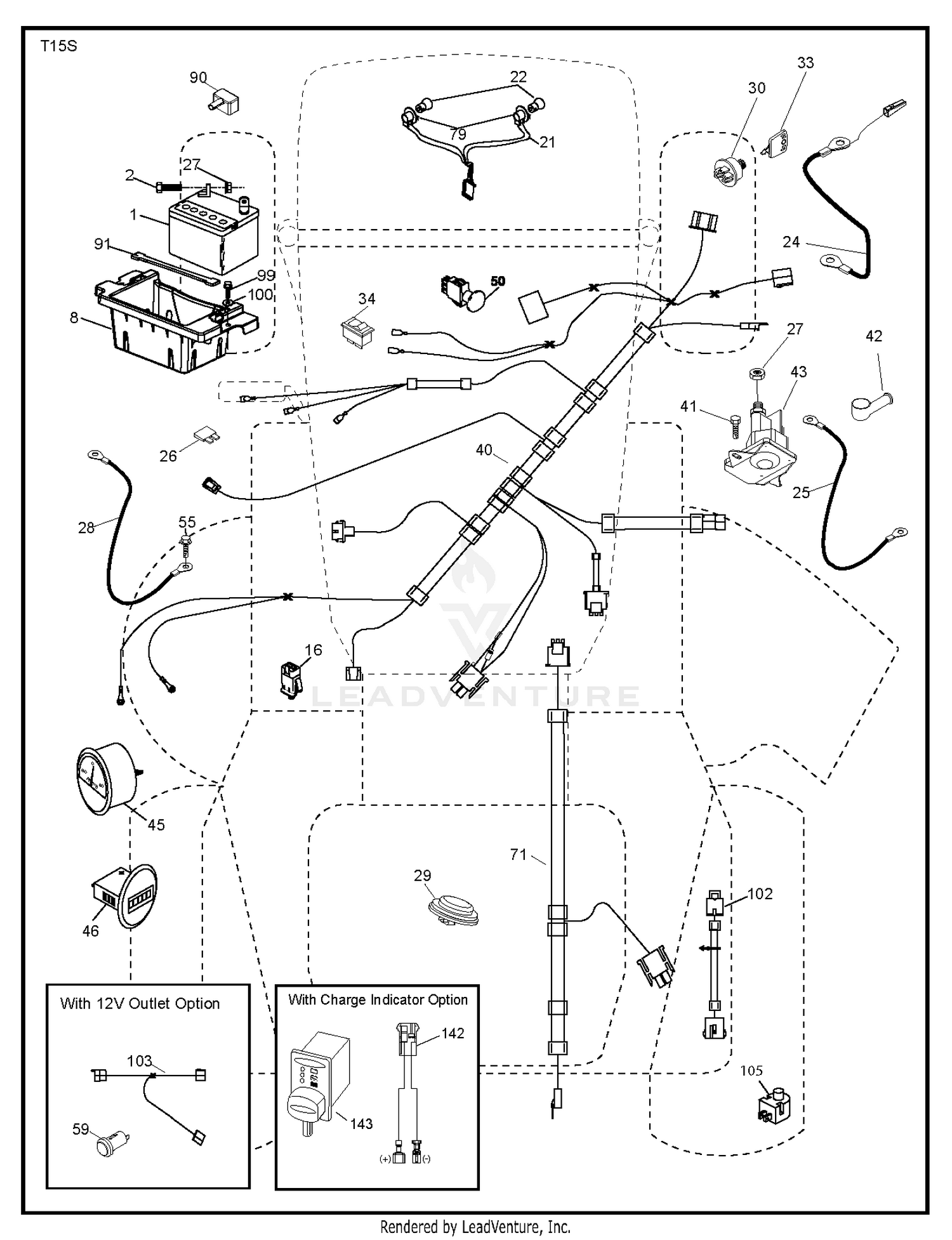

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 1 |
93-7836 |
DECAL-PEDAL, TRACTION This part replaces 27-7320. Price: $14.38 |
| 2 |
70-2200 |
DECAL Price: $5.09 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
66-6390 |
DECAL-CAUTION Price: $27.63 |
| 4 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 5 |
32128-21 |
NUT-HF Price: $0.39 |
| 6 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 7 |
3217-6 |
NUT-HEX Price: $1.19 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 10 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 11 |
32103-2 |
NUT-WING Price: $0.68 |
| 12 |
28-1280 |
DISCONTINUED Price: Call Us |
| 13 |
70-1180 |
DISCONTINUED Price: Call Us |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 16 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 18 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 19 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 20 |
92-7802 |
DECAL-INSTR., START This part replaces 43-4290. Price: $22.12 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 21 |
92-7800 |
BATTERY COVER ASM This part replaces 24-9740. Price: $65.49 |
| 22 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 24 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
2412-4 |
CLAMP-R Price: $4.22 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 31 |
49-2280 |
DECAL Price: $22.38 |
| 32 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 33 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 34 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 35 |
2412-74 |
R-CLAMP Price: $2.37 |
| 36 |
93-3183 |
TOOL BOX ASM This part replaces 38-4530. Price: $240.67 |
| 37 |
32128-20 |
NUT-HF Price: $0.99 |
| 38 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 39 |
32128-33 |
NUT-HF Price: $0.25 |
| 40 |
581583501 |
HARNESS.IGN.DASH.W/112V.PORT Price: $69.99 |
| 40 |
82-9970 |
DISCONTINUED Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 41 |
72-3690 |
DISCONTINUED Price: Call Us |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 42 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 43 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 44 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 45 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 45 |
529910801 |
AMMETER This part replaces 532425270. Price: $27.99 |
| 46 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 46 |
529910701 |
HOUR METER This part replaces 532425271. Price: $69.99 |
| 47 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 48 |
88-0070-01 |
PLATE-FLOOR This part replaces 88-0070. Price: $169.68 |
| 50 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532421747 |
HARNESS.PIGTAIL.12V.OUTLET. Price: $12.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
