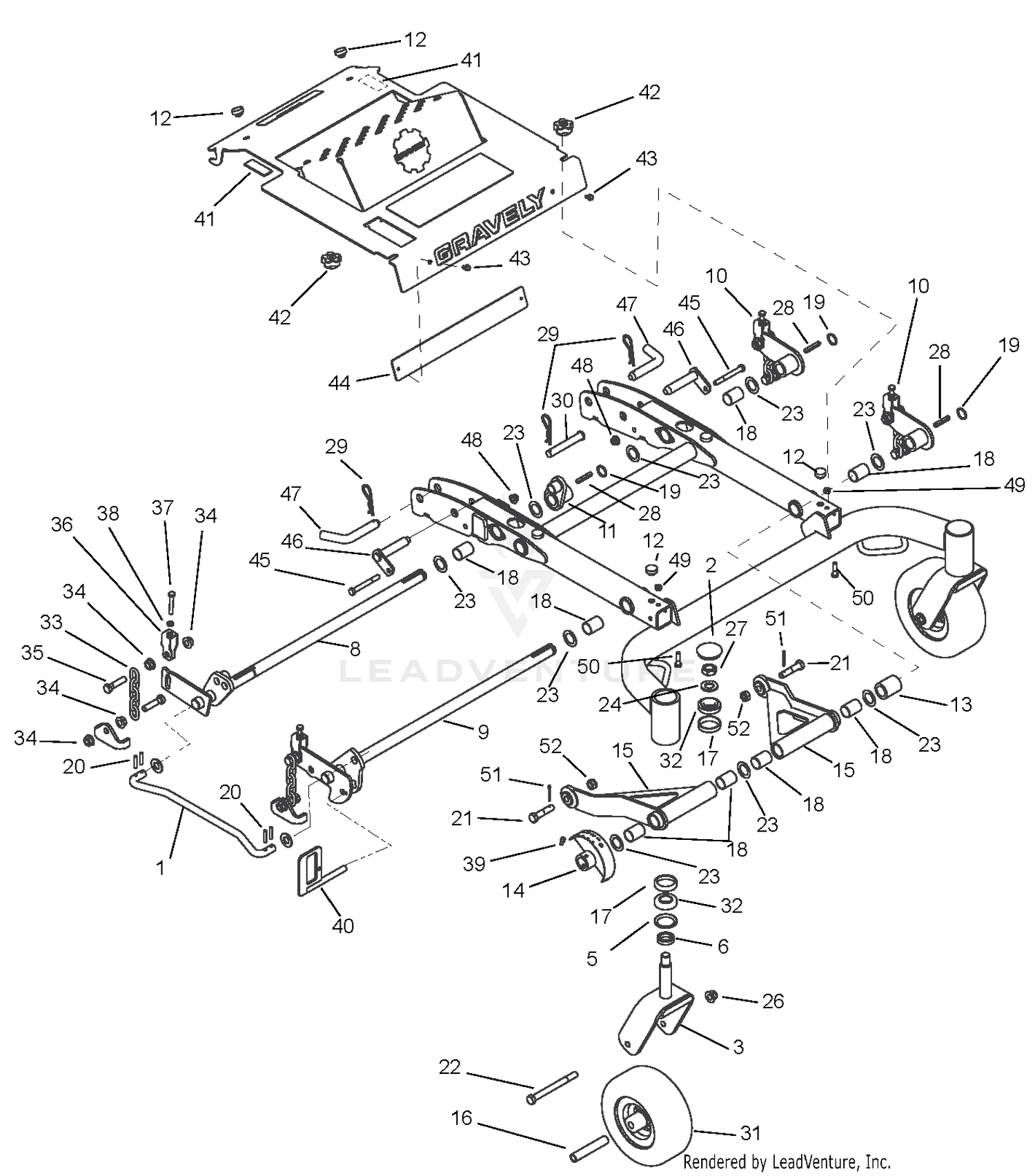

Carrier Frame

Carrier Frame

Parts (48)

RefPart NumberDescription
1 04063000 ROD-LIFT ASSIST 16.35" Price: $37.45
2 00456800 CAP, DUST Price: $16.45
5 00531400 BEARING SEAL 1.5 X 2 X .18 Price: $9.45
6 00531500 SPACER 1.005X1.5075X.375 Price: $7.45
7 04279653 WMT,52/60" CARRIER FOOT PLATE Price: $174.95
8 00594800 WMT,SHAFT,DECK LIFT Price: $232.95
9 00594900 WMT, SHAFT,DECK LIFT Price: $232.95
10 00608400 WMT, LIFT ARM Price: $101.95
11 00608500 WMT, MOWER LIFT TO CYL ARM Price: $101.95
12 00672800 BUMPER, RUBBER SNAP IN Price: $3.45
13 00677100 SPCR, 1.0ID X 1.5OD X 1.81 LNG Price: $30.45
14 00697253 CUT INDICATOR RED Price: $14.25
15 00698951 WMT - MOWER MOUNTING ARM Price: $234.95
16 05400008 BEARING .532 X .750 X 4.06 Price: $37.45
17 05407000 BRG-CUP1.980X.420 Price: $16.45
18 05500034 BSHG,1.00ID X 1.125OD X 1.50LG Price: $6.45
19 05707300 RG-RTNG-EXT 1.00X.078 Price: $2.95
20 05800001 PIN-ROLL .250X1.25 STNLESS STL Price: $2.95
21 05901929 BLT, HEX .50-13X2.00 G5 ZCC This part replaces 05959700. Price: $2.95
22 05901632 BLT,HEX .50-13X5.50 G5 ZCC This part replaces 05964100. Price: $6.45
23 06435300 WSHR-HDND-THRUST 1.00X1.55X.03 Price: $4.45
24 06401140 WSHR-FL-STL 0.812X1.469X0.134 ZCC This part replaces 06439000. Price: $1.45
25 06401118 WSHR, FLT .656X1.313X.095 ZCC This part replaces 06442800. Price: $2.45
26 06500810 NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45
27 06536900 NUT-JAM CTRLK .75-16 YWZC Price: $5.45
28 06601800 KEY-STR .25X1.75X.25 Price: $3.45
29 06714000 PIN-HAIR-INT .15X2.937 YWZC Price: $2.95
30 06800006 PIN, CLEVIS .625 X 4.0 Price: $8.45
31 07100040 WHEEL ASSEMBLY 9.00 X 3.50 Price: $173.45
32 05406900 BRG-CONE 1.0X.58 This part replaces 69000300. Price: $17.95
33 09284700 CHAIN, LINK Price: $5.45
34 06500003 NUT-SPNLK-FLG M12-1.75 YZ Price: $2.45
35 05900022 BLT, HEX M12-1.75X50 CLS8.8 YZ Price: $3.45
36 00442800 BRKT, DECK LEVELING Price: $8.45
37 05902003 BLT, HEX .31-18X2.00F G5 ZCC This part replaces 05980900. Price: $2.95
38 06500909 NUT-JAM .312-18 G2 ZCC This part replaces 06536100. Price: $0.95
39 05900127 SCR-SKH .25-20X.50 YZ EP80 Price: $3.45
41 00928300 TAPE-FOAM .12X1.00 VINYL Price: $0.95
42 07534800 KNOB-CLAMPING, .312-18 NYLOC Price: $3.45
43 07400122 SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45
44 03995751 BUMPER PLATE 2.00 X 16.50 -BLK Price: $12.45
45 05901817 BLT, HEX .38-16X3.25 G5 ZCC This part replaces 05961100. Price: $3.95
46 04306800 WLDMT,CARRIER FRAME MTG PIN Price: $45.95
47 04260400 PIN,BENT .75 DIA Price: $36.95
48 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
49 06500826 NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45
50 05901803 BLT, HEX .31-18X1.25 G5 ZCC This part replaces 05947500. Price: $2.45
51 06700212 PIN,CTR.12X1.25EXTPRSQCT ZC120 This part replaces 06712600. Price: $0.45
