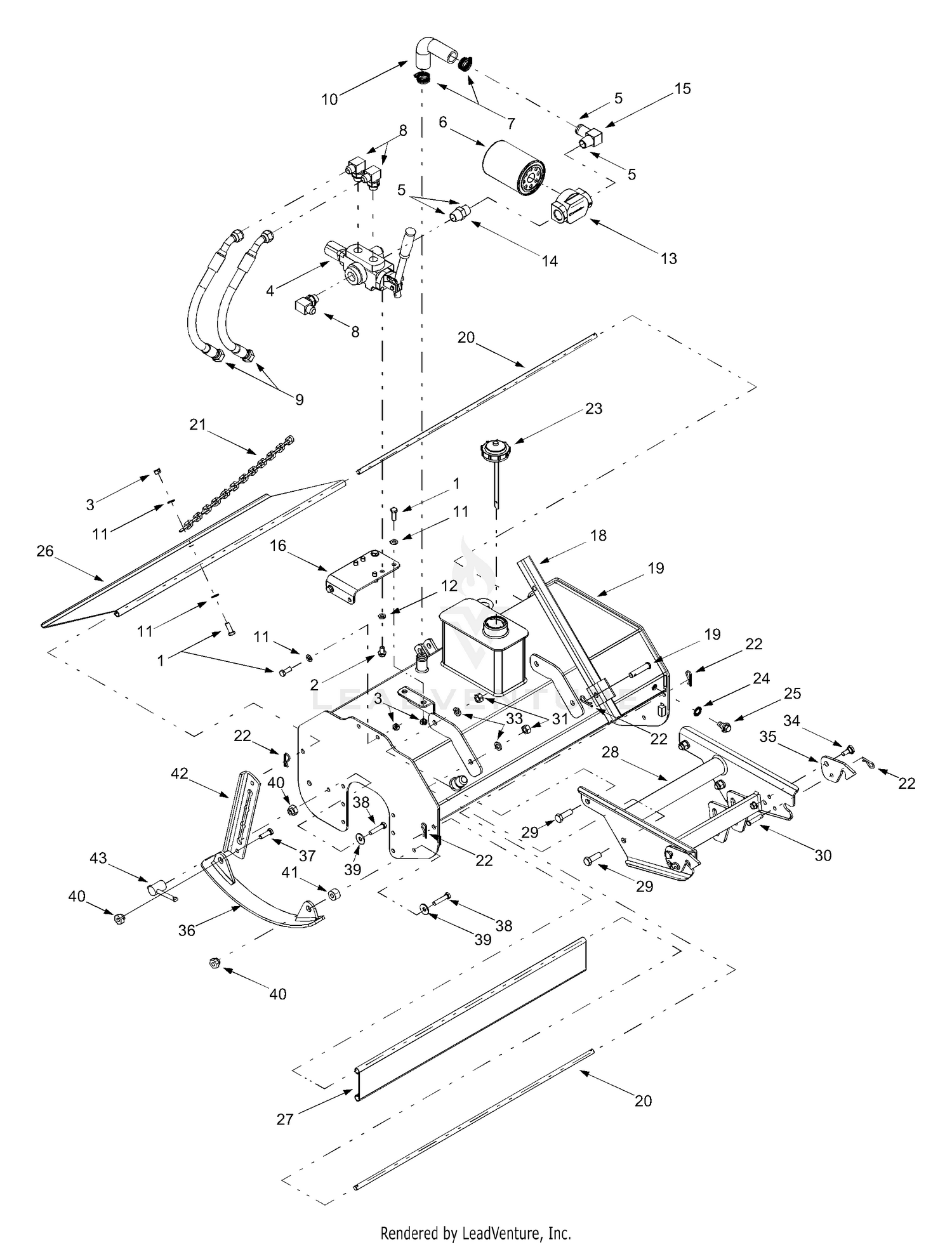

| Ref | Part Number | Description |
|---|
| 1 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 2 |
710-0870 |
Shoulder Screw, 3/8-16 x .625 Price: $5.44 |
| 3 |
712-3000 |
Hex Lock Nut, 3/8-16 Price: $3.90 |
| 4 |
918-0673 |
CONTROL VALVE W/HANDLE Not Available This part replaces 718-0673. Price: |
| 6 |
723P0405 |
FILTER ELEMENT (10 MICRON LFP-1652) This part replaces 723-0405. Price: $39.50 |
| 7 |
726-0132 |
Adjustable Hose Clamp Price: $13.50 |
| 9 |
727-0520 |
VALVE TO MOTOR HOSE Not Available Price: |
| 11 |
736-0185 |
Flat Washer, .375 x .738 x .063 Price: $3.43 |
| 12 |
736-0217 |
Lock Washer, 3/8 Price: $3.86 |
| 13 |
753-06643 |
Filter Housing This part replaces 737-0316. Price: $85.81 |
| 14 |
737-0338 |
HYDRO FITTING Not Available Price: |
| 16 |
786-0265-0637 |
VALVE MOUNTING BRACKET Not Available This part replaces 786-0265. Price: |
| 18 |
686-0155-0637 |
TILLER STAND (POWDER BLACK) Not Available This part replaces 686-0155. Price: |
| 19 |
686-0143 |
FRAME ASSEMBLY Not Available Price: |
| 19 |
711-0510 |
Clevis Pin, .50 x 2.0 Price: $10.38 |
| 20 |
711-1380 |
SHIELD PIVOT ROD Not Available Price: |
| 21 |
713-0490 |
TINE SHIELD CHAIN Not Available Price: |
| 22 |
714-0149B |
Internal Cotter Pin Price: $3.95 |
| 23 |
720-0315 |
CAP Not Available Price: |
| 24 |
921-0223 |
DRAIN PLUG SEAL Not Available This part replaces 721-0223. Price: |
| 25 |
738-0940 |
OIL DRAIN PLUG Not Available Price: |
| 26 |
786-0252 |
REAR TINE SHIELD Not Available Price: |
| 27 |
786-0274 |
FRONT TINE SHIELD Not Available Price: |
| 28 |
686-0142 |
HITCH LINK ASSEMBLY Not Available Price: |
| 29 |
710-3181 |
Hex Cap Screw, 1/2-13 x 1.5 Price: $6.01 |
| 30 |
711-0415 |
Clevis Pin, 3/8 x 1.75 Price: $4.04 |
| 31 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 33 |
736-0921 |
Lock Washer, 1/2 Price: $3.90 |
| 34 |
738-0380 |
Shoulder Screw, .50 x .27, 3/8-16 Price: $7.34 |
| 35 |
786-0281-0637 |
SLEEVE HITCH LATCH Not Available This part replaces 786-0281. Price: |
| 36 |
686-0154-0637 |
SKID SHOE ASSEMBLY (POWDER BLACK) Not Available This part replaces 686-0154. Price: |
| 37 |
710-1039 |
Hex Cap Screw, 3/8-24 x 1.0 Price: $4.02 |
| 38 |
710-1810 |
SCREW 3/8-24 x 1.75 GR8 Not Available Price: |
| 39 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 Price: $4.05 |
| 40 |
738-1144 |
SHOULDER NUT 3/8-2 Not Available Price: |
| 41 |
950-0706 |
SPACER-1.00 x .380 Not Available This part replaces 750-0706. Price: |
| 42 |
786-0302-0637 |
HEIGHT ADJUST BRACKET Not Available This part replaces 786-0302. Price: |
