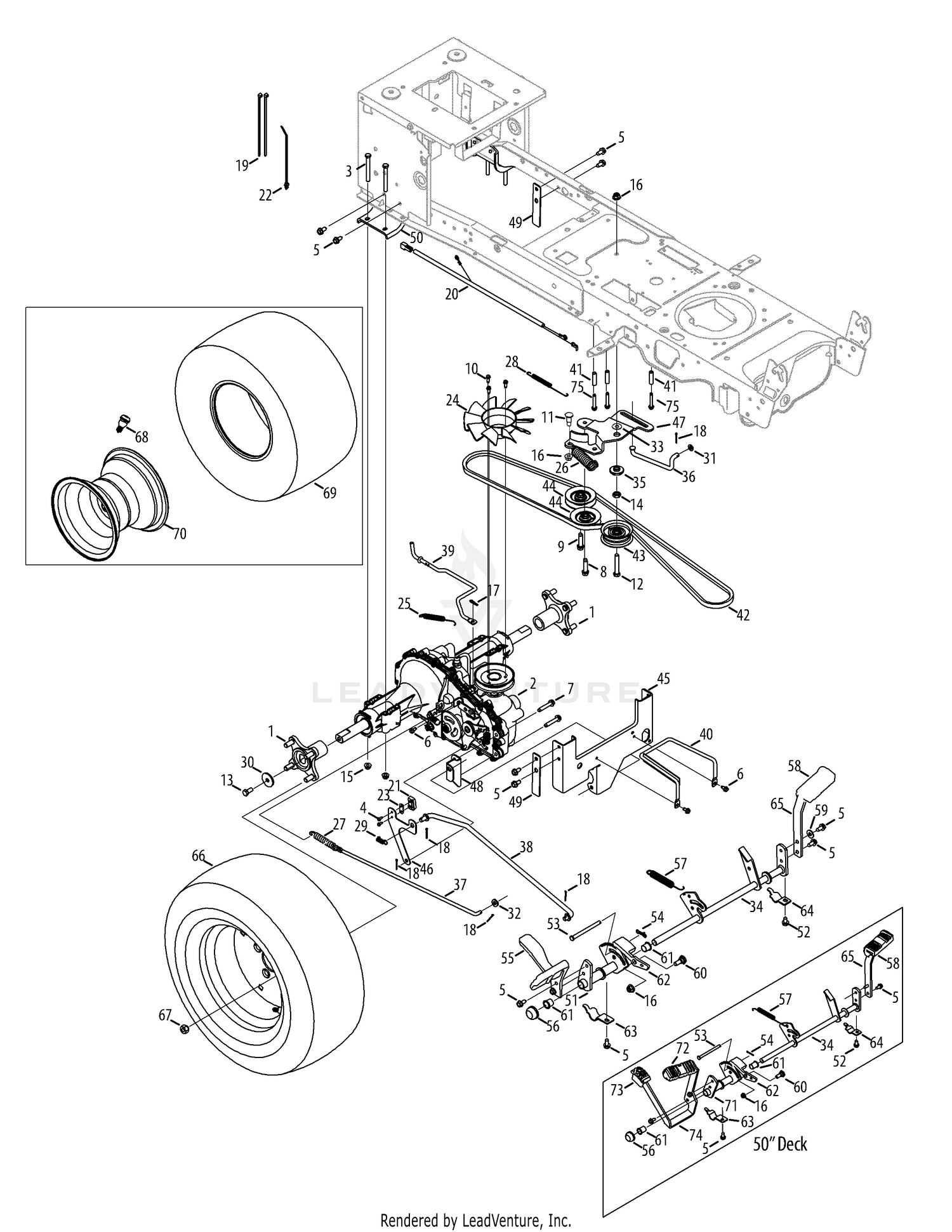

| Ref | Part Number | Description |
|---|
| 1 |
918-04317 |
Wheel Assembly Hub Price: $102.24 |
| 2 |
918-04917 |
Transmission Assembly Price: $1,746.28 |
| 3 |
710-0189 |
Hex Screw, 5/16-18x3.00 Price: $5.30 |
| 4 |
710-0227 |
Screw, #8-18x0.500 Price: $3.90 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0599 |
Taptite Screw, 1/4-20x0.500 Price: $3.86 |
| 7 |
710-0909A |
Taptite Screw, 5/16-18x1.750 Price: $8.84 |
| 8 |
710-1007 |
Taptite Sems Screw, 3/8-16x1.500 Price: $5.71 |
| 9 |
710-1008 |
Taptite Sems Screw, 3/8-16x1.875 Price: $4.75 |
| 10 |
710-1189 |
SCREW #12-24 x .625 Not Available Price: |
| 11 |
738-0430 |
Screw, Shldr, .50 x .685 3/8-16 Price: $10.55 |
| 12 |
710-3011 |
Hex Screw, 3/8-16x2.25 Price: $6.49 |
| 13 |
710-3119 |
Hex Screw, 3/8-16x.750 Price: $5.91 |
| 14 |
912-0240 |
Jam Nut, 7/16-20 Price: $3.90 |
| 15 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 16 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 17 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 18 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 19 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 20 |
725-04791A |
Jumper Harness Price: $13.92 |
| 21 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 22 |
926-0154 |
Push Mount Cable Tie 7.5 LG Price: $5.50 |
| 23 |
926-0320 |
Insulator Nut Plate Price: $6.01 |
| 24 |
931-1449A |
Blade Fan Price: $31.12 |
| 25 |
732-04528 |
EXTENSION SPRING .50 x 5 Not Available Price: |
| 26 |
732-04792 |
Extension Spring, 1.00 DIA x 4.75 Price: $7.94 |
| 27 |
732-0716D |
Extension Spring, .59 OD x 4.00 LG Price: $11.49 |
| 28 |
732-0932 |
Extension Spring, .38 DIA x 5.6 Price: $13.08 |
| 29 |
732-3118 |
Extension Spring, .375 OD x 1.44 LG Price: $8.78 |
| 30 |
736-0227 |
WASHER:FLAT: .390 x 1.50 x .134 This part replaces 936-0227. Price: $5.78 |
| 31 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 32 |
936-3008 |
Flat Washer, .344 x .750 x .120 Price: $6.24 |
| 33 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 34 |
647-04152D |
BRAKE PEDAL SHAFT ASSEMBLY Not Available Price: |
| 35 |
738-04420 |
SHOULDER SPACER 1.375X.380X.183 Price: $6.01 |
| 36 |
747-04957A |
FOOTPEDAL BYPASS ROD Not Available Price: |
| 37 |
747-05124 |
BRAKE ROD Not Available Price: |
| 38 |
747-05125A |
HYDRO CONTROL ROD Not Available Price: |
| 39 |
747-05130 |
HYDRO DISENGAGEMENT ROD Not Available Price: |
| 40 |
747-05181 |
Belt Keeper, 5/16 Price: $12.75 |
| 41 |
750-04456 |
Spacer, 260 x .372 x 1.420 LG Price: $6.20 |
| 42 |
954-04244A |
V Belt, 4L x 77.0 Price: $28.28 |
| 43 |
756-04224 |
Flat Idler Pulley, 2.75 OD Price: $24.80 |
| 44 |
756-04325 |
V Idler Pulley, 3.06 Price: $22.60 |
| 45 |
783-05443A-0637 |
TRANSMISSION TORQUE BRACKET Not Available Price: |
| 46 |
783-05841A |
SWITCH ACTUATOR BRACKET Not Available Price: |
| 47 |
783-06027B |
DOUBLE IDLER BRACKET Not Available This part replaces 783-06027A. Price: |
| 48 |
783-06501A-0637 |
TRANSMISSION DECK BRACKET Not Available Price: |
| 49 |
783-06503 |
TORQ BRACKET SHIM PLATE Not Available Price: |
| 50 |
783-0693A-0637 |
AXLE BRACKET Not Available Price: |
| 51 |
683-04621 |
PEDAL BRACKET ASSEMBLY Not Available Price: |
| 52 |
710-0604A |
Taptite Screw, 5/16-18x0.625 Price: $3.96 |
| 53 |
711-05068A |
Clevis Pin, 5/16 x 3.985 This part replaces 711-05068. Price: $6.64 |
| 54 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 55 |
719-0584B-0637 |
Control Pedal Price: $52.81 |
| 56 |
726-0214 |
Push Cap Price: $9.11 |
| 57 |
732-04587 |
Extension Spring, .63 DIA x 4.95 LG Price: $6.51 |
| 58 |
735-04136 |
Brake Pedal Pad Price: $13.49 |
| 59 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 60 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 61 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 62 |
748-04203 |
Cruise Latch Price: $12.39 |
| 63 |
783-05914 |
Pedal Support Bracket Price: $6.23 |
| 64 |
783-05940 |
Pedal Support Bracket, 5/8 Price: $6.17 |
| 65 |
783-06103A-0637 |
FOOT BRAKE PEDAL (POWDER BLACK) Not Available Price: |
| 66 |
634-0202A |
WHEEL ASM COMP.23X Not Available This part replaces 634-0202A-0911. Price: |
| 67 |
712-3050 |
Lug Nut, 7/16-14 Price: $9.17 |
| 68 |
934-0255 |
Air Valve Price: $3.83 |
| 69 |
734-04147-0901 |
Tire Price: $112.07 |
| 70 |
634Z04238-0662 |
RIM ASSEMBLY (12 x 7) (OYSTER GREY) This part replaces 634-04238-0662. Price: $173.78 |
| 71 |
683-04571 |
PEDAL BRACKET ASSEMBLY Not Available Price: |
| 72 |
735-04118A |
Reverse Pedal Pad Price: $12.95 |
| 73 |
735-04135 |
Forward Pedal Pad Price: $6.67 |
| 74 |
783-06059-0637 |
FWD/REV PEDAL Not Available Price: |
