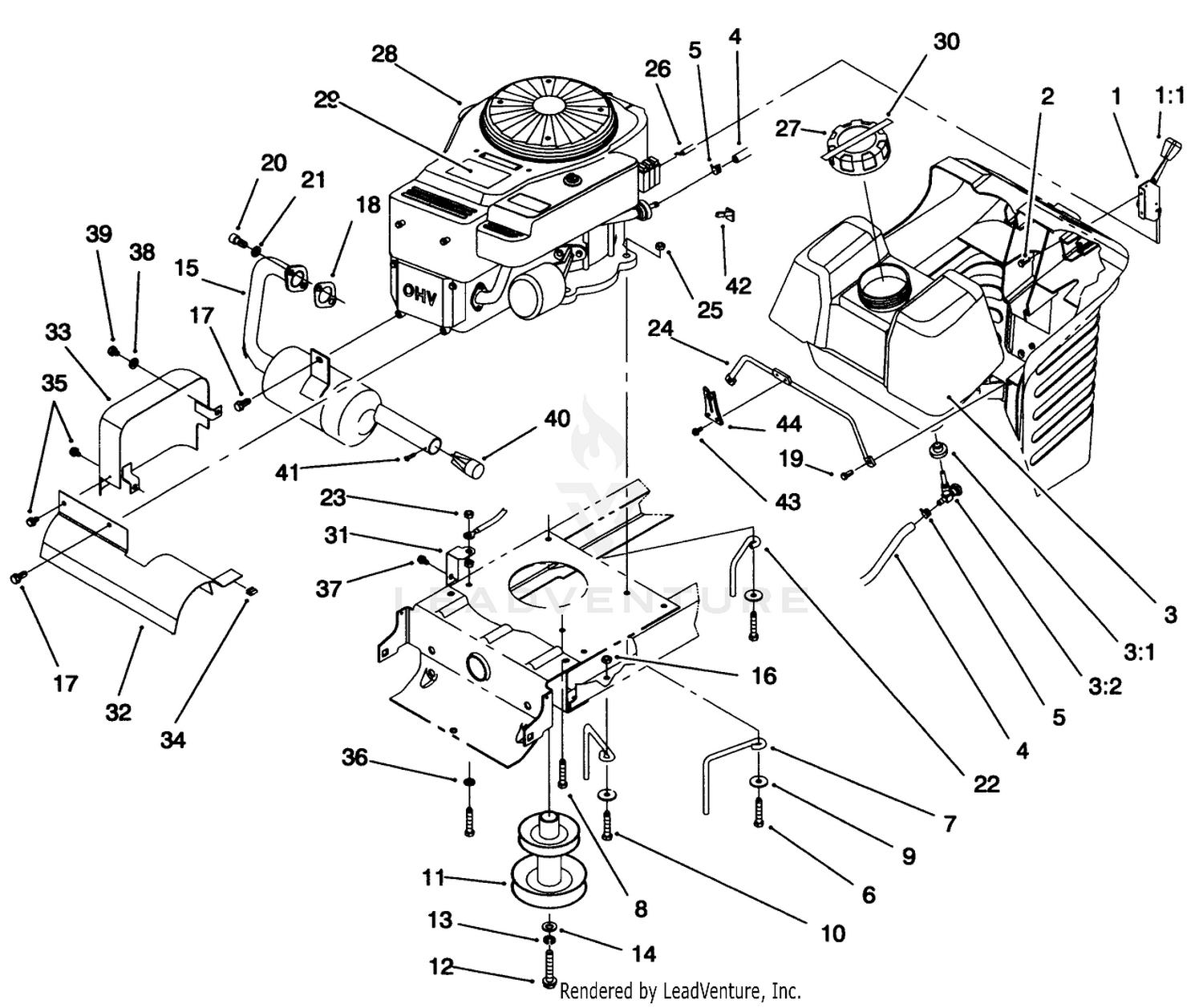

| Ref | Part Number | Description |
|---|
| 1 |
88-4340 |
THROTTLE CONTROL ASM Price: $23.82 |
| 2 |
27-0220 |
SCREW-SPECIAL Price: $7.09 |
| 3 |
88-3880 |
GAS TANK ASM Price: $128.09 |
| 4 |
107-9297 |
HOSE-FUEL This part replaces 47-2963. Price: $7.29 |
| 5 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 6 |
322-9 |
SCREW-HH Price: $3.09 |
| 7 |
93-3854 |
GUIDE-BELT, ENGINE Price: $8.66 |
| 8 |
9267154 |
SCREW-HWH, TAPTITE Price: $2.18 |
| 9 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 10 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 11 |
93-3832 |
DISCONTINUED Price: Call Us |
| 12 |
26-0671 |
SCREW-HH Price: $7.99 |
| 13 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 14 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 15 |
99-6845 |
MUFFLER-EXHAUST This part replaces 93-3892. Price: $270.01 |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 18 |
88-4410 |
GASKET-EXHAUST Price: $10.68 |
| 19 |
27-0220 |
SCREW-SPECIAL Price: $7.09 |
| 20 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 21 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 22 |
93-3855 |
GUIDE-BELT, RH Price: $12.99 |
| 23 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 24 |
94-1952 |
ROD-TANK, GAS Price: $22.68 |
| 25 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 26 |
88-4350 |
THROTTLE CABLE ASM Price: $16.68 |
| 27 |
88-3980 |
GAS CAP ASM Price: $31.99 |
| 29 |
94-3526 |
DISCONTINUED Price: Call Us |
| 31 |
93-3809 |
BRACKET-GROUND Price: $5.65 |
| 32 |
93-3880-03 |
DISCONTINUED This part replaces 93-3880. Price: Call Us |
| 33 |
93-8450-03 |
HEAT SHIELD ASM This part replaces 93-8450. Price: $66.42 |
| 34 |
93-3882 |
CLIP-TINNERMAN Price: $2.14 |
| 35 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 36 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 37 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 38 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 39 |
322-3 |
SCREW-HH Price: $0.79 |
| 40 |
93-9911 |
SCREEN-SILENCER, EXHAUST Price: $29.07 |
| 41 |
32144-42 |
SCREW-THD FORM, HWH Price: $0.89 |
| 42 |
88-4490 |
REDUCER-THROTTLE, RPM Price: $12.48 |
| 43 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
