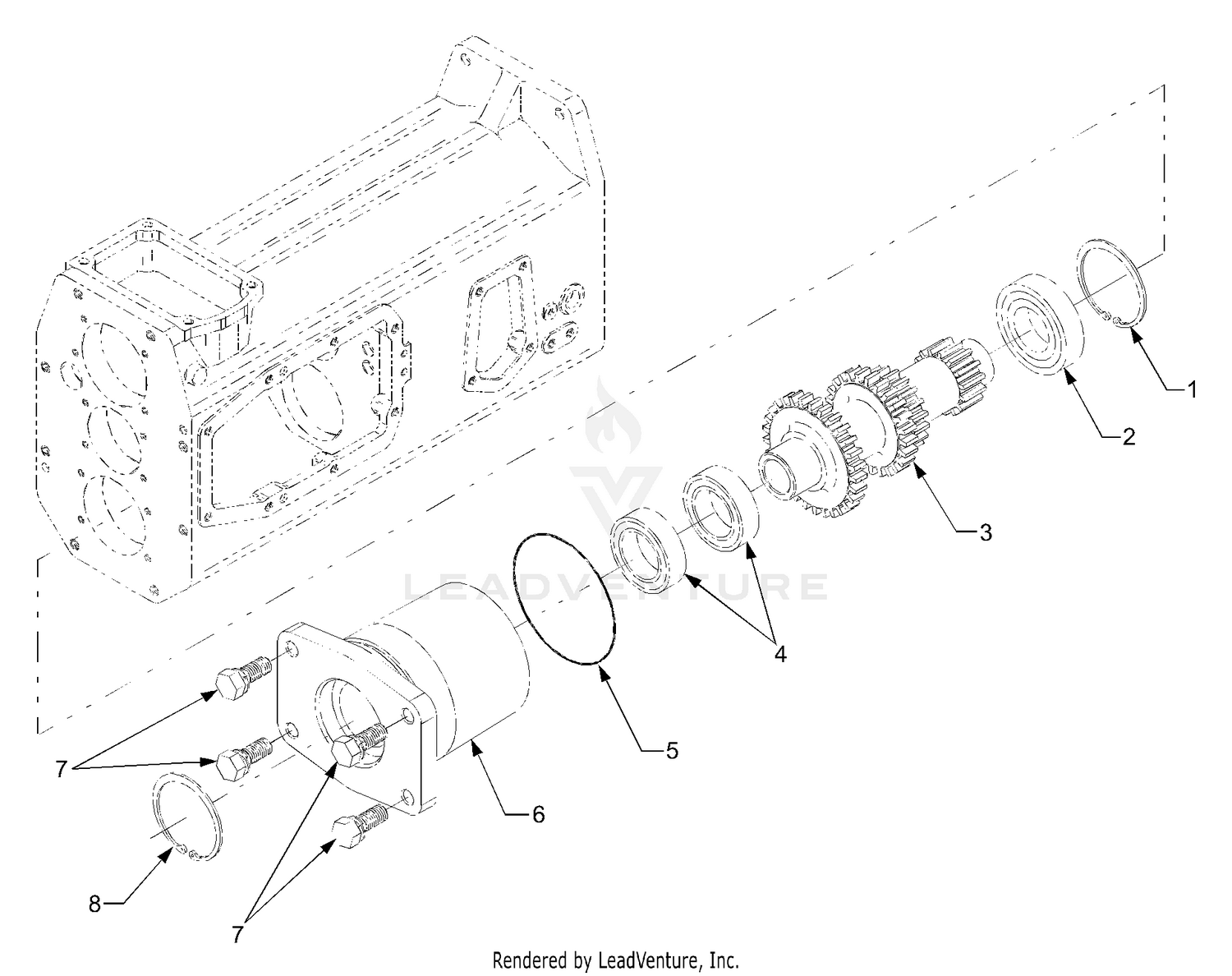

Shaft 2 Group
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DD-04611-00800 | SNAP RING Not Available Price: |
| 2 | DD-08101-06208 | BALL BEARING Not Available Price: |
| 3 | 98-9596 | JOINT-EYE Price: $18.69 |
| 3 | DD-T4620-21712 | GEAR ASSEMBLY-29/23/18/ Not Available Price: |
| 4 | 98-9361 | BOLT-HSH Price: $0.76 |
| 4 | DD-08101-06008 | BALL BEARING Not Available Price: |
| 5 | 98-7699 | WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 5 | DD-04811-50800 | O-RING Not Available Price: |
| 6 | 98-9643 | INJECTION PUMP ASM Price: $2,551.99 |
| 6 | DD-T4620-21772 | CASE-BEARING Not Available Price: |
| 7 | 98-9456 | SHIM-INJECTION (0.20MM) Price: $7.29 |
| 7 | 98-9457 | SHIM-INJECTION (0.25MM) Price: $8.40 |
| 7 | DD-01123-50828 | BOLT Not Available Price: |
| 8 | 98-9458 | SHIM-INJECTION (0.30MM) Price: $12.10 |
| 9 | 98-9438 | STUD Price: $1.33 |
| 506538501 | 506538501 | Arm Price: $22.27 |
| 506538601 | 506538601 | Bracket Price: $18.98 |
| 506538701 | 506538701 | Button Price: $7.95 |
| 506538801 | 506538801 | Pin Price: $7.33 |
| 506538901 | 506538901 | Spring Price: $3.61 |
| 506556002 | 506556002 | SCREW Price: $5.99 |
| 506566501 | 506566501 | CLAMP Price: $2.99 |
| 506570103 | 506570103 | BOLT Price: $3.99 |
| 506575901 | 506575901 | SHAFT PIVOT Price: $37.99 |
| 506576301 | 590735401 | Brackets This part replaces 506576301. Price: $12.99 |
| 506576401 | 506576401 | RETAINER Price: $4.99 |
| 506594601 | 506594601 | Center Panel Price: $85.78 |
| 506597401 | 506597401 | BOLT Price: $5.99 |
| 506597501 | 506597501 | WASHER Price: $6.99 |
| 506664501 | 506664501 | BELT GUIDE Price: $19.99 |
| 506670801 | 506670801 | CONNECTOR Price: $6.99 |
| 506671901 | 506671901 | SPRING Price: $22.99 |
| 506673301 | 506673301 | FUEL CAP Price: $27.99 |
| 506753801 | 506753801 | SHAFT Price: $49.99 |
| 506769601 | 506769601 | FUEL TANK Price: $64.99 |
| 506769703 | 506769703 | BRACKET Price: $24.77 |
| 506769803 | 506769803 | BRACKET Price: $24.77 |
| 506775601 | 535482201 | PULLEY This part replaces 506775601. Price: $64.99 |
| 506775701 | 506775701 | WASHER Price: $4.99 |
| 506800001 | 506800001 | Bracket Price: $21.19 |
| 506892001 | 506892001 | NUT Price: $7.99 |
| 506913701 | 506913701 | Cover Price: $59.94 |
| 506913801 | 506913801 | COVER Price: $44.99 |
| 506914401 | 506914401 | Shaft Price: $22.07 |
| 506917606 | 506917606 | FRAME Price: $1,099.99 |
| 506939001 | 535482401 | PULLEY This part replaces 506939001. Price: $69.99 |
| 506946707 | 506946707 | Price: $15.94 |
| 506946801 | 506946801 | Clip Price: $2.46 |
| 506965601 | 506965601 | Plate Price: $24.34 |
| 506965701 | 506965701 | Plug Price: $4.33 |
| 506969501 | 506969501 | COVER Price: $19.99 |
| 506998101 | 506998101 | Price: $12.37 |
| 531007589 | 580994701 | BELT This part replaces 531007589. Price: $24.99 |
| 551005014 | 551005014 | Price: Call Us |
| 721434901 | 721434901 | Pin Price: $3.99 |
| 721618301 | 721618301 | Split Pin Price: $1.99 |
| 725232951 | 725232951 | SCREW Price: $2.99 |
| 725236461 | 725236461 | SCREW Price: $2.99 |
| 725236851 | 725236851 | Screw Price: $1.32 |
| 725237051 | 725237071 | SCREW This part replaces 725237051. Price: $3.99 |
| 725244951 | 725244951 | BOLT - M8X16 Price: $2.99 |
| 729532971 | 729532971 | Screw Price: $1.80 |
| 729541401 | 729541401 | SCREW Price: $3.99 |
| 731232051 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 732211401 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 732211601 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 732211801 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 734115601 | 734181251 | WASHER This part replaces 734115601. Price: $0.99 |
| 734116401 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 734116441 | 734116441 | SPACER Price: $3.99 |
| 735313810 | 735313810 | RETAINING RING Price: $2.99 |
| 735583501 | 735583501 | CLIP Price: $12.99 |
