Home / OPE / Riding Products / 650D, Reelmaster 3240-D Traction Unit, 2009 (SN 290000001-290999999) / Control Pedals

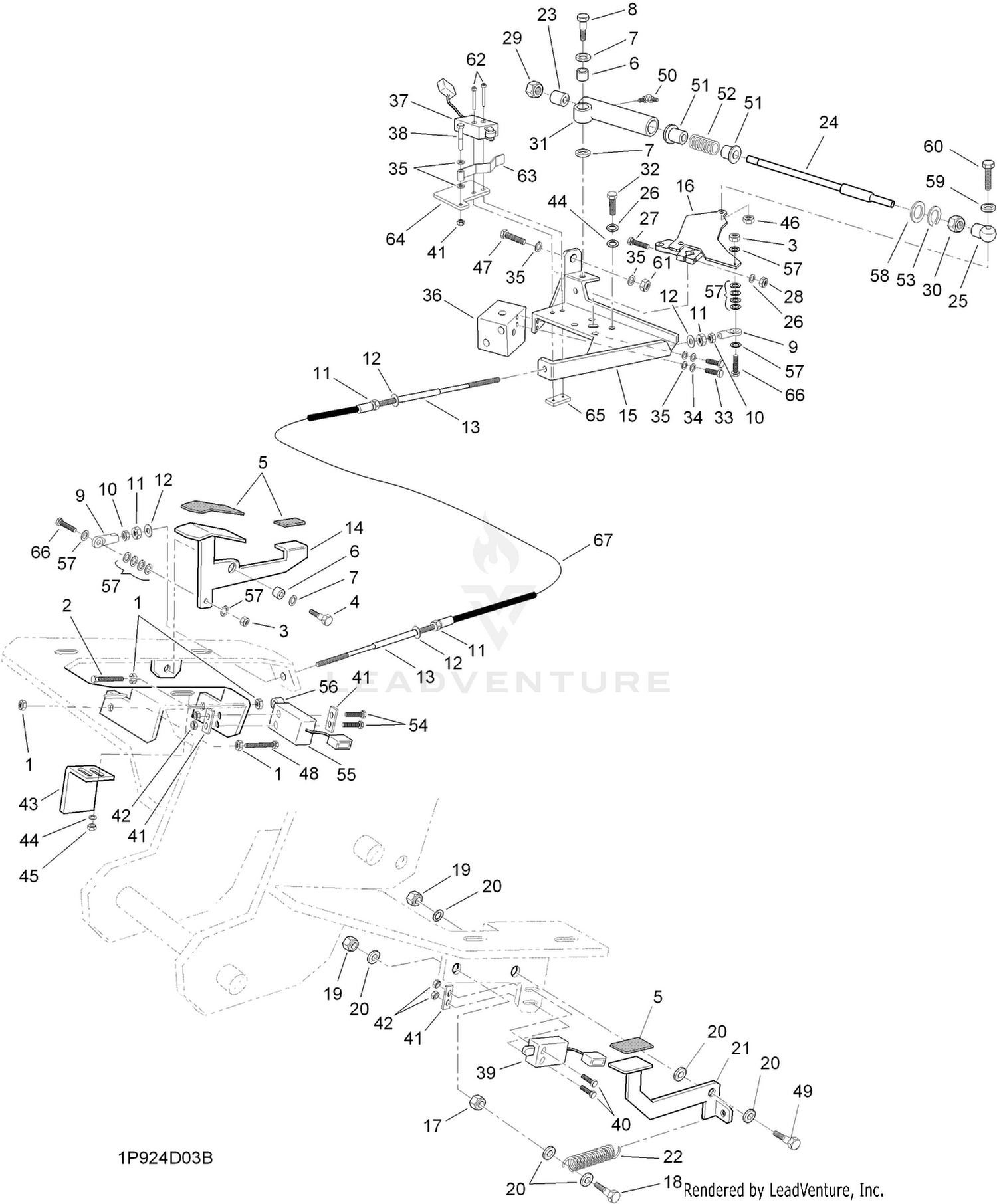

Control Pedals

Control Pedals

Parts (66)

RefPart NumberDescription
1 09437 NUT M6 PLAIN Price: $1.40
2 ZDH1F045U SETSCREW - M6X45 Price: $1.31
3 09430 NUT M5 NYL INS T TYPE Price: $1.25
4 ZIS8L030S SCREW SOC SHLD M10* DIA 12*30 RAW Price: $10.37
5 70-07-067 ANTI-SLIP TAPE Price: $11.24
6 910520 BUSH Price: $8.93
7 HY09485 WASHER M12 PLAIN Price: $1.40
8 ZIS1J020S LONG SOC.SHLD.SCW.M10*20 Price: $12.78
9 953891 M5 ROSE JOINT Price: $22.09
10 09746 NUT M5 LOCK Price: $1.42
11 ZNL1L000U HEX LOCKNUT M12 Price: $1.44
12 09486 WASHER M12 SHAKEPROOF Price: $1.40
13 111-0420 CABLE TRANSMISSION Price: $125.97
14 924476W PEDAL CONTROL W/A Price: $90.27
15 910265W BRACKET PUMP CONTROL W\A Price: $151.59
16 111-0129 LEVER CONTROL W/A Price: $141.84
17 09449 NUT M10 PLAIN Price: $1.34
18 ZDH1J035U HEX.HD.SET SCW.M10 * 35LG Price: $1.38
19 09447 NUT M10 X 1.5 NYL INS Price: $1.40
20 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
21 910238W PEDAL - DIFF LOCK Price: $42.73
22 70-07-063 EXTENSION SPRING Price: $12.85
23 910294 SPACER CONTROL Price: $11.16
24 111-0959 BAR - CONTROL ARM Price: $51.04
25 910860 ROD END 5/16" UNF FEMALE Price: $45.36
26 03469 WASHER M8 SC SPRING Price: $1.40
27 ZBH1H050U HEX.HD BOLT M8*50 Price: $1.38
28 ZNH1H000U HEX.NUT M8 This part replaces 09443. Price: $1.40
29 09535 NUT UNF 5/16 NYL INS P TYPE Price: $1.40
30 09207 NUT UNF 5/16 PLAIN PLATED Price: $1.40
31 111-0957 CONTROL UNIT W/A Price: $75.72
32 03162 STEEL BOLT Price: $1.39
33 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
34 09474 WASHER M6 SC SPRING Price: $1.34
35 09472 WASHER-PLAIN Price: $1.25
36 910616 MANIFOLD - RETURN BYPASS Price: $199.98
37 111-0143 SWITCH NEUTRAL START Price: $133.08
38 ZBH1F040U HEX HD BOLT M6*40 Price: $1.26
39 111-6523 SWITCH LIMIT ASSY This part replaces 994860. Price: $117.87
40 09813 SCREW SOC HD Price: $1.20
41 09438 NUT M6 X 1.5 PLAIN Price: $1.39
42 09657 NUT M8 HX.NYL/INSERT T TYPE ZP Price: $1.40
43 910347 CLAMP PEDAL BOLT Price: $16.79
44 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
45 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
46 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
47 09547 BOLT M6 X 30 HEX HEAD Price: $1.40
48 09364 SETSCREW M6 X 25 Price: $1.34
49 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
50 950938 Elbow 90o Swivel Price: $11.83
51 924448 Bush Top Hat Price: $15.31
52 924866 SPRING CONTROL Price: $5.51
53 924447 Circlip Internal Price: $1.35
54 09704 SETSCREW M4X35 Price: $1.40
55 924624 Switch Assy - Gothic Price: $117.53
56 950891 ROLLER DIRECT ACTING Price: $37.59
57 09470 WASHER M5 X 10 X 1 ZN & PASS Price: $1.25
58 09488 WASHER PLAIN M14 Price: $1.40
59 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
60 09369 SETSCREW M8 X 30 Price: $1.40
61 09544 NUT M6 NYL INS GD 8 Price: $1.34
62 HY09831 SCREW SOC HD CAP M4*35 S/ST Price: $1.04
63 111-1018 LEVER - SWITCH ACTUATOR Price: $10.49
64 111-1017 PLATE - SWITCH MOUNTING Price: $6.89
65 111-1020 NUT BAR - M4 Price: $13.96
66 09806 SETSCREW M5*25 Price: $1.42
