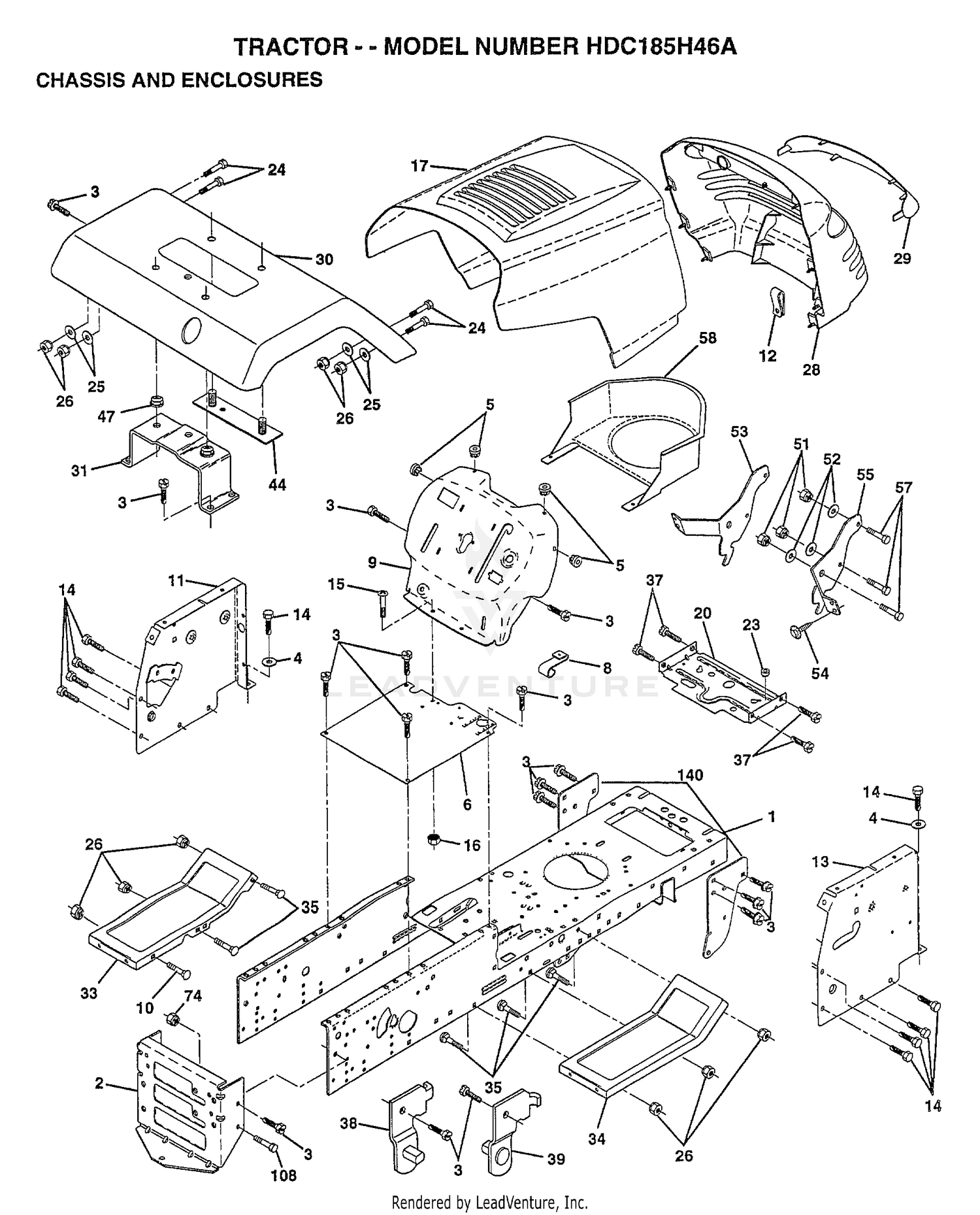

| Ref | Part Number | Description |
|---|
| 1 |
155051 |
CHASSIS ASM Price: Call Us |
| 1 |
99-1837 |
CRANKCASE ASM Price: $8,132.87 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
110-6192 |
PLUG This part replaces 70-3370. Price: $5.13 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
107-4809 |
PIPE-JET, OIL Price: $37.93 |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 6 |
155923 |
SADDLE Price: Call Us |
| 6 |
99-1840 |
PLUG-CAM Price: $32.32 |
| 7 |
99-1841 |
PIN-DOWEL Price: $7.59 |
| 8 |
70-3000 |
PIN Price: $2.02 |
| 9 |
147633X011 |
DASH SILKSCREEN Price: Call Us |
| 9 |
93-3365 |
PIN-DOWEL Price: $3.29 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 10 |
99-1842 |
PIN-SPRING Price: $1.69 |
| 11 |
156682 |
PANEL ASM DASH LH Price: Call Us |
| 11 |
99-1853 |
SEAL-SIDE Price: $4.04 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
99-1843 |
BUSHING This part replaces 107-4810. Price: $9.86 |
| 13 |
157230 |
PANEL DASH RH Price: Call Us |
| 13 |
99-1844 |
SHAFT-IDLER Price: $64.61 |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
56-0100 |
PLUG-DRAIN Price: $6.55 |
| 15 |
74180512 |
SCREW Price: Call Us |
| 15 |
86-6240 |
PLUG-TAPERED Price: $5.11 |
| 16 |
73510500 |
NUT Price: Call Us |
| 16 |
99-1845 |
PLUG-TAPER Price: $3.04 |
| 17 |
139394X428 |
SUB= 159639X428 Price: Call Us |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 31 |
137113 |
BRKT.ASM.FENDER Price: Call Us |
| 33 |
145244X428 |
FOOTREST PNT LH Price: Call Us |
| 34 |
145243X428 |
FOOTREST.RH.LT/GT Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 44 |
140675 |
STRAP ASM FENDER Price: Call Us |
| 47 |
105531X |
NUT-PUSH YT Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
140547 |
DUCT.AIR.B&S.18HP Price: Call Us |
| 74 |
73680600 |
SUB= 73690600 Price: Call Us |
| 108 |
74760612 |
SUB= 74780612 Price: Call Us |
| 201 |
51-5600 |
SEALING CAP This part replaces 107-4808. Price: $20.67 |
