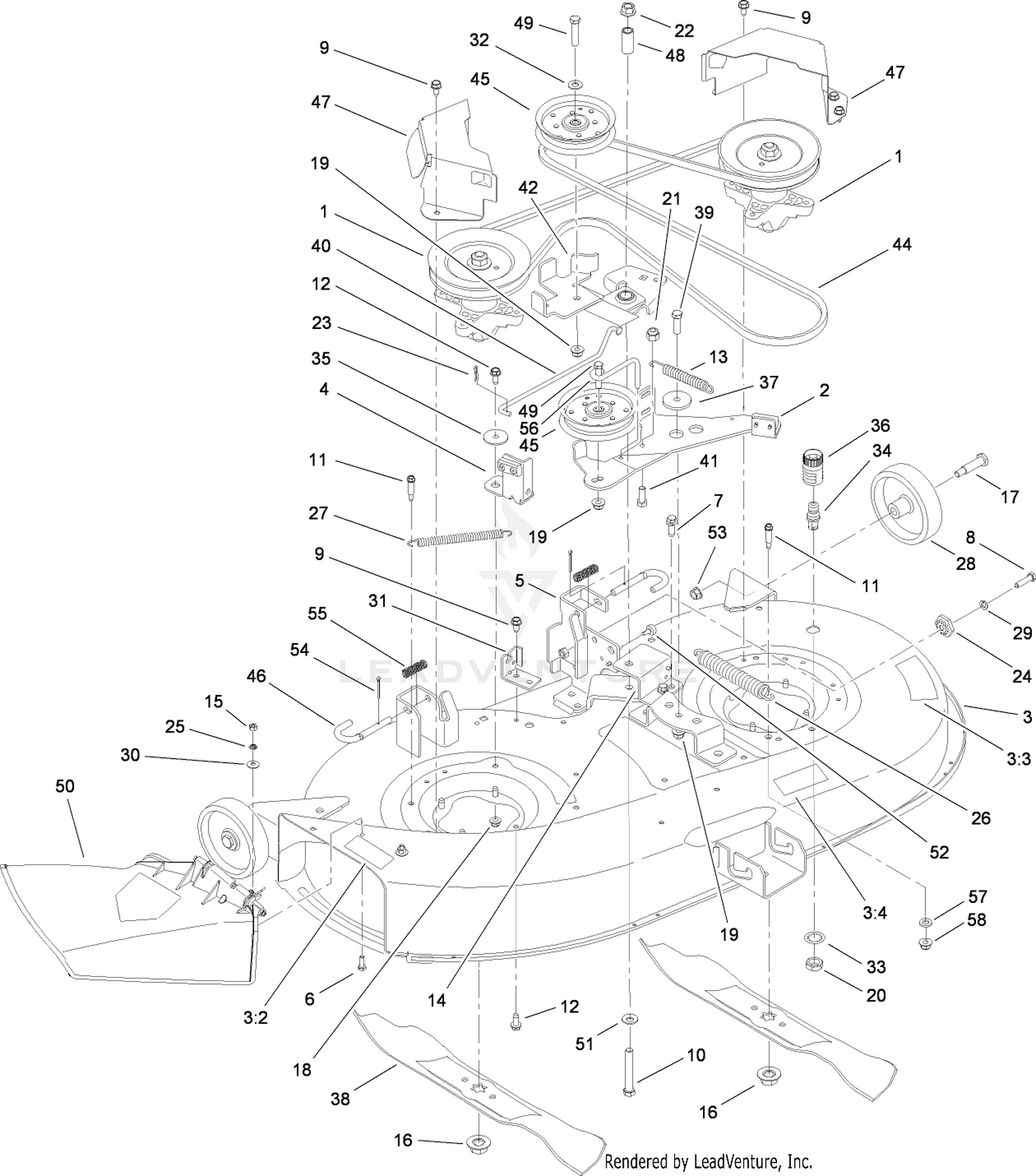

| Ref | Part Number | Description |
|---|
| 1 |
112-0460 |
SPINDLE ASM Price: $114.90 |
| 2 |
112-0606 |
DECK BRAKE ASM Price: $101.47 |
| 3 |
112-5857 |
DECK AND DECAL ASM Price: $469.72 |
| 4 |
112-3742 |
BRAKE ASM Price: $42.63 |
| 5 |
112-0413 |
LH HANGER BRACKET ASM Price: $38.86 |
| 6 |
112-0499 |
SCREW-HH Price: $3.50 |
| 7 |
112-0663 |
SCREW-TAP Price: $3.52 |
| 8 |
112-0373 |
SCREW-HH Price: $3.50 |
| 9 |
112-0472 |
SCREW-HH, TAP Price: $3.42 |
| 10 |
112-3745 |
SCREW-HH Price: $8.85 |
| 11 |
112-5918 |
BOLT-SHOULDER Price: $6.51 |
| 12 |
112-0395 |
SCREW-HWH Price: $6.55 |
| 13 |
112-3746 |
SPRING-EXTENSION Price: $8.36 |
| 14 |
112-5801 |
BRACKET-SUPPORT, PIVOT Price: $27.55 |
| 15 |
112-0522 |
NUT-HEX Price: $3.52 |
| 16 |
112-0330 |
NUT-LOCK, FLANGE Price: $5.46 |
| 17 |
112-0334 |
BOLT-SHOULDER Price: $7.65 |
| 18 |
112-0650 |
NUT-LOCK, FLANGE Price: $3.42 |
| 19 |
112-0668 |
NUT-LOCK, FLANGE Price: $3.38 |
| 20 |
112-0351 |
NUT-HEX Price: $4.96 |
| 21 |
112-5821 |
NUT-LOCK, HEX Price: $3.52 |
| 22 |
112-0859 |
NUT-LOCK, FLANGE Price: $3.52 |
| 23 |
112-0459 |
DISCONTINUED Price: Call Us |
| 24 |
112-0327 |
GEAR-ADJUSTMENT, DECK Price: $12.35 |
| 25 |
112-0623 |
RETAINER-BOLT Price: $3.52 |
| 26 |
112-0349 |
SPRING Price: $17.24 |
| 27 |
112-0528 |
SPRING-EXTENSION Price: $13.09 |
| 28 |
112-0337 |
WHEEL-DECK, REAR Price: $10.93 |
| 29 |
112-0366 |
DISCONTINUED Price: Call Us |
| 30 |
112-0485 |
WASHER-SPRING Price: $3.50 |
| 31 |
119-8462 |
BRACKET-CABLE, DECK ENGAGE This part replaces 112-0718. Price: $5.67 |
| 32 |
112-0572 |
WASHER-FLAT Price: $3.52 |
| 33 |
112-0922 |
WASHER-LOCK Price: $3.48 |
| 34 |
112-0879 |
NOZZLE-WATER, DECK Price: $23.22 |
| 35 |
112-3747 |
SPACER-SHOULDER Price: $3.63 |
| 36 |
112-0916 |
ADAPTER-NOZZLE, WATER Price: $22.32 |
| 37 |
112-0584 |
SPACER-SHOULDER Price: $21.03 |
| 38 |
112-0315 |
BLADE Price: $27.35 |
| 39 |
112-0557 |
SCREW-HH Price: $3.52 |
| 40 |
112-3748 |
ROD-BRAKE Price: $15.56 |
| 41 |
112-0855 |
SCREW-HH Price: $3.52 |
| 42 |
112-6064 |
IDLER ARM ASM 42 INCH This part replaces 112-3743. Price: $43.86 |
| 44 |
112-5800 |
BELT-V TYPE Price: $50.33 |
| 45 |
112-0314 |
PULLEY-IDLER Price: $37.20 |
| 46 |
112-0436 |
PIN-HANDLE, DECK RELEASE Price: $10.77 |
| 47 |
112-0630 |
COVER-BELT Price: $19.75 |
| 48 |
112-3749 |
SPACER Price: $9.47 |
| 49 |
112-0513 |
SCREW-HH Price: $3.52 |
| 50 |
112-0353 |
DISCHARGE CHUTE ASM Price: $85.88 |
| 51 |
112-0481 |
WASHER-BELL Price: $3.52 |
| 52 |
112-1016 |
BUMPER Price: $6.11 |
| 53 |
112-0385 |
NUT-LOCK, FLANGE Price: $3.48 |
| 54 |
112-0412 |
PIN-COTTER Price: $3.50 |
| 55 |
112-0406 |
SPRING-COMPRESSION Price: $6.37 |
| 56 |
112-5879 |
ROD-KEEPER, BELT Price: $5.17 |
| 57 |
112-5919 |
WASHER-FLAT Price: $5.28 |
