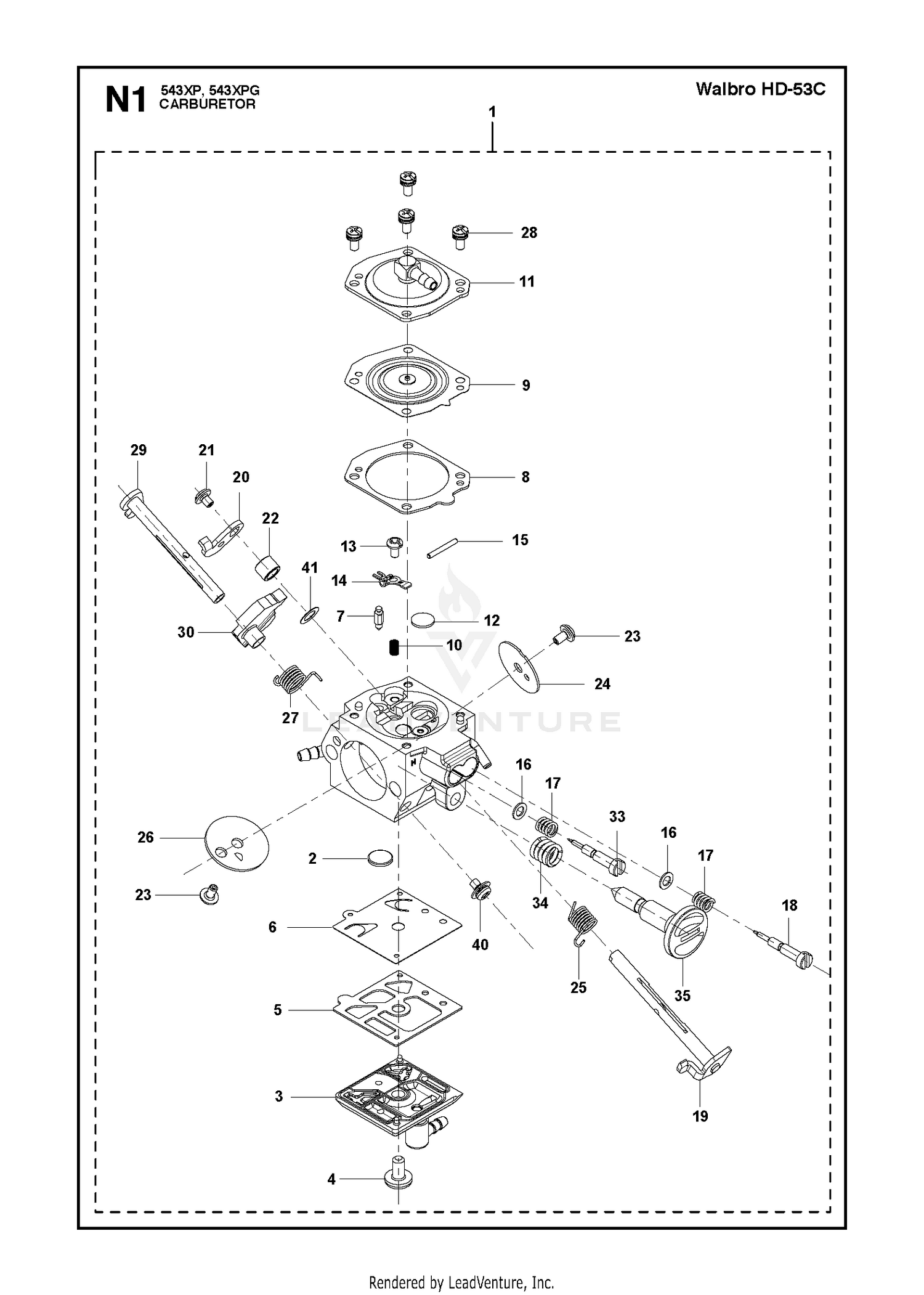

CARBURETOR DETAILS 2
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 3 | 579492101 | COVER ASSEMBLY PUMP 21-3780 Price: $24.99 |
| 4 | 513301301 | SCREW Z149181130 Price: $3.99 |
| 5 | 514242701 | GASKET Price: $3.99 |
| 7 | 521085401 | VALVE INLET Price: $11.99 |
| 8 | 514242801 | GASKET Price: $4.99 |
| 9 | 579492201 | DIAPHRAGM ASSEMBLY METERING 95 Price: $17.99 |
| 10 | 516980001 | SPRING Price: $3.99 |
| 11 | 501405701 | COVER PUMP Price: $19.99 |
| 12 | 516342901 | PLUG Price: $6.99 |
| 13 | 520977301 | SCREW Price: $4.99 |
| 14 | 514242901 | LEVER Price: $6.99 |
| 15 | 520977401 | PIN Price: $4.99 |
| 16 | 521576001 | WASHER Price: $4.99 |
| 17 | 514188201 | SPRING Price: $3.99 |
| 18 | 579492401 | NEEDLE IDLE Price: $19.99 |
| 19 | 579492501 | SHAFT ASSY THROTTLE 22-4282 Price: $29.99 |
| 20 | 579492601 | LEVER THROTTLE 18-3551 Price: $24.99 |
| 21 | 520759801 | SCREW Price: $2.99 |
| 22 | 579492701 | SPACER THROTTLE LEVER 148-96 Price: $6.99 |
| 23 | 579492801 | SCREW 96-3240 Price: $2.99 |
| 24 | 579492901 | VALVE THROTTLE 34-314 Price: $7.99 |
| 25 | 579493001 | SPRING 98-3706 Price: $19.99 |
| 26 | 579493101 | VALVE CHOKE 34-3504 Price: $12.99 |
| 27 | 581298001 | SPRING 98-3718 Price: $6.99 |
| 28 | 520978801 | SCREW ASSY Price: $2.99 |
| 29 | 581298101 | SHAFT ASSY CHOKE 22-4356 Price: $22.99 |
| 30 | 581298201 | LEVER FAST IDEL 18-3566 Price: $19.99 |
| 33 | 579493501 | NEEDLE HIGH SPEED Price: $14.99 |
| 34 | 579493001 | SPRING 98-3706 Price: $19.99 |
| 35 | 513792801 | SCREW Price: $14.99 |
| 40 | 581298301 | SCREW Price: $2.99 |
| 41 | 506746101 | WASHER Price: $2.99 |
