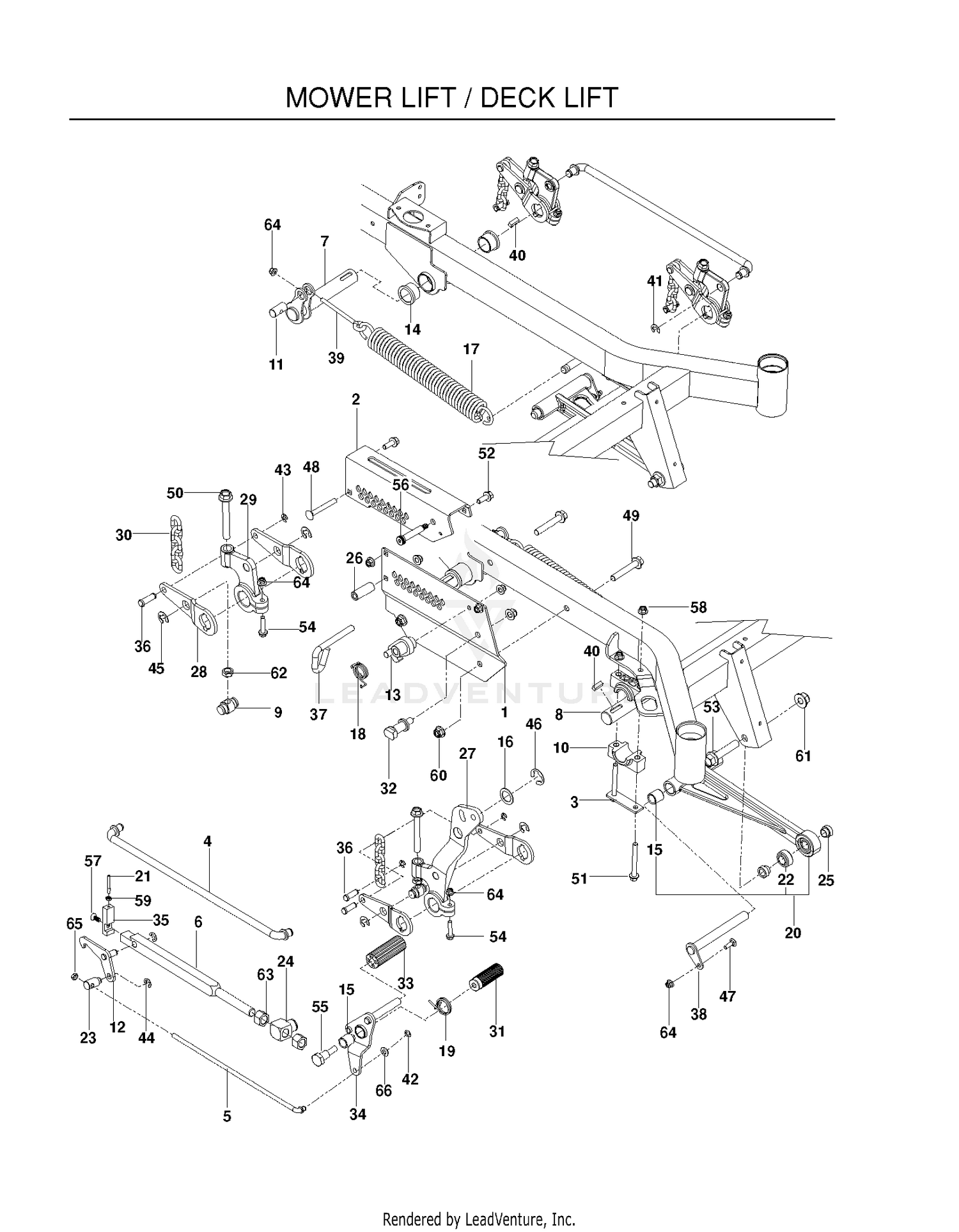

| Ref | Part Number | Description |
|---|
| 1 |
510408502 |
PLATE, INNER HEIGHT, ORANGE Price: $84.99 |
| 1 |
92-9722 |
V-PULLEY ASM This part replaces 92-0624. Price: $211.52 |
| 2 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 2 |
510408602 |
PLATE, OUTER HEIGHT ORG Price: $84.99 |
| 3 |
32128-19 |
NUT-HF Price: $0.99 |
| 3 |
593634102 |
PLATE.PNT.PILLOW.BLOCK.EDIP This part replaces 525822201. Price: $2.99 |
| 4 |
510089802 |
Rods This part replaces 510089801. Price: $119.99 |
| 4 |
86-2600-01 |
WASHER-GUIDE, BELT This part replaces 86-2600. Price: $5.77 |
| 5 |
597340001 |
Rods This part replaces 510407601. Price: $11.99 |
| 5 |
92-0625 |
FLAT PULLEY ASM Price: $75.60 |
| 6 |
510406302 |
Bars This part replaces 510406301. Price: $44.99 |
| 6 |
86-1440 |
WASHER-FLAT Price: $2.10 |
| 7 |
32128-54 |
NUT-HF Price: $5.25 |
| 7 |
510410703 |
SHAFT, RR LIFT Price: $37.99 |
| 8 |
510409602 |
SHAFT, LIFT, FT Price: $84.99 |
| 8 |
53-6380 |
WASHER-FLAT Price: $8.62 |
| 9 |
510023601 |
SHAFT, LIFT TRUNION WSL Price: $17.99 |
| 9 |
86-0750 |
DECAL-BELT, LH Price: $37.54 |
| 10 |
510023902 |
BLOCK, PILLOW Price: $11.99 |
| 10 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 11 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 11 |
510412302 |
Pivots This part replaces 510412301. Price: $6.99 |
| 12 |
510407202 |
Weldments This part replaces 510407201. Price: $22.99 |
| 12 |
86-1960 |
V-BELT Price: $50.24 |
| 13 |
3290-256 |
PIN-HAIR Price: $1.01 |
| 13 |
510406802 |
Latch This part replaces 510406801. Price: $19.99 |
| 14 |
510089401 |
BUSHING, FLANGE 1.25 X 1.0 Price: $17.99 |
| 14 |
86-2010 |
PIN-HOC Price: $91.17 |
| 15 |
510089201 |
BUSHING, SLEEVE 3/4 X 1.0 Price: $12.99 |
| 15 |
86-0710 |
DECAL-HOC, LH WING Price: $44.36 |
| 16 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 16 |
596319701 |
Washers This part replaces 539916561. Price: $1.99 |
| 17 |
3216-6 |
SCREW-HH Price: $17.98 |
| 17 |
510029201 |
SPRING, EXTENSION Price: $29.99 |
| 18 |
510376601 |
SPRING, TORSION Price: $2.99 |
| 18 |
92-7756 |
DISCONTINUED Price: Call Us |
| 19 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 19 |
510376701 |
SPRING, TORSION Price: $2.99 |
| 20 |
510106501 |
ASSEMBLY, STRUT Price: $99.99 |
| 20 |
85-6410 |
DECAL-DANGER Price: $8.29 |
| 21 |
510406602 |
Links This part replaces 510406601. Price: $2.99 |
| 21 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 22 |
510083801 |
BALL JOINT, 3/4" SWIVEL Price: $44.99 |
| 22 |
69-1510 |
SPACER Price: $4.48 |
| 23 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 23 |
510407502 |
Swivels This part replaces 510407501. Price: $3.99 |
| 24 |
510406402 |
Swivels This part replaces 510406401. Price: $22.99 |
| 25 |
596839401 |
Spacers This part replaces 510362501. Price: $5.99 |
| 26 |
510408402 |
Spacers This part replaces 510408401. Price: $8.99 |
| 27 |
525465502 |
ASSEMBLY, DECK LIFT LEVER This part replaces 510022502. Price: $139.99 |
| 28 |
510410002 |
ARM LIFT BLK Price: $9.99 |
| 29 |
525465501 |
ASSEMBLY, DECK LIFT CRANK This part replaces 510022501. Price: $99.99 |
| 30 |
594722002 |
LIFT This part replaces 539102641. Price: $4.99 |
| 31 |
510089501 |
PAD, FOOT PEDAL Price: $4.99 |
| 32 |
510406702 |
Guides This part replaces 510406701. Price: $9.99 |
| 33 |
510408302 |
Pedals This part replaces 510408301. Price: $27.99 |
| 34 |
510407801 |
PEDAL, RELEASE WLDMT Price: $129.99 |
| 35 |
510406502 |
Hubs This part replaces 510406501. Price: $14.99 |
| 36 |
596919401 |
Pins This part replaces 510090101. Price: $4.99 |
| 37 |
510016502 |
Pins This part replaces 510016501. Price: $7.99 |
| 38 |
515988202 |
Pins This part replaces 515988201. Price: $37.99 |
| 39 |
596637601 |
Bolts This part replaces 539120993. Price: $5.99 |
| 40 |
525822501 |
KEY, 5/16 SQ X 1.0 Price: $2.99 |
| 41 |
539105069 |
E-RING 5/8 Price: $2.99 |
| 42 |
539990870 |
E RING 3/8" Price: $2.99 |
| 43 |
522705201 |
RING, E, 7/16 Price: $2.99 |
| 44 |
596671501 |
Washers This part replaces 539101949. Price: $2.99 |
| 45 |
539102454 |
E RING 3/4 Price: $2.99 |
| 46 |
812000053 |
E RING HYT This part replaces 539912730. Price: $3.99 |
| 47 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 48 |
596917501 |
Bolts This part replaces 539122728. Price: $1.99 |
| 49 |
596789601 |
Bolts This part replaces 525828901. Price: $3.99 |
| 50 |
525465701 |
HHFS 1/2-13 X 4 GR 5 Price: $19.99 |
| 51 |
525822101 |
HHFS 3/8-16 X 3.5 GD 5 ZD Price: $4.99 |
| 52 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 53 |
525829001 |
HHFS 5/8-11 X 3.0 GD 8 ZD Price: $27.99 |
| 54 |
525465402 |
Screws This part replaces 525465401. Price: $1.99 |
| 55 |
510408202 |
Bolts This part replaces 510408201. Price: $17.99 |
| 56 |
516035502 |
Bolts This part replaces 516035501. Price: $4.99 |
| 57 |
522705601 |
SCREW, 5/16-18 X 3/4 FLAT HEX Price: $2.99 |
| 58 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 59 |
597357701 |
Nuts This part replaces 539991112. Price: $2.99 |
| 60 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 61 |
525829102 |
Nuts This part replaces 525829101. Price: $2.99 |
| 62 |
596433401 |
Nuts This part replaces 539990625. Price: $2.99 |
| 63 |
596916901 |
Nuts This part replaces 539108677. Price: $2.99 |
| 64 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 65 |
596029901 |
Hardware This part replaces 539108732. Price: $2.99 |
