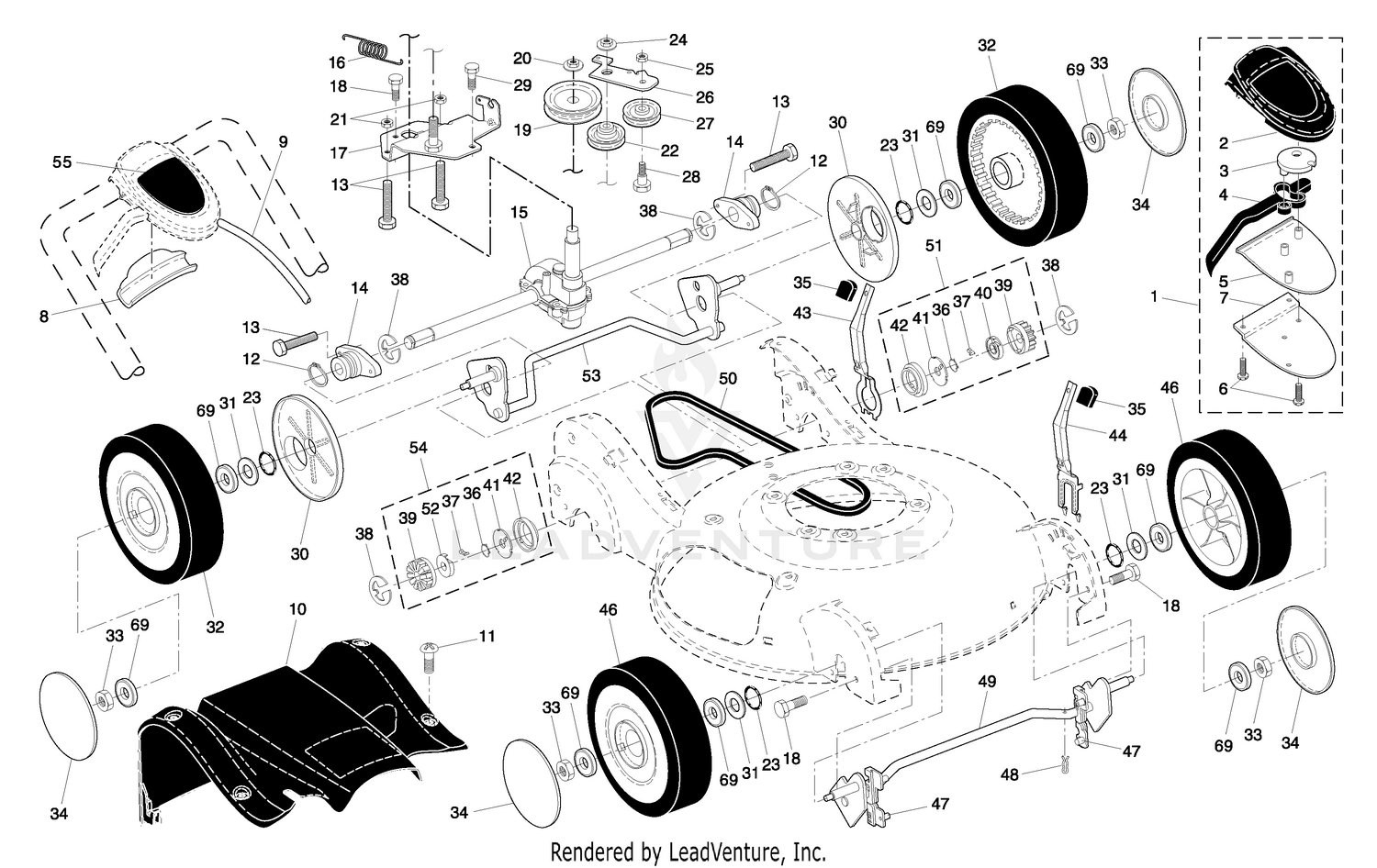

| Ref | Part Number | Description |
|---|
| 1 |
136-8446 |
KIT, CENTER PULL FRAME This part replaces 86-9820. Price: $340.89 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
532197168 |
KIT.CONTL.ASM.CASE.HALVES.GREY This part replaces 532188279. Price: $44.99 |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 8-7710. Price: $16.35 |
| 4 |
532425662 |
LEVER.BLACK This part replaces 532190037. Price: $12.99 |
| 5 |
532197168 |
KIT.CONTL.ASM.CASE.HALVES.GREY This part replaces 532188278. Price: $44.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL This part replaces 532187097. Price: $4.99 |
| 8 |
532186297 |
EZ WALK SNAP COVER PLATE Price: $5.99 |
| 8 |
62-2420-01 |
BAR ASM-LIFT, CTR ARM This part replaces 62-2420. Price: $70.22 |
| 9 |
532196577 |
DRIVE CONTROL CABLE This part replaces 532195792. Price: $54.99 |
| 9 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 10 |
105-3823 |
HYD CYLINDER ASM This part replaces 83-7230. Price: $493.03 |
| 10 |
532188356 |
RP.COVER.DRIVE.REAR.21.HV.GRAY This part replaces 532190565. Price: $27.99 |
| 11 |
237-21 |
O-RING This part replaces 237-35. Price: $0.70 |
| 11 |
532194188 |
SCREW This part replaces 532184571. Price: $3.99 |
| 12 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 12 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 13 |
532194186 |
SCREW.1/4-20X21/4.HEX. This part replaces 532183450. Price: $3.99 |
| 13 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 14 |
237-78 |
O-RING Price: $3.85 |
| 14 |
532187120 |
BEARING.SUPPORT.ASSEM Price: $32.99 |
| 15 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 16 |
532194124 |
SPRING.RETURN Price: $4.99 |
| 17 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 17 |
532189629 |
BRACKET, TRANSMISSION This part replaces 532191181. Price: $5.64 |
| 18 |
532163409 |
SCREW Price: $3.99 |
| 18 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 19 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 19 |
532194128 |
PULLEY This part replaces 532189408. Price: $17.99 |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 20 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 21 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 21 |
68-5380 |
CENTER LIFT ARM ASM Price: $205.86 |
| 22 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 22 |
532193791 |
PULLEY.IDLER.V-BELT Price: $12.99 |
| 23 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 23 |
532197480 |
O-RING..070X.487.NEOPRENE This part replaces 532188152. Price: $3.99 |
| 24 |
5-1226 |
WASHER Price: $3.90 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 26 |
532194123 |
ARM.IDLER.BZP This part replaces 532196542. Price: $8.99 |
| 27 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 27 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 28 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 28 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 29 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 29 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 30 |
322-1 |
SCREW-HH Price: $0.22 |
| 30 |
532183457 |
DUST COVER, WHEEL Price: $4.99 |
| 31 |
27-2540 |
EUB SPACER Price: $20.87 |
| 31 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 32 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 32 |
532192622 |
WHEEL.9X2.25.LP.TIGER.BLACK This part replaces 532192619. Price: $69.99 |
| 33 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 34 |
532183442 |
HUBCAP.WHEEL.5.SPOKE.SILVER This part replaces 532183695. Price: $4.99 |
| 35 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 35 |
532185994 |
KNOB.SELECTOR.SPRG.H-GRY (2 2) Price: $12.99 |
| 36 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 36 |
532188291 |
SPRING, TORSION Price: $3.99 |
| 37 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 37 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $4.99 |
| 38 |
3-1506 |
BUSHING Price: $2.42 |
| 38 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 39 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 39 |
532175103 |
GEAR, PINION Price: $10.99 |
| 40 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 40 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 41 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 41 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $5.99 |
| 42 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 42 |
532184172 |
SEAL.PINION Price: $5.99 |
| 43 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 43 |
532188508 |
LEVER, SELECTOR, HEIGHT, REAR This part replaces 532190520. Price: $7.99 |
| 44 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 44 |
532188509 |
SPRING.SELECTOR.FRONT This part replaces 532190518. Price: $5.99 |
| 45 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 46 |
532192232 |
WHEEL.9X2.25.LP.TIGER.BLK This part replaces 532192230. Price: $43.99 |
| 47 |
532183438 |
BUSHING.FRONT.TORQUE.SHAFT Price: $5.99 |
| 48 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 49 |
532192431 |
SHAFT.ASM.FRONT.TORQUE This part replaces 532196469. Price: $37.99 |
| 50 |
532183688 |
BELT.DRIVE.EZ.WALK.HI-VAC Price: $13.99 |
| 51 |
532414860 |
KIT.PINION.ASM This part replaces 532188331. Price: $76.99 |
| 52 |
532175102 |
RETAINER, DRIVE, RH Price: $5.99 |
| 53 |
532192138 |
AXLE.ASM.REAR.TORQUE.BZP This part replaces 532195995. Price: $29.99 |
| 54 |
532414860 |
KIT.PINION.ASM This part replaces 532188330. Price: $76.99 |
| 55 |
532189074 |
DECAL.DRIVE.CONTROL.HV Price: $5.99 |
