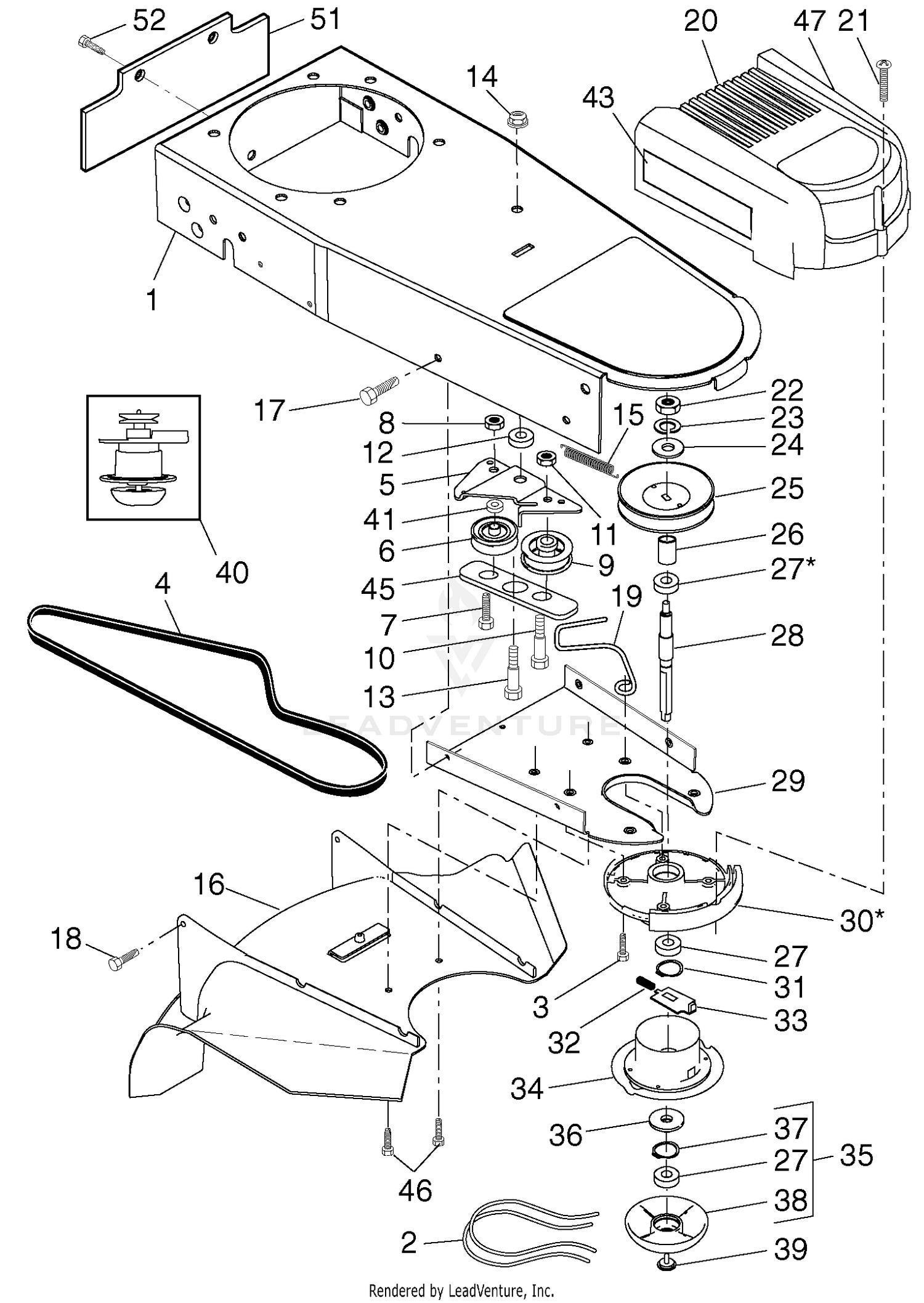

| Ref | Part Number | Description |
|---|
| 1 |
174031X421 |
Chassis Assembly Price: Call Us |
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
182133 |
Line, Trimmer .155 diameter x 18.75 long Price: Call Us |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 3 |
173715 |
Screw, Self-Tapping 5/16-18 x 1 Price: Call Us |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 4 |
185476 |
V-Belt Price: Call Us |
| 4 |
99-6940-03 |
AXLE SUPPORT ASM Price: $974.39 |
| 5 |
172145X004 |
Bracket, Idler Price: Call Us |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
166042 |
Pulley, Idler, V-Groove Price: Call Us |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 7 |
173716 |
Bolt, Hex Head 3/8-16 x 1.25 Price: Call Us |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 8 |
73930600 |
Locknut, Hex 3/8-16 Price: Call Us |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173-03. Price: $42.42 |
| 9 |
166043 |
Pulley, Idler, Flat Price: Call Us |
| 10 |
160829 |
Bolt, Shoulder Price: Call Us |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
73930500 |
Locknut, Hex 5/16-18 Price: Call Us |
| 12 |
173717 |
Spacer Price: Call Us |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 13 |
174719 |
Bolt, Shoulder Price: Call Us |
| 13 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 14 |
409149 |
Locknut, Flange Price: Call Us |
| 15 |
173811 |
Spring, Return Price: Call Us |
| 16 |
180268 |
Deflector, Bottom Price: Call Us |
| 17 |
17060410 |
Screw 1/4-20 x 1/2 Price: Call Us |
| 18 |
178848 |
Screw #10-24 x 3/4 Price: Call Us |
| 19 |
199574 |
Belt Keeper Price: Call Us |
| 20 |
178390 |
Cover, Chassis, Top Price: Call Us |
| 21 |
149746 |
Screw #10-24 x 1-3/4 Price: Call Us |
| 22 |
73610600 |
Nut, Hex 3/8-24 UNF Price: Call Us |
| 23 |
850263 |
Washer, Lock 3/8 Price: Call Us |
| 24 |
19121214 |
Washer, Flat 3/8 Price: Call Us |
| 25 |
180340 |
Pulley, Driven Price: Call Us |
| 26 |
172551 |
Spacer, Pulley Price: Call Us |
| 27 |
174549 |
Bearing Price: Call Us |
| 28 |
172520 |
Jackshaft Price: Call Us |
| 29 |
169766X479 |
Cover, Chassis, Bottom Price: Call Us |
| 31 |
174581 |
Ring, Retaining, External, 17mm Price: Call Us |
| 32 |
173973 |
Spring, Locking Plate Price: Call Us |
| 33 |
172519 |
Locking Plate Price: Call Us |
| 34 |
180338 |
Carrier Plate Assembly Price: Call Us |
| 36 |
172516 |
Cover, Bearing Price: Call Us |
| 37 |
174580 |
Ring, Retaining, Internal, 40mm Price: Call Us |
| 38 |
172523 |
Mow Ball Price: Call Us |
| 39 |
180334 |
Bolt, Mow Ball Price: Call Us |
| 41 |
174029 |
Spacer Price: Call Us |
| 43 |
174042 |
Decal, Instruction Price: Call Us |
| 45 |
174596X479 |
Belt Keeper, Bottom Price: Call Us |
| 46 |
17060408 |
Screw, Self-Tapping Price: Call Us |
| 47 |
174036 |
Decal, Instruction Price: Call Us |
| 51 |
189006 |
Deflector, Rear Price: Call Us |
