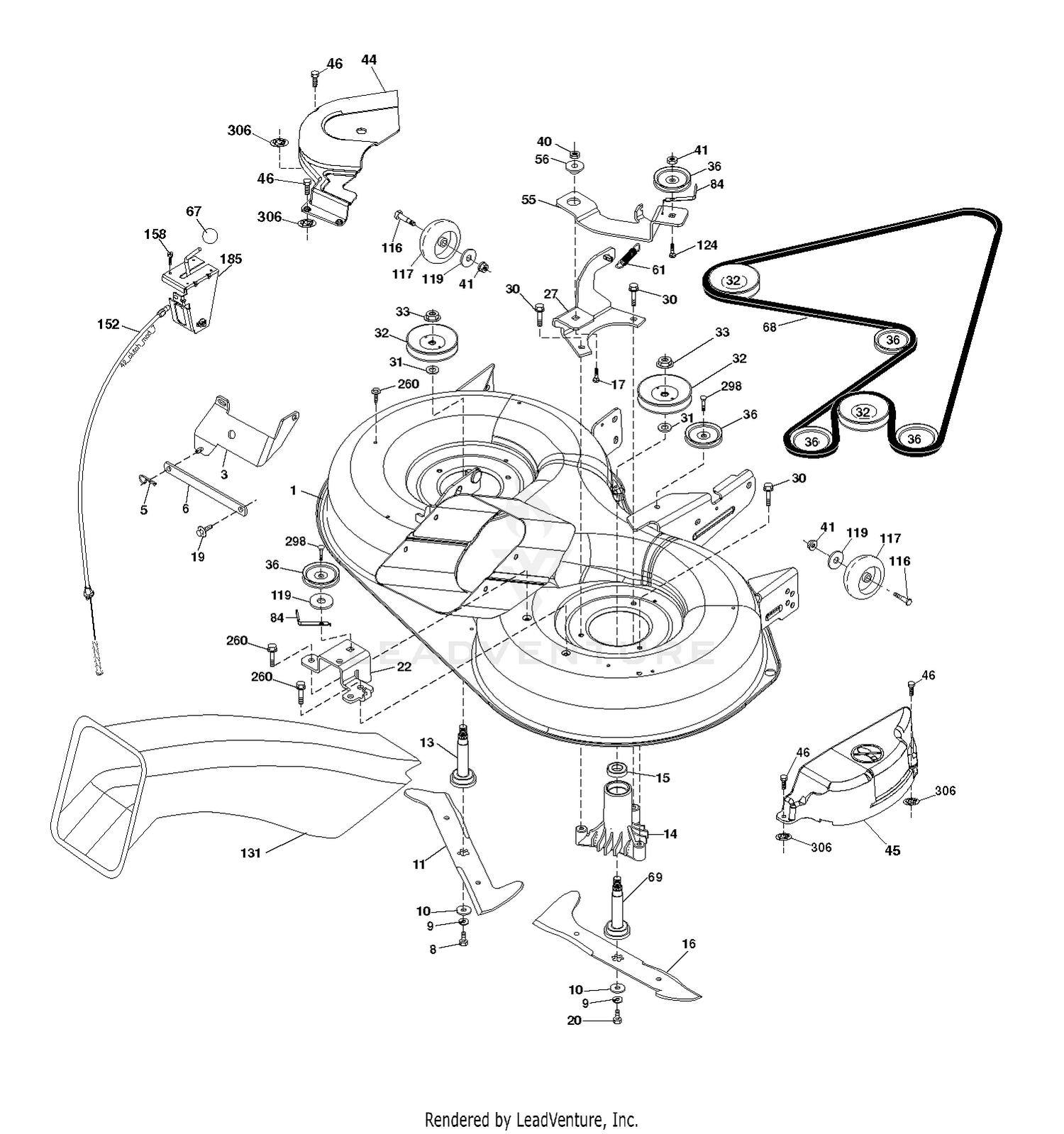

| Ref | Part Number | Description |
|---|
| 1 |
532429121 |
Price: $253.99 |
| 1 |
99-1900 |
PANEL-PORTS, TEST Price: $26.65 |
| 2 |
93-7422 |
HOSE ASM Price: $129.57 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $14.99 |
| 3 |
93-7193 |
HOSE ASM Price: $90.47 |
| 4 |
237-164 |
GROMMET Price: $16.34 |
| 5 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 6 |
532165557 |
BAR SWAY Price: $6.99 |
| 7 |
95-0821 |
DECAL-OIL, HYD Price: $6.99 |
| 8 |
532181712 |
Bolt 3/8-24 x 1.25 Gr. 8 Patched Price: $1.99 |
| 8 |
69-6070 |
TUBE-HYD Price: $115.22 |
| 9 |
106-0062 |
TUBE-HYD Price: $129.29 |
| 9 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 10 |
532140296 |
WASHER.BLADE Price: $2.99 |
| 10 |
69-6080 |
TUBE-HYD Price: $115.22 |
| 11 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $41.99 |
| 11 |
69-5800 |
TUBE-HYD Price: $94.76 |
| 12 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 13 |
71-2560-03 |
SUPPORT-BULKHEAD Price: $22.67 |
| 14 |
240-6 |
GROMMET-RUBBER Price: $15.80 |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 15 |
69-8990 |
SPACER Price: $12.49 |
| 16 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $41.99 |
| 16 |
69-8980 |
WASHER Price: $0.58 |
| 17 |
340-78 |
NUT-LOCK Price: $1.63 |
| 17 |
872140610 |
BOLT.3/8-14X1.25 Price: $2.99 |
| 18 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
| 19 |
340-128 |
NUT-BULKHEAD Price: $6.11 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
532181713 |
Bolt 3/8-24 x 1.25 Gr. 8 Ptch Price: $1.99 |
| 20 |
93-7038 |
SWITCH-TRANSPORT Price: $325.67 |
| 21 |
69-0940 |
DECAL-CAUTION Price: $38.25 |
| 22 |
532431169 |
BRACKET.SUPT.IDLER.REAR.RH Price: $4.99 |
| 22 |
98-4387 |
DECAL-PROTECTION, EAR Price: $6.06 |
| 23 |
3269-25 |
RIVET-POP Price: $0.27 |
| 24 |
353-997 |
FITTING Price: $78.20 |
| 25 |
354-79 |
CAP-DUST Price: $7.81 |
| 26 |
69-8920 |
WASHER Price: $3.19 |
| 27 |
532427981 |
BRACKET.ASM.SUSP.REAR.RH. Price: $19.99 |
| 27 |
69-8950 |
SPACER Price: $18.52 |
| 28 |
240-2 |
GROMMET-RUBBER Price: $20.20 |
| 29 |
106-0060 |
ADAPTER-HYD Price: $71.97 |
| 30 |
532173984 |
SCREW, WASHER HEAD Price: $2.99 |
| 30 |
69-5910 |
TUBE-HYD Price: $44.05 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.YELLOW This part replaces 532153532. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 36 |
532146763 |
PULLEY.IDLER.4.25 Price: $14.99 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 41 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 44 |
532431170 |
OVER.MANDREL.LH.CRD Price: $14.99 |
| 45 |
532429166 |
COVER.MANDREL.RH.97.CRD Price: $11.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.49 |
| 55 |
532199498 |
Arm Idler Price: $18.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $2.99 |
| 61 |
532199486 |
Price: $2.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532429532 |
BELT.DRIVE.CRD.97.2010 Price: $76.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $35.99 |
| 84 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8 Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 119 |
819132012 |
WASHER Price: $2.99 |
| 124 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $57.99 |
| 152 |
532176074 |
Cable Clutch Price: Call Us |
| 158 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $33.99 |
| 260 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 298 |
817490628 |
SCREW LT Price: $3.99 |
| 306 |
532423062 |
PALNUT 1/4 Price: $2.99 |
