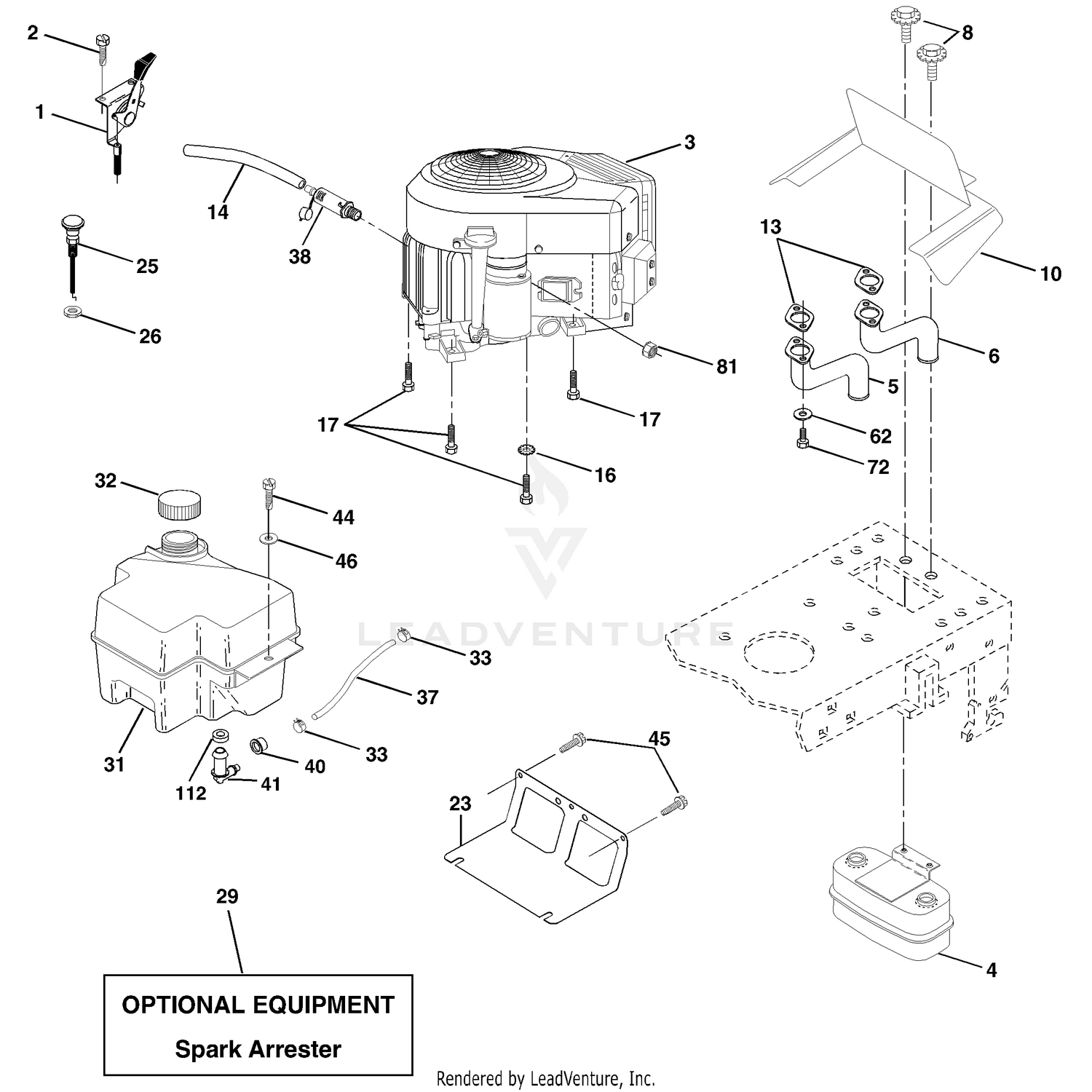

| Ref | Part Number | Description |
|---|
| 1 |
170771 |
Control, Throttle Price: Call Us |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 2 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 3 |
53-4430 |
DECAL-OIL Price: $8.99 |
| 4 |
149723 |
Muffler, Asm. Twin Lo-Tone Price: Call Us |
| 4 |
93-7836 |
DECAL-PEDAL, TRACTION This part replaces 27-7320. Price: $14.38 |
| 5 |
160589 |
Pipe Exhaust Intek 20 RH Price: Call Us |
| 5 |
70-2200 |
DECAL Price: $5.09 |
| 6 |
159955 |
Pipe Exhaust Intek 20 LH Price: Call Us |
| 6 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 7 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 8 |
171877 |
Bolt 5/16-18 UNC x 3/4 w/Sems Price: Call Us |
| 8 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 9 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 10 |
162797 |
Shield Browing B&S Intek II Price: Call Us |
| 10 |
32128-21 |
NUT-HF Price: $0.39 |
| 11 |
98-3866-01 |
BRACE-UPPER Price: $164.20 |
| 12 |
98-3865-01 |
BRACE-RIGHT, LOWER Price: $104.46 |
| 13 |
165391 |
Muffler Gasket Price: Call Us |
| 13 |
98-3864-01 |
BRACE-LEFT, LOWER Price: $107.85 |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 14 |
3290-472 |
NUT-CLINCH Price: $5.04 |
| 15 |
256-126 |
BUSHING Price: $9.36 |
| 16 |
11050600 |
Washer, Lock Ext tooth 3/8 Price: Call Us |
| 17 |
17060624 |
Screw 3/8-16 x 1-1/2 Price: Call Us |
| 23 |
169837 |
Shield, Browning/Debris Guard Price: Call Us |
| 25 |
145996 |
Control Choke Price: Call Us |
| 26 |
73920600 |
Nut Keps 3/8-24 UNF Price: Call Us |
| 29 |
137180 |
Arrester, Spark Price: Call Us |
| 31 |
180645 |
Tank, Fuel Price: Call Us |
| 32 |
140527 |
Cap Gauge, Fuel Price: Call Us |
| 33 |
123487X |
Clamp, Hose Blk Price: Call Us |
| 37 |
137040 |
Line, Fuel 7.5 Price: Call Us |
| 38 |
148315 |
Plug Drain Oil Easy Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 41 |
139277 |
Stem Tank Fuel Price: Call Us |
| 44 |
17670412 |
Screw Hex Wsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 62 |
10040500 |
Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us |
| 72 |
71070512 |
Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
| 81 |
73510400 |
Nut Keps Hex 1/4-20 Unc Price: Call Us |
