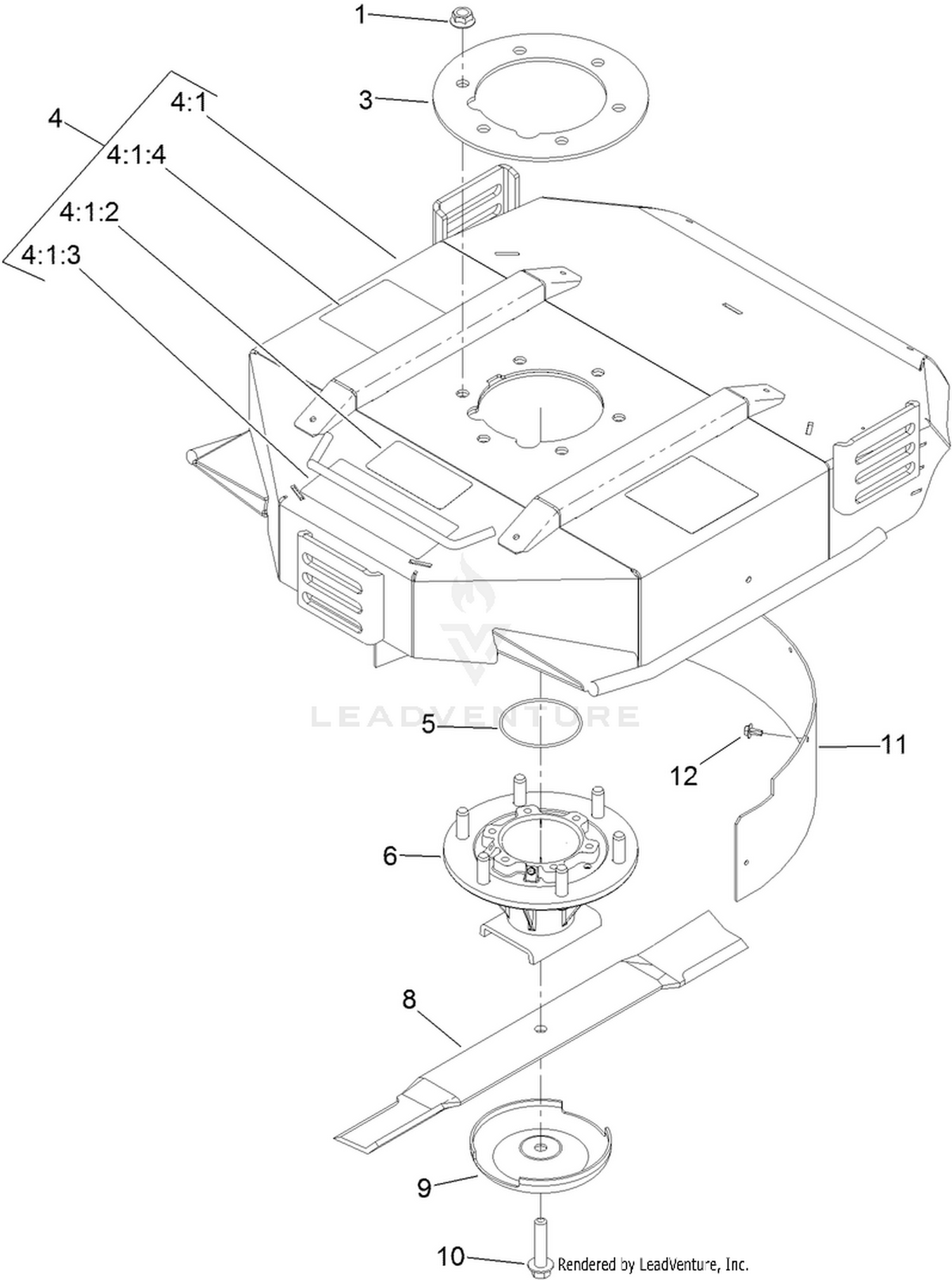

Spindle, Blade and Chamber Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32128-39 | NUT-HHF Price: $0.70 |
| 3 | 104-1051-03 | PLATE-SPINDLE Price: $59.54 |
| 4 | 138-1227 | DECK CHAMBER ASM Price: $1,421.40 |
| 5 | 237-161 | O-RING Price: $6.06 |
| 6 | 121-3666 | SPINDLE ASM Price: $391.32 |
| 8 | 108-7395-03 | BLADE-COMBO, 22IN Price: $29.99 |
| 8 | 114-0434-03 | BLADE-HIGH LIFT, 22IN Price: $40.07 |
| 8 | 114-0435-03 | BLADE-ATOMIC, 22IN Price: $40.07 |
| 8 | 117-0209-03 | BLADE-ANGLE SAIL, 22IN Price: $38.49 |
| 9 | 72-9361 | CUP-SCALP, ANTI Price: $39.78 |
| 10 | 92-5816 | BOLT-BLADE Price: $4.93 |
| 11 | 108-7409-01 | BAFFLE-MULCHING Price: $123.78 |
