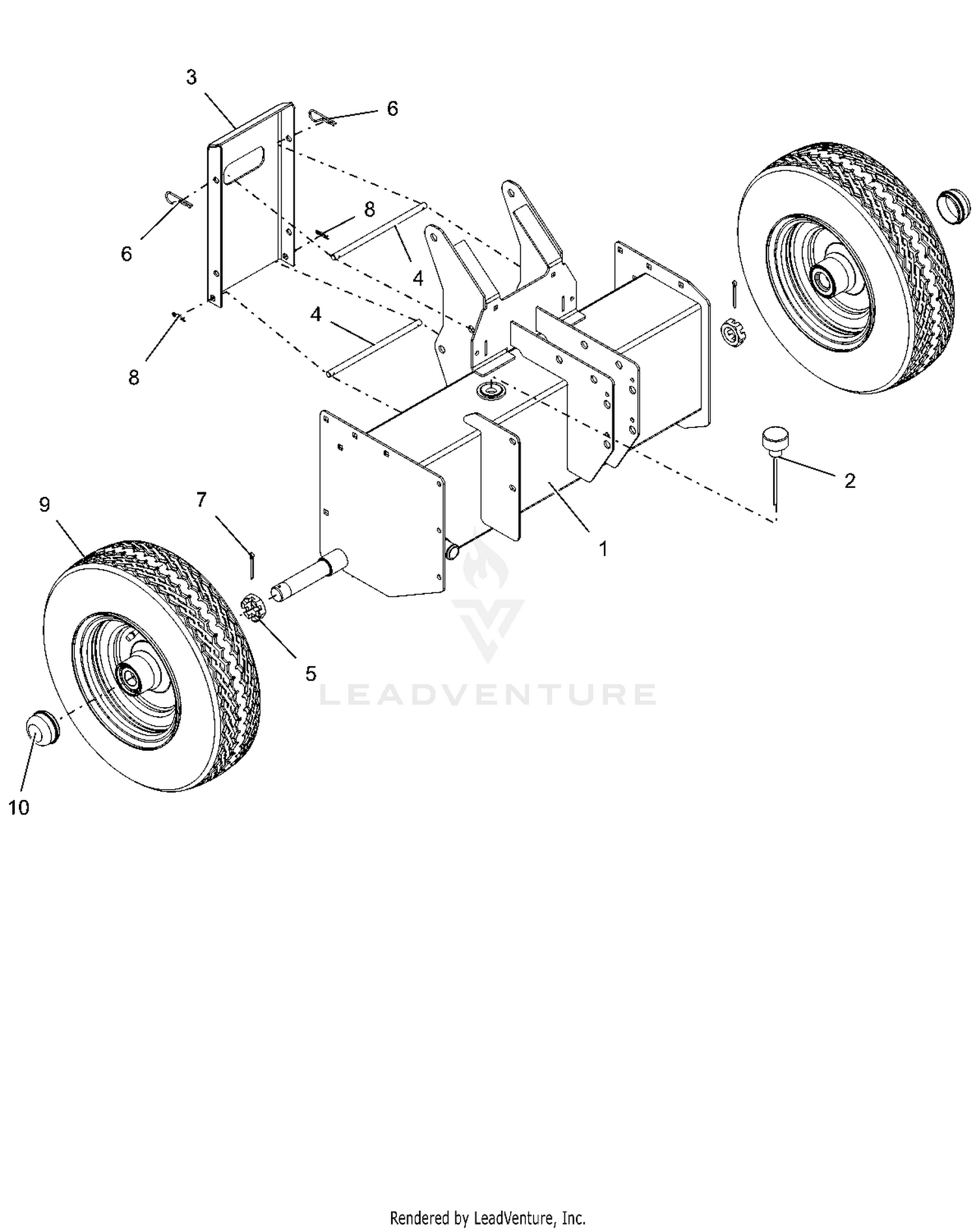

| Ref | Part Number | Description |
|---|
| 1 |
27-3710 |
DIPSTICK Price: $24.62 |
| 1 |
51704900 |
CHASSIS-SPLIT W/SFTY DECAL-22T Price: $450.00 |
| 2 |
00463000 |
BREATHER, DIPSTICK Price: $32.95 |
| 2 |
3219-2 |
NUT-HEX Price: $0.37 |
| 3 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 3 |
51700400 |
REAR STAND W/DECALS (ARIENS) Price: $85.95 |
| 4 |
04852351 |
PIN, .373 X 7.30 X 2X.109 THRU Price: $22.95 |
| 4 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 5 |
06513100 |
NUT-SL 1.0-14 Price: $5.45 |
| 5 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 6 |
06700215 |
PIN, HAIR-#7 .094X2.31 ZC120 This part replaces 06712900. Price: $5.95 |
| 6 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 7 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 8 |
06700223 |
PIN, HAIR #225 .072X1.09 This part replaces 06714800. Price: $0.45 |
| 8 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 9 |
07101210 |
ASM,TIRE/WHEEL 4.8/4-8 P47GRAY Price: $109.95 |
| 9 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 10 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 11 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 13 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 14 |
92-1773 |
SCREW-HHF This part replaces 324-23. Price: $3.05 |
| 15 |
12-5450 |
SCREW Price: $7.99 |
| 16 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 17 |
86-7230 |
GEAR-INPUT, TRANSMISSION This part replaces 21-8150. Price: $610.12 |
| 18 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 19 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 20 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 21 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 22 |
43-6860 |
DISCONTINUED Price: Call Us |
| 23 |
3210-7 |
SCREW-HH Price: $0.61 |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 26 |
43-6550 |
RING-SNAP Price: $0.94 |
| 27 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 28 |
46-2210 |
SHIM-BEARING, FRONT Price: $6.91 |
| 29 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 31 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 32 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 33 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 34 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 35 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 36 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 38 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 40 |
46-3330 |
DISCONTINUED Price: Call Us |
| 41 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 42 |
289-38 |
PIPE NIPPLE Price: $21.73 |
| 43 |
43-6850 |
LOWER HSG , TUBE AND MTG. PAD WA. Price: $1,457.56 |
