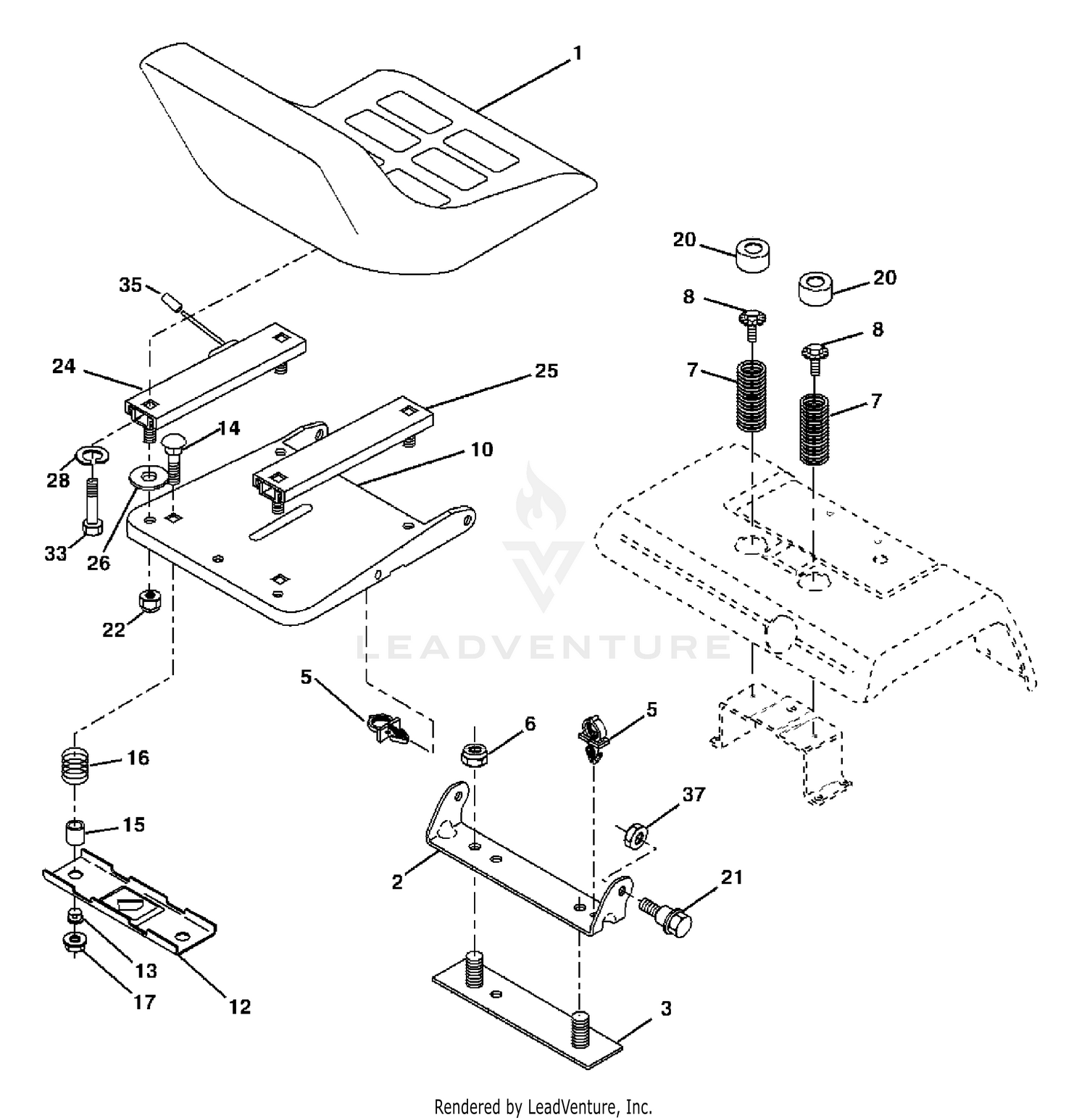

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 1 |
98-9321 |
RING-KEY Price: $1.80 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
98-9315 |
LATCH-LOCKING Price: $117.46 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 3 |
98-9316 |
LATCH-HOOD Price: $61.25 |
| 4 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 6 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
98-9746 |
HOOD ASM Price: $1,782.58 |
| 9 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 10 |
321-4 |
SCREW-HH Price: $0.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $8.99 |
| 13 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
75-0570 |
CABLE-HOOD Price: $16.66 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
98-4573-03 |
SCREEN-HOOD, REAR Price: $74.71 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
98-4521 |
DISCONTINUED Price: Call Us |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 19 |
321-39 |
SCREW-HH Price: $0.42 |
| 20 |
532124238 |
CAP SPRING Price: $4.99 |
| 20 |
62-7400 |
DECAL Price: $24.54 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
92-5751 |
DECAL-HOOD, LH Price: $34.66 |
| 22 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
92-5752 |
DECAL-HOOD, RH Price: $34.66 |
| 23 |
63-6900-01 |
LH HOOD HINGE PLATE ASM Price: $23.15 |
| 24 |
532177946 |
TRACK SLIDE, SEAT(L) Price: $59.99 |
| 24 |
63-6890-01 |
RH HOOD HINGE PLATE ASM Price: $12.36 |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 25 |
532177947 |
TRACK SLIDE, SEAT(R) Price: $119.99 |
| 26 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 26 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 28 |
810010500 |
WASHER Price: $3.99 |
| 33 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 35 |
583670601 |
CAP.VINYL.BLK.SERVICE This part replaces 532178426. Price: $2.99 |
| 52 |
98-9314 |
GROMMET Price: $15.98 |
| 55 |
93-0081 |
STRIP-SEAL Price: $73.83 |
| 57 |
99-8975 |
STRIP-SEAL Price: $5.37 |
