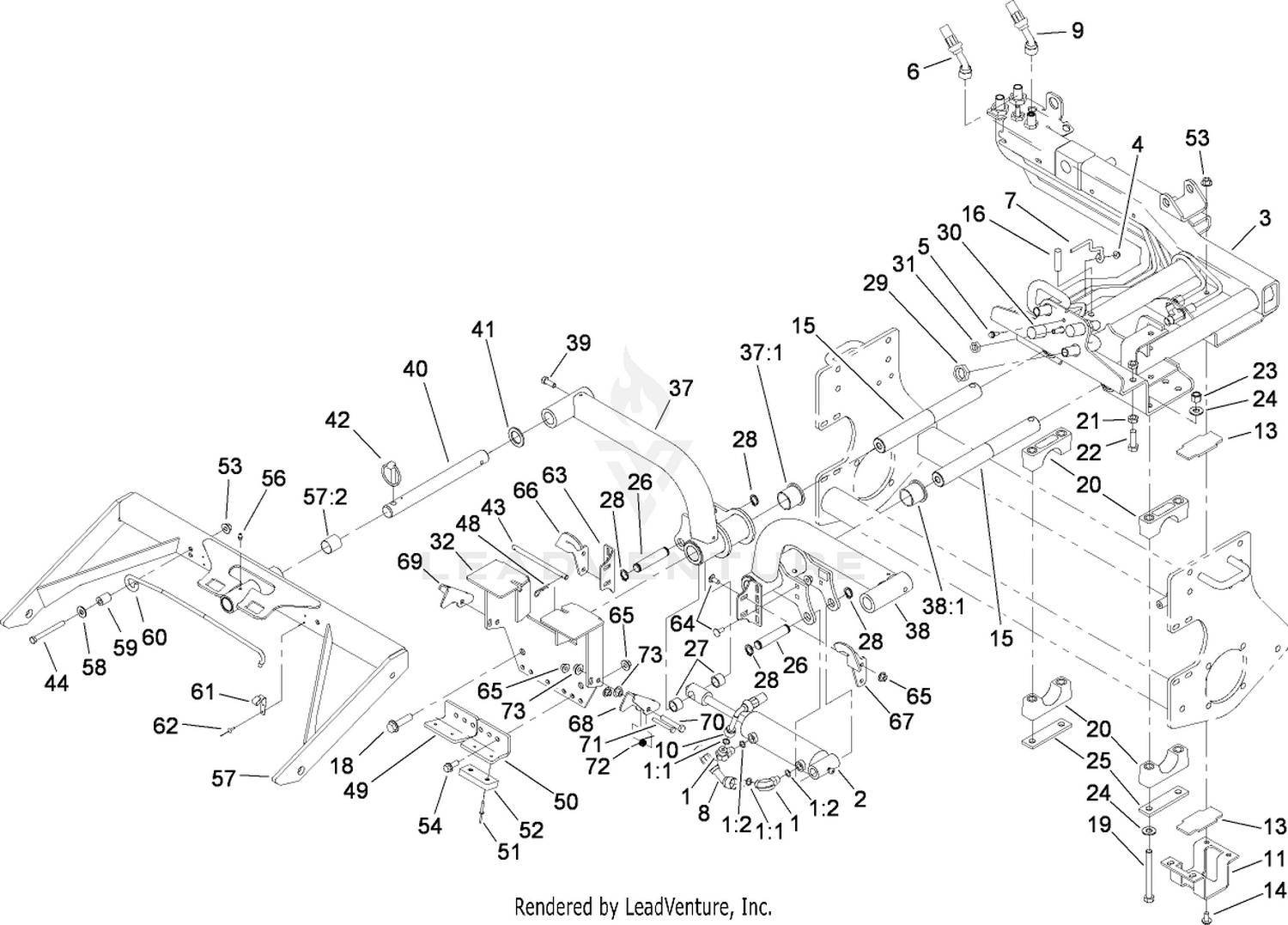

| Ref | Part Number | Description |
|---|
| 1 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 2 |
112-9916 |
HYD CYLINDER ASM Price: $752.66 |
| 3 |
100-4939-03 |
CARRIER-SIDEWINDER Price: $1,133.42 |
| 4 |
32128-33 |
NUT-HF Price: $0.25 |
| 5 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 6 |
95-8822 |
HOSE-HYD Price: $139.11 |
| 7 |
99-3433 |
WIRE-CENTER Price: $19.58 |
| 8 |
104-0405 |
HOSE-HYD Price: $144.63 |
| 9 |
95-8822 |
HOSE-HYD This part replaces 95-8821. Price: $139.11 |
| 10 |
104-0406 |
HOSE-HYD Price: $148.06 |
| 11 |
104-0416-0P |
BRACKET-SLIDE This part replaces 104-0416-03. Price: $89.86 |
| 13 |
104-0417 |
SLIDE-PLASTIC Price: $9.00 |
| 14 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 15 |
95-8531 |
SHAFT-PIVOT, LIFTARM Price: $139.66 |
| 16 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 18 |
3234-27 |
SCREW-HHF Price: $5.97 |
| 19 |
325-19 |
SCREW-HH Price: $2.57 |
| 20 |
104-4865 |
CAP-BEARING Price: $56.97 |
| 21 |
3218-5 |
NUT-JAM Price: $0.27 |
| 22 |
325-6 |
SCREW-HH Price: $1.42 |
| 23 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 24 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 25 |
99-3373 |
BAR-SUPPORT, SLIDE Price: $9.76 |
| 26 |
95-8575 |
PIN-CLEVIS Price: $15.31 |
| 27 |
75-9590 |
SPACER-CYLINDER Price: $6.55 |
| 28 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 29 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 30 |
99-3640 |
TUBE ASM Price: $127.70 |
| 31 |
340-78 |
NUT-LOCK Price: $1.63 |
| 32 |
104-4820-03 |
BRACKET-STOP, CARRIER Price: $200.26 |
| 37 |
136-3419 |
RH LIFTARM ASM This part replaces 115-3462. Price: $243.79 |
| 38 |
136-3417 |
LH LIFTARM ASM This part replaces 115-3461. Price: $243.79 |
| 39 |
323-6 |
SCREW-HH Price: $0.66 |
| 40 |
95-8979 |
SHAFT Price: $62.44 |
| 41 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 42 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 43 |
104-0472 |
ROD Price: $44.63 |
| 44 |
323-15 |
SCREW-HH Price: $1.53 |
| 48 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 49 |
110-8793-03 |
STOP-DECK, RH Price: $37.69 |
| 50 |
110-8794-03 |
STOP-DECK, LH Price: $37.69 |
| 51 |
3269-11 |
RIVET-POP Price: $0.68 |
| 52 |
86-5350 |
BUMPER-RUBBER Price: $46.29 |
| 53 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 54 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 56 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 57 |
110-8787 |
FRONT CARRIER FRAME ASM Price: $525.65 |
| 58 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 59 |
104-4613 |
TUBE-LATCH Price: $7.38 |
| 60 |
104-4612 |
ROD-LATCH Price: $52.35 |
| 61 |
104-4237 |
CLIP-ROD Price: $27.28 |
| 62 |
3290-271 |
RIVET-POP Price: $0.25 |
| 63 |
104-4828-03 |
BRACKET-ACTUATOR Price: $21.55 |
| 64 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 65 |
32128-44 |
NUT Price: $2.69 |
| 66 |
104-4826-03 |
ACTUATOR-RH Price: $30.11 |
| 67 |
104-4827-03 |
ACTUATOR-LH Price: $28.51 |
| 68 |
104-4819-03 |
BRACKET-PIVOT, LH Price: $37.66 |
| 69 |
104-4825-03 |
BRACKET-PIVOT, RH Price: $37.66 |
| 70 |
323-11 |
SCREW-HH Price: $1.08 |
| 71 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 72 |
104-4821 |
SPRING-TORSION Price: $6.26 |
