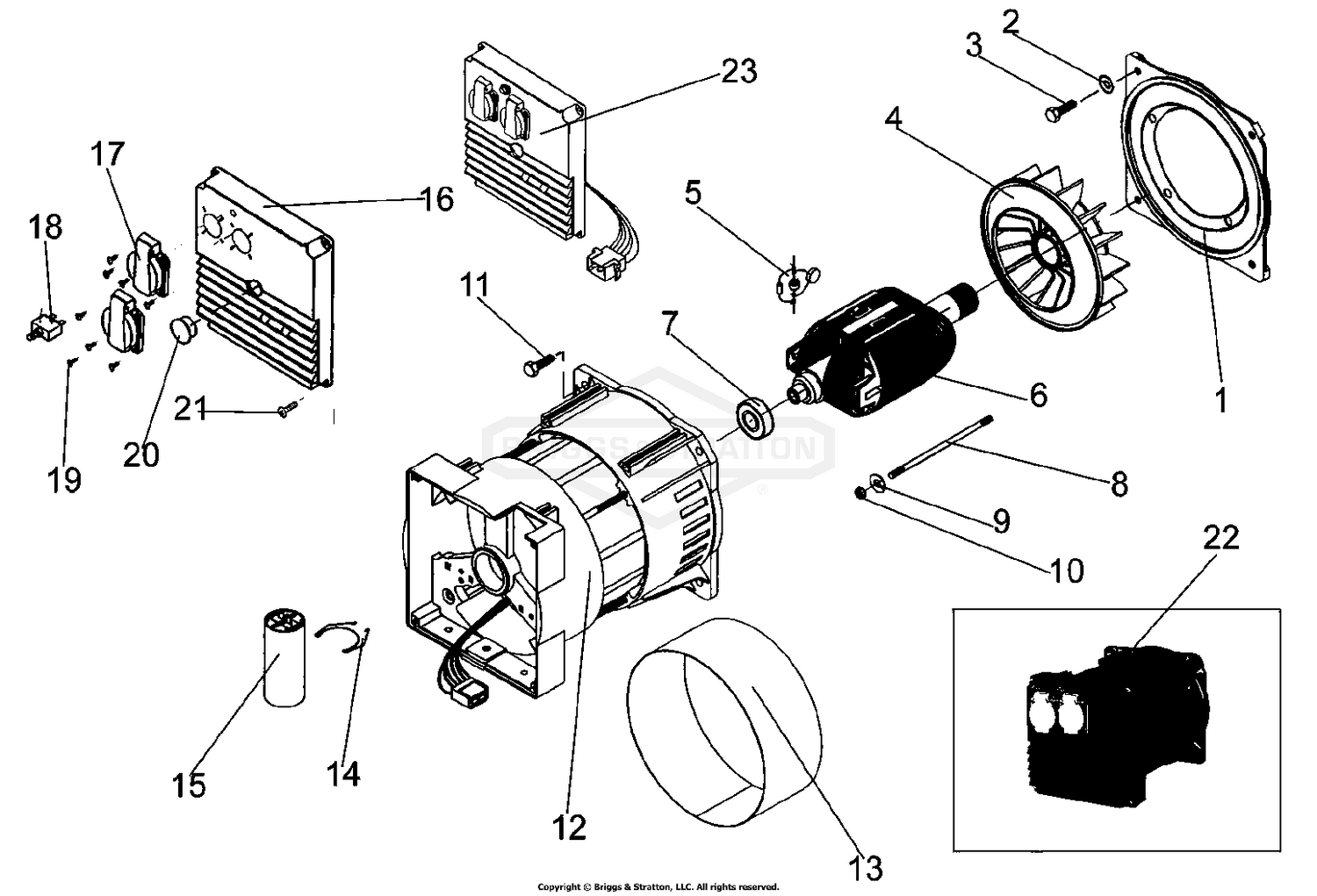

Alternator & Outlet Panel

Alternator & Outlet Panel

Parts (22)

RefPart NumberDescription
1 102138GS FLANGE PLATE Price: Call Us
2 ~NSP WASHER LOCK M10/ 3/8 OXY BLACK Price: Call Us
3 ~NSP SCREW CAP 3/8" UNC X 1" Price: Call Us
4 102073GS ROTOR FAN SINCRO Price: Call Us
5 B4916GS KIT-CAPACITOR DIODE & VAR This part replaces 102052GS. Price: $18.55
6 102217GS ROTOR ASSY SINCRO GP3.5 Price: Call Us
7 102038GS ROTOR BEARING Price: Call Us
8 102160GS ROTOR BOLT 265MM M8-1.25 Price: Call Us
9 ~NSP WASHER FLAT M8 & 5/16" Price: Call Us
10 ~NSP NUT NYLOCK M8-1.25 TYPE T Price: Call Us
11 ~NSP SCREW SET 5/16"UNF X 3/4" Price: Call Us
12 102218GS STATOR ASSEMBLY SINCRO GP3.5/EP4.2 Price: Call Us
13 ~NSP STATOR COVER BAND Price: Call Us
14 ~NSP CAPACITOR CLIP EP SERIES Price: Call Us
15 102219GS CAPACITOR 31.5UF Price: Call Us
16 102075GS OUTLET PANEL BLANK (FITTINGS REMOVED) Price: Call Us
17 102030GS SOCKET OUTLET G/S Price: Call Us
18 102220GS CIRCUIT BREAKER 18 AMP Price: Call Us
19 ~NSP SCREW PLASTITE PPHD NO6 * 3/8" Price: Call Us
20 102085GS END CAP PLASTIC PLUG Price: Call Us
21 ~NSP SCREW MC PPHD M5*10MM Price: Call Us
22 102221GS ALTERNATOR SINCRO EP4.2 G/S Price: Call Us
