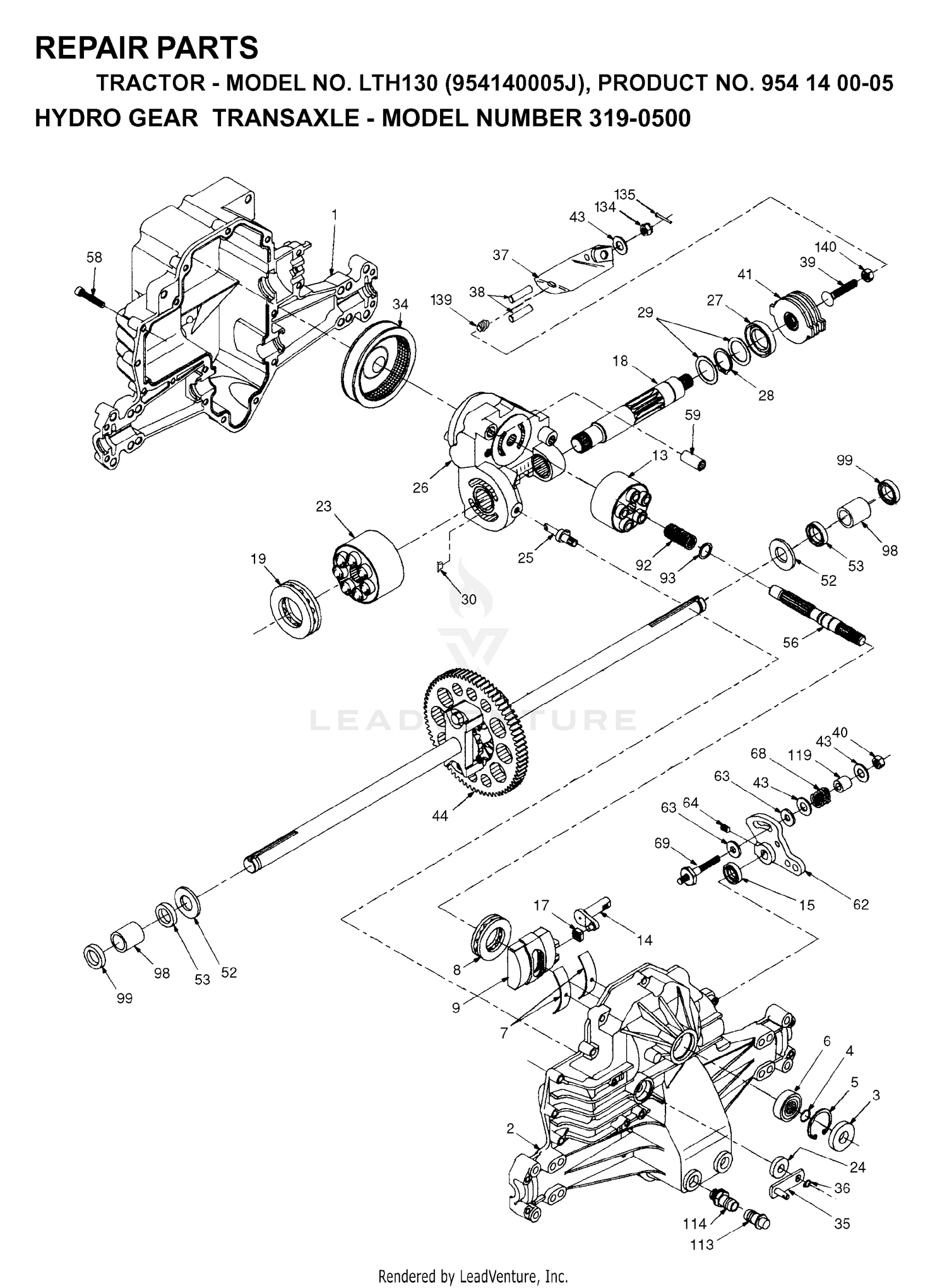

| Ref | Part Number | Description |
|---|
| 1 |
127-3005 |
SHAFT ASM Price: $839.73 |
| 1 |
142986 |
Housing, Lower Price: Call Us |
| 2 |
127-3006 |
SHAFT Price: Call Us |
| 2 |
142987 |
Assembly, Upper Housing Price: Call Us |
| 3 |
142932 |
Seal, Lip Price: Call Us |
| 4 |
127-2974 |
SUPPORT Price: $53.59 |
| 5 |
127-2975 |
SUPPORT Price: $47.41 |
| 6 |
127-2995 |
SPRING Price: Call Us |
| 7 |
127-2989 |
ARM-ROCKER Price: $60.07 |
| 8 |
125-7013 |
SCREW-ADJUST, VALVE Price: $23.90 |
| 8 |
150771 |
Bearing, Thrust 30 x 52 x 13 Price: Call Us |
| 10 |
125-7014 |
NUT Price: $5.25 |
| 11 |
127-3183 |
STUD Price: Call Us |
| 12 |
127-2996 |
CAP-VALVE Price: $4.75 |
| 13 |
127-3132 |
CYLINDER HEAD ASM Price: $2,781.38 |
| 15 |
142940 |
Seal, Lip Price: Call Us |
| 18 |
150772 |
Shaft, Motor Price: Call Us |
| 19 |
150773 |
Bearing, Thrust 42 x 68 x 16 Price: Call Us |
| 21 |
125-7240 |
PLUG Price: $4.06 |
| 22 |
127-2990 |
VALVE Price: $79.71 |
| 23 |
127-3012 |
SPRING Price: Call Us |
| 23 |
142944 |
Block, Cylinder Assembly Price: Call Us |
| 24 |
127-2994 |
VALVE Price: $56.09 |
| 24 |
142945 |
Seal, Lip 10 x 25 x 7 Price: Call Us |
| 25 |
127-3013 |
RETAINER-SPRING Price: Call Us |
| 25 |
142946 |
Actuator, Bypass Price: Call Us |
| 26 |
127-2986 |
SEAL-STEM, VALVE Price: $6.38 |
| 26 |
150774 |
Center Section Assembly Kit Price: Call Us |
| 27 |
127-3027 |
SEAL-STEM, VALVE Price: $6.79 |
| 27 |
142948 |
Seal, Lip 26 x 42 x 8 Price: Call Us |
| 28 |
127-3186 |
PIN-COTTER Price: $15.91 |
| 28 |
142949 |
Ring, Retaining Price: Call Us |
| 29 |
142950 |
Washer 26 x 35 x 1 Price: Call Us |
| 30 |
127-3021 |
GASKET-INJECTOR Price: $4.54 |
| 31 |
127-3028 |
RETAINER-INJECTOR Price: $66.10 |
| 32 |
127-2980 |
WASHER-INJECTOR Price: $17.55 |
| 33 |
125-7184 |
PIN-SPRING Price: $3.48 |
| 34 |
125-7215 |
BOLT Price: $3.48 |
| 34 |
142951 |
Oil Filter Element Price: Call Us |
| 35 |
125-7217 |
BOLT Price: $4.58 |
| 35 |
142952 |
Arm, Bypass Price: Call Us |
| 36 |
125-7220 |
BOLT Price: $4.99 |
| 36 |
142953 |
Ring, Retaining Price: Call Us |
| 37 |
138-7828 |
HEAD COVER ASM This part replaces 127-3131. Price: $657.30 |
| 37 |
142954 |
Arm, Actuating Price: Call Us |
| 38 |
127-2988 |
PLATE Price: $158.07 |
| 38 |
142955 |
Pin, Actuating Price: Call Us |
| 39 |
125-7012 |
BAFFLE Price: $5.18 |
| 39 |
150777 |
Bolt 5/16-24 x 1-3/4 Price: Call Us |
| 40 |
125-6959 |
DIAPHRAGM Price: $52.40 |
| 40 |
150778 |
Nut, Nylon Insert Hex Lock 5/16-24 Price: Call Us |
| 41 |
125-6960 |
PLATE Price: $16.14 |
| 41 |
142958 |
Brake Rotor/Stator Kit Price: Call Us |
| 42 |
125-6961 |
PLATE-BREATHER Price: $28.15 |
| 43 |
125-6962 |
SPRING-DIAPHRAGM Price: $18.13 |
| 43 |
142884 |
Washer 7/8 O.D. x 7/16 x .060 Price: Call Us |
| 44 |
142990 |
Differential Assembly Price: Call Us |
| 45 |
127-3106 |
GASKET-COVER Price: $49.95 |
| 46 |
127-3026 |
JOINT Price: $53.61 |
| 47 |
125-6994 |
SPRING Price: $3.26 |
| 48 |
127-3029 |
SENSOR-PRESSURE Price: $831.65 |
| 49 |
127-3032 |
O RING-SENSOR, PRESSURE Price: $18.19 |
| 50 |
127-3040 |
HOSE ASM Price: $94.27 |
| 52 |
127-3041 |
CLIP-HOSE Price: $23.63 |
| 52 |
142991 |
Washer 3/4 x 1.5 x .13 Price: Call Us |
| 53 |
125-6913 |
PLUG Price: $8.22 |
| 53 |
142961 |
Seal .75 x 1.25 x .250 Price: Call Us |
| 54 |
125-7186 |
SCREW Price: $2.74 |
| 55 |
125-7186 |
SCREW Price: $2.74 |
| 56 |
125-7186 |
SCREW Price: $2.74 |
| 56 |
142963 |
Shaft, Input Price: Call Us |
| 57 |
127-3184 |
BOLT Price: $4.58 |
| 58 |
125-6974 |
KNOB Price: $6.62 |
| 58 |
142964 |
Bolt 1/4-20 x 1.38 Price: Call Us |
| 59 |
127-2978 |
PLUG Price: $6.30 |
| 59 |
142965 |
Pin .5 OD x .43 ID x .750 Price: Call Us |
| 60 |
93-0418 |
O-RING Price: $7.29 |
| 61 |
127-3128 |
JOINT-BREATHER Price: $97.89 |
| 62 |
127-3129 |
BREATHER HOSE ASM Price: $65.12 |
| 62 |
142966 |
Arm, Control Price: Call Us |
| 63 |
142967 |
Puck, Dampener Price: Call Us |
| 64 |
125-7040 |
CLIP-HOSE Price: $8.13 |
| 64 |
142920 |
Set Screw Price: Call Us |
| 66 |
127-3133 |
HOSE-INTAKE Price: $33.17 |
| 67 |
127-3030 |
SENSOR-TEMP, AIR Price: $199.61 |
| 68 |
127-3033 |
O-RING Price: $13.39 |
| 68 |
142969 |
Spring Price: Call Us |
| 69 |
125-7190 |
CLAMP-HOSE Price: $12.29 |
| 69 |
144610 |
Stud 5/16-24 Price: Call Us |
| 70 |
125-7208 |
BOLT Price: $3.77 |
| 71 |
127-3130 |
LIFTER-ENGINE Price: $37.83 |
| 72 |
125-7214 |
BOLT Price: $3.77 |
| 73 |
127-2991 |
PLUG-GLOW Price: $154.53 |
| 74 |
127-3123 |
CONNECTOR-GLOW PLUG Price: $57.73 |
| 75 |
127-2979 |
GUIDE Price: $29.24 |
| 92 |
142977 |
Spring, helical compression Price: Call Us |
| 93 |
142978 |
Washer, Block Thrust Price: Call Us |
| 98 |
142993 |
Sleeve Bearing Price: Call Us |
| 99 |
142976 |
Seal, Wiper Price: Call Us |
| 113 |
142917 |
Cap, Vent Assembly Price: Call Us |
| 114 |
142918 |
Fitting, O-Ring Assembly Price: Call Us |
| 119 |
142980 |
Spacer Price: Call Us |
| 134 |
144607 |
Nut, Castle 5/16-24 Price: Call Us |
| 135 |
144608 |
Pin, Cotter Price: Call Us |
| 139 |
150775 |
Spring, Compression Price: Call Us |
| 140 |
150776 |
Nut, Hex 5/16-24 Price: Call Us |
