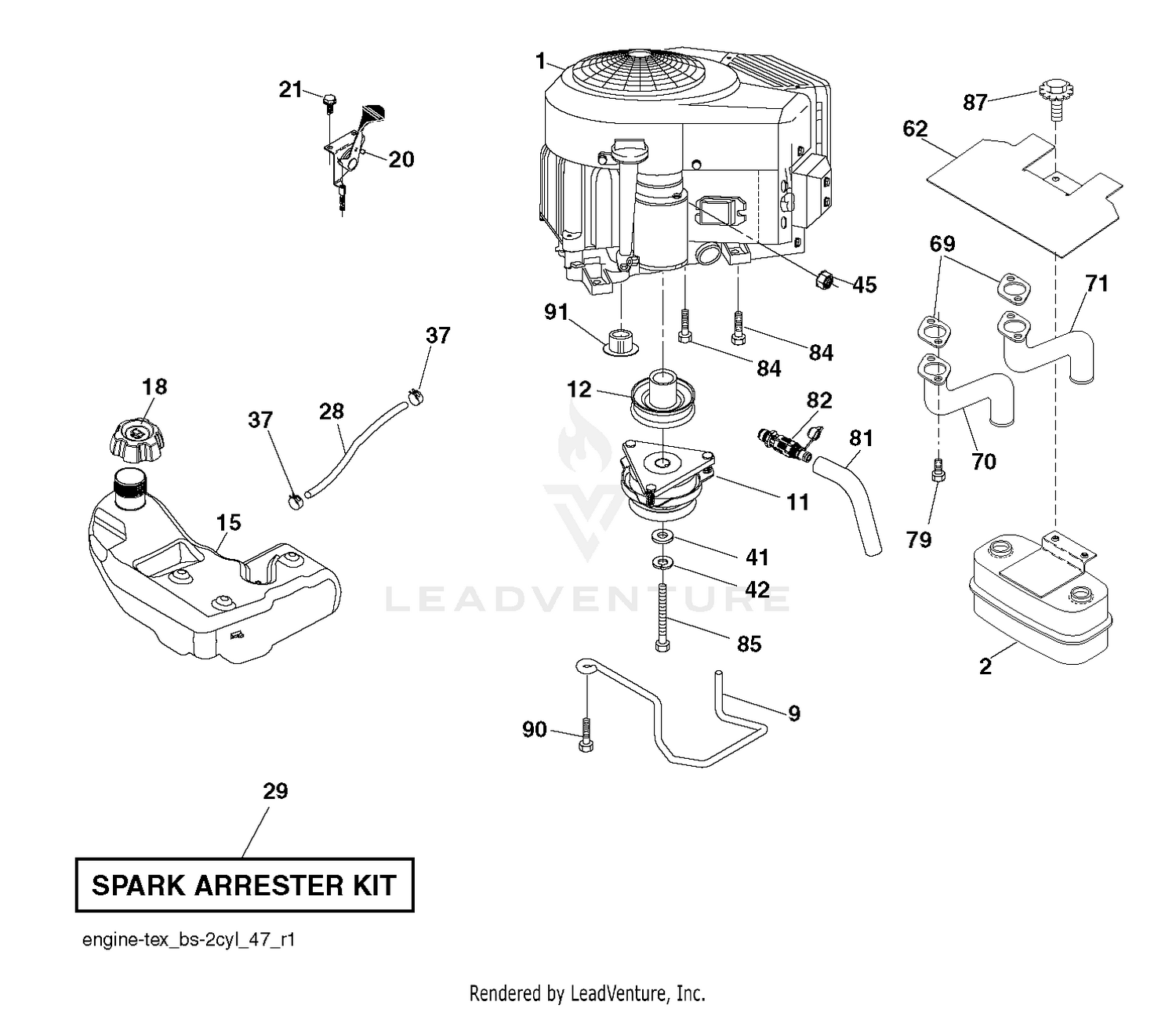

| Ref | Part Number | Description |
|---|
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 2 |
104-3548 |
PULLEY-DRIVEN, HIGH Price: $157.35 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $45.99 |
| 3 |
112-8446 |
SEAL-V RING This part replaces 104-3564. Price: $4.26 |
| 4 |
119-4546 |
SPINDLE HOUSING ASM This part replaces 104-3552. Price: $244.67 |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 69-6950. Price: $18.44 |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 7 |
104-8322 |
WASHER-HARDENED Price: $23.22 |
| 9 |
532194320 |
KEEPER.BELT.ENGINE.4.2 Price: $8.99 |
| 11 |
532414737 |
KIT.SVC.CLTCH.OG.1.125" This part replaces 532179335. Price: $225.99 |
| 12 |
532194343 |
PULLEY ENGINE Price: $44.99 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $90.99 |
| 18 |
532430218 |
CAP.ASM.FUEL.TANK.3"BLACK Price: $11.99 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN. Price: $19.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 28 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $4.99 |
| 42 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 62 |
532434017 |
SHIELD.HEAT.MUFFLER Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
532159955 |
EXHAUST TUBE LH *SUBS/2* Price: $25.99 |
| 71 |
532160589 |
EXHAUST TUBE RH Price: $39.99 |
| 79 |
532183906 |
SCREW.SOCKET.HEAD.5/16-18 Price: $3.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
532179953 |
BOLT HEX 7/16-20 X 3.75 GR. 5 Price: $3.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
