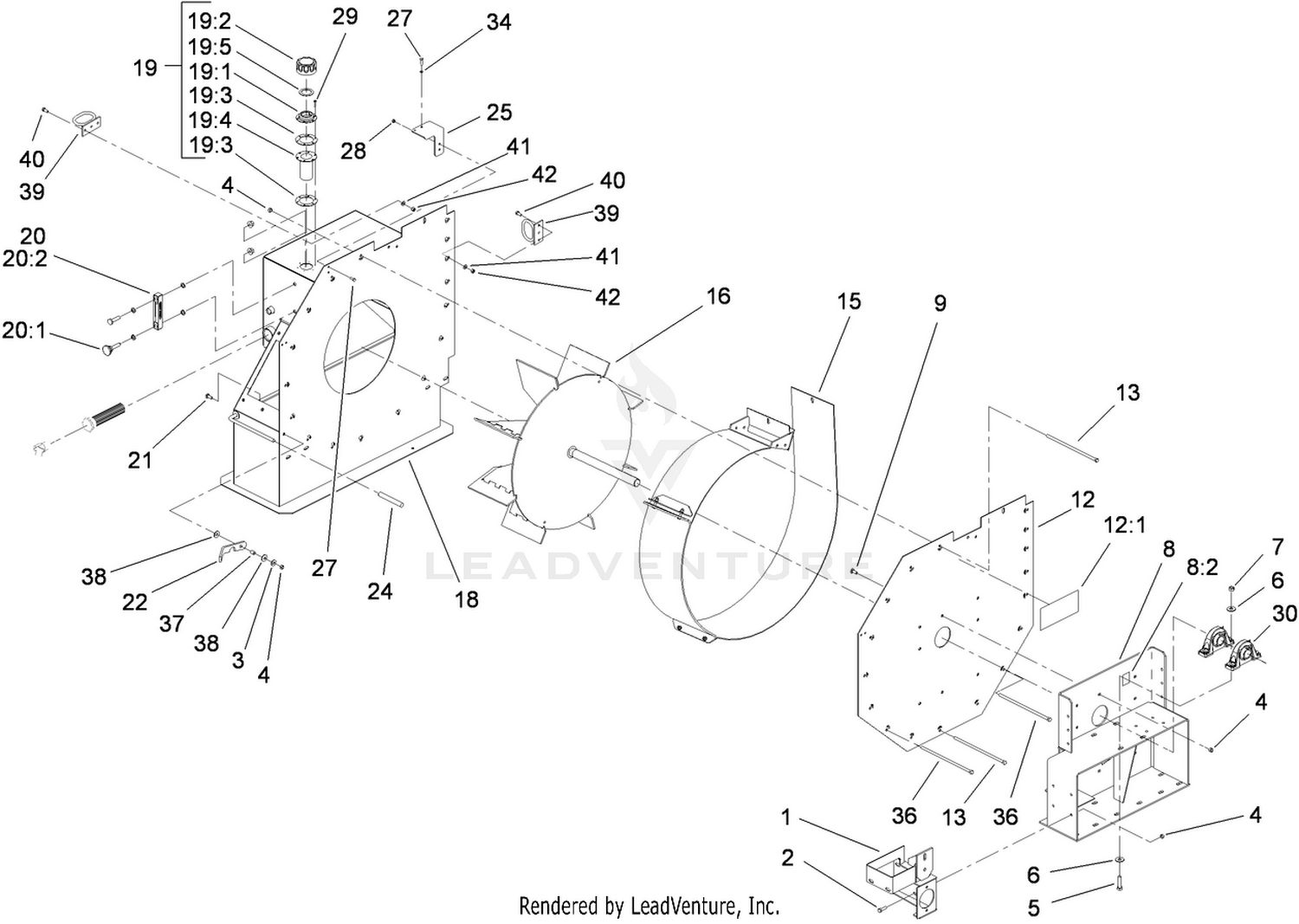

Impeller Assembly — Parts Catalog

Ref	Part Number	Description
1	108-0894-01	MOUNT-PUMP Price: $219.92
2	323-7	SCREW-HH Price: $0.65
3	3256-4	WASHER-FLAT Price: $0.28
4	104-8301	NUT-HF, NI Price: $1.09
5	325-8	SCREW-HH Price: $3.52
6	87-7270	WASHER-THRUST Price: $0.89
7	3296-23	NUT-LOCK, NI Price: $0.52
8	106-0191	MOUNT-DRIVE Price: $859.83
9	3231-2	BOLT-CARR Price: $0.81
12	106-0206	PANEL-BACK Price: $349.97
13	106-0184	SCREW-HH Price: $7.03
15	107-1359	BAND ASM Price: $821.47
16	107-1431-01	IMPELLER ASM Price: $1,910.73
18	SV305-00-01	FUNNEL ASM Price: $3,184.25
19	95-7004	FILLER CAP ASM Price: $94.19
20	SVB14700	THEMOMETER ASM Price: $402.82
21	3231-28	SCREW-CARR Price: $1.92
22	106-0236-01	LATCH Price: $18.25
24	PF225-00	COVER-HANDLE Price: $5.59
25	SVB15900-01	MOUNT-FILTER Price: $28.07
27	32105-15	SCREW-HWH Price: $1.79
28	3296-42	NUT-LOCK, NI Price: $0.28
29	32144-87	SCREW-HWHTF Price: $0.49
30	117-8263	BEARING-BLOCK, PILLOW Price: $220.92
34	3253-3	WASHER-LOCK Price: $0.31
36	105-4865	SCREW-HH Price: $35.75
37	92-9025	SPACER Price: $8.22
38	3290-473	WASHER-BELLEVILLE Price: $12.89
39	104-0028	GUIDE-HOSE Price: $46.21
40	HY3225	DISCONTINUED This part replaces 322-5. Price: Call Us
41	3256-23	WASHER-PLAIN Price: $0.28
