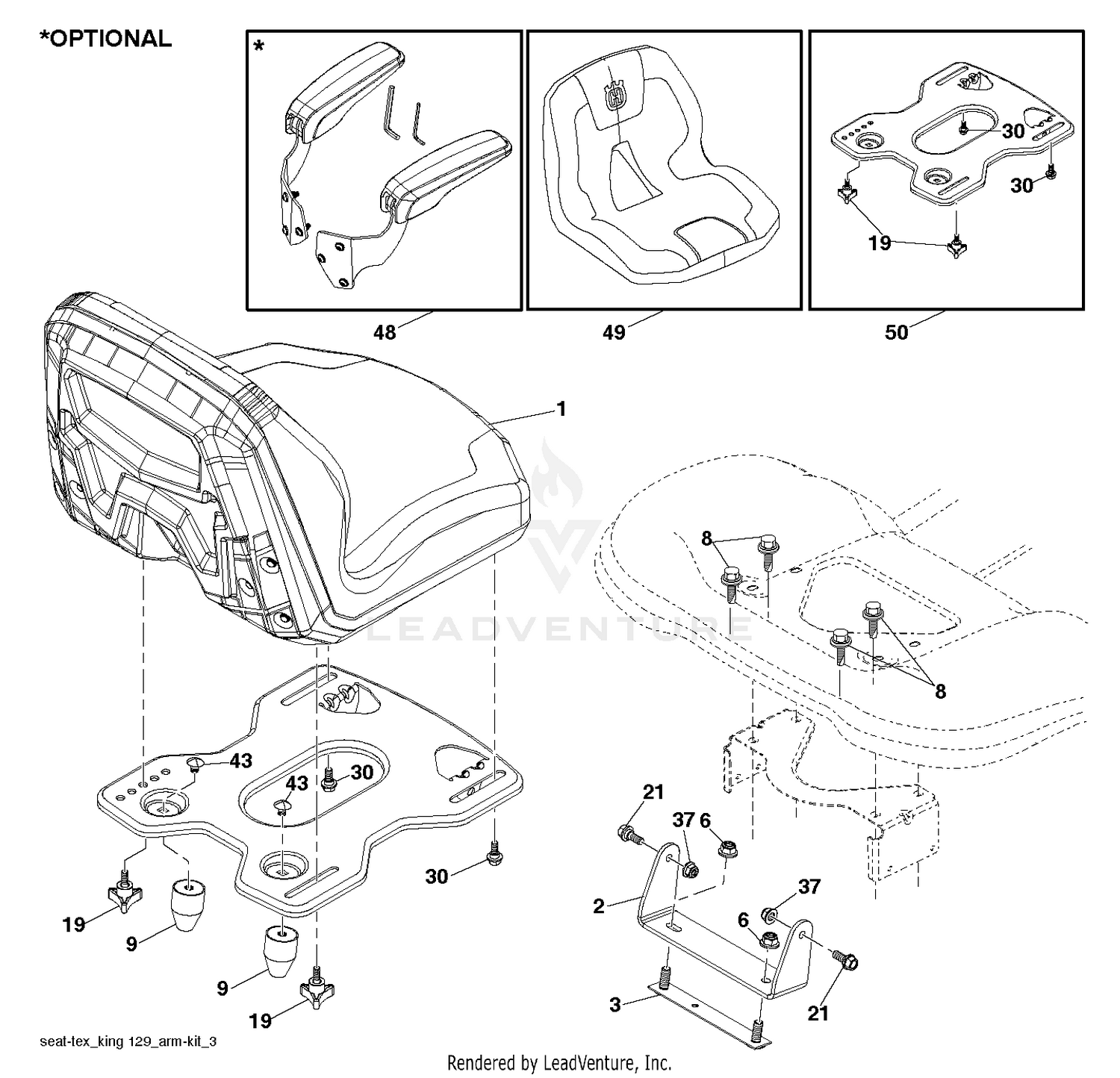

| Ref | Part Number | Description |
|---|
| 1 |
597658101 |
Seats Price: $249.99 |
| 1 |
93-4032 |
SHAFT-JACK Price: $245.00 |
| 2 |
597329902 |
Brackets Price: $14.99 |
| 2 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 3 |
5-1718 |
KEY-CLUTCH Price: $8.57 |
| 3 |
590777602 |
BRACKET ASSEMBLY REINFORCEMENT Price: $8.99 |
| 4 |
3243-6 |
SCREW-SET, SQH Price: $4.23 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 6 |
521996502 |
GSPW Nuts Price: $2.99 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 9 |
597785101 |
Bumpers Price: $14.99 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 11 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 14 |
3219-3 |
NUT-HEX Price: $0.34 |
| 15 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 16 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 93-4440. Price: $337.37 |
| 19 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 19 |
597783101 |
GSPW Knobs Price: $3.99 |
| 20 |
3217-8 |
NUT-HEX Price: $1.34 |
| 21 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 21 |
596240701 |
Bolts Price: $3.99 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 23 |
3247-6 |
SCREW-SET Price: $1.02 |
| 24 |
13-4880-01 |
SPROCKET This part replaces 13-4880. Price: $784.22 |
| 25 |
13-0480 |
SPRING Price: $30.51 |
| 26 |
13-3990-01 |
HANDLE-TRIP This part replaces 13-3990. Price: $189.07 |
| 27 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 28 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 29 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 30 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 30 |
597781801 |
Hardware Price: $3.99 |
| 31 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
322-7 |
SCREW-HH Price: $0.89 |
| 34 |
63-5210-01 |
DRIVE SIDE SPDL WA This part replaces 63-5210. Price: $150.53 |
| 35 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 36 |
140-2208 |
PULLEY-DRIVE This part replaces 93-4033. Price: $163.75 |
| 37 |
13-3710 |
WASHER Price: $3.05 |
| 37 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
321-4 |
SCREW-HH Price: $0.99 |
| 40 |
93-4438 |
BRACKET WA - SUPPORT Price: $108.32 |
| 41 |
324-10 |
SCREW-HH Price: $1.97 |
| 43 |
597869301 |
Hardware Price: $2.99 |
| 48 |
547213101 |
ARMREST SERVICE KIT This part replaces 597658203. Price: $249.99 |
| 49 |
597959401 |
Seats Price: $109.99 |
