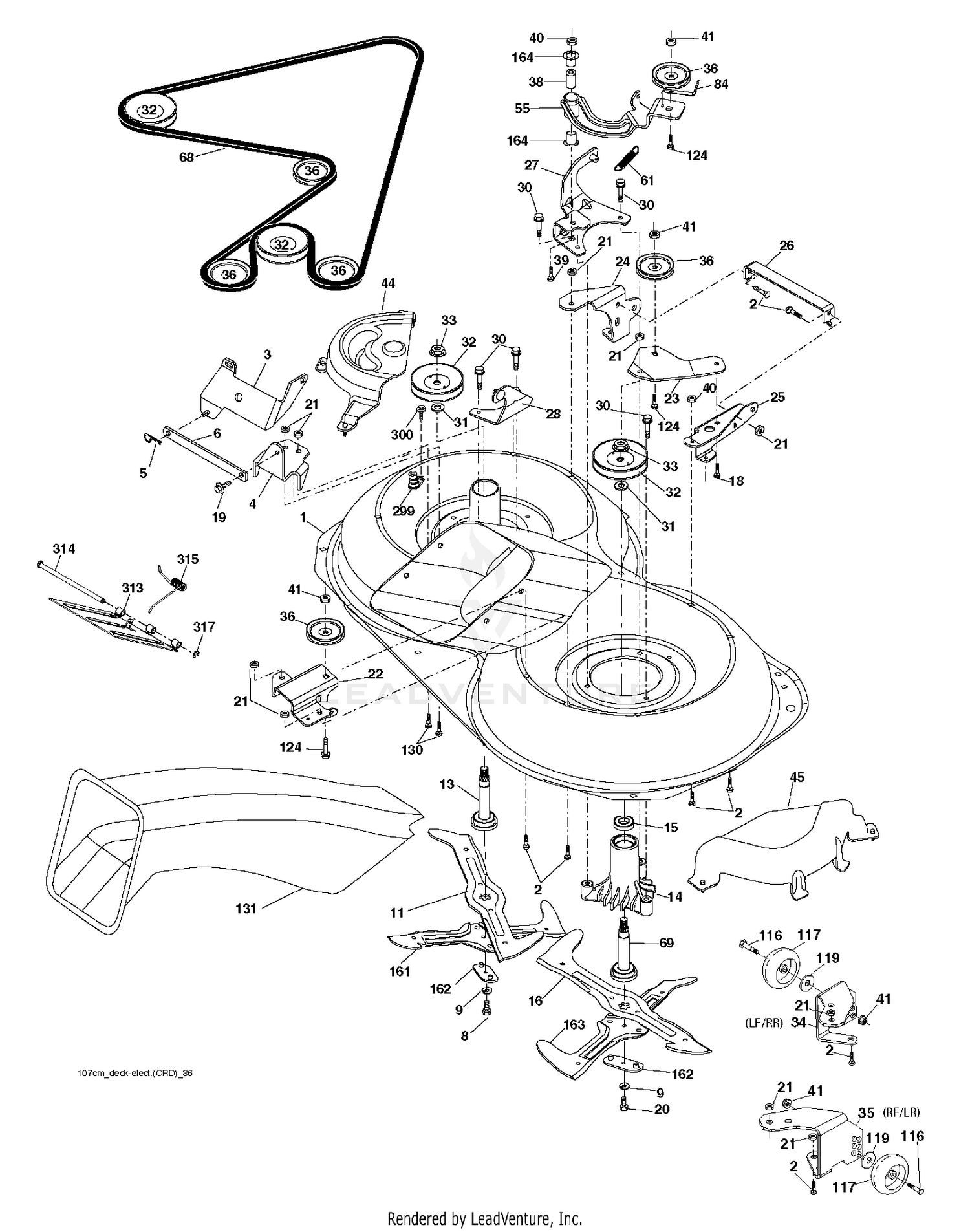

| Ref | Part Number | Description |
|---|
| 1 |
532441061 |
Price: Call Us |
| 1 |
93-1265 |
DECAL-SURFACE, HOT Price: $6.19 |
| 1 |
93-9198 |
DECAL-HOT SURFACE Price: $13.05 |
| 1 |
94-4578 |
DECAL - HOT SURFACE, JAP Price: $45.67 |
| 2 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $19.99 |
| 4 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 4 |
532169167 |
BRACKET Price: $14.76 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 5 |
93-7974-03 |
PLATE-BOX, BATTERY This part replaces 93-7974. Price: $87.76 |
| 6 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 7 |
93-7595 |
BATTERY BOX ASM Price: $83.58 |
| 8 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $5.99 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 9 |
75-1370 |
CABLE-BATTERY, POSITIVE Price: $74.84 |
| 10 |
94-1411 |
DISCONTINUED Price: Call Us |
| 11 |
532180583 |
BLADE.3N1.LH.CRD Price: $27.99 |
| 11 |
93-7968 |
PAD-FOAM Price: $33.52 |
| 12 |
3339-175 |
STRAPPING-WEB This part replaces 94-1445. Price: $18.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
110-4107 |
HOSE-FUEL This part replaces 63-7622. Price: $7.77 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 16 |
532180584 |
BLADE.3N1.RH.CRD Price: $27.99 |
| 17 |
94-2630 |
HOSE-RETURN Price: $37.90 |
| 18 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 18 |
93-4207 |
FITTING-TEE Price: $47.03 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 19 |
94-1408-03 |
SUPPORT-DEGASS ASM This part replaces 94-1408. Price: $184.30 |
| 20 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 20 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
532169165 |
BRACKET.IDLER.RR.107.CRD Price: $12.99 |
| 22 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 23 |
532169166 |
BRACKET Price: $22.99 |
| 24 |
583341901 |
BRKT.SPENSION.LH.107.CRD This part replaces 532413436. Price: $22.99 |
| 24 |
93-7591 |
DISCONTINUED Price: Call Us |
| 25 |
583259001 |
BRKT.SUSP.RF.CRD.107.2006 This part replaces 532400105. Price: $34.99 |
| 25 |
92-7424 |
HOSE-OVERFLOW, RADIATOR Price: $17.86 |
| 26 |
33103-020 |
SCREW-HHF Price: $2.16 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532400110. Price: $29.99 |
| 27 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 27 |
532169172 |
BRACKET Price: $24.99 |
| 28 |
583029401 |
BRACKET.ASM.SUSP.LR.107.CRD This part replaces 532169168. Price: $22.99 |
| 28 |
93-7589 |
HOSE-OVERFLOW Price: $80.27 |
| 29 |
93-4215 |
DISCONTINUED Price: Call Us |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 32 |
532198145 |
PULLEY.MANDREL.4.80 PD.2006 Price: $7.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 34 |
583258801 |
BRKT.GA.WHL.LF/RR.107.2006 This part replaces 532400103. Price: $22.99 |
| 35 |
583258901 |
BRKT.GA.WHL.RF/LR.107.2006 This part replaces 532400104. Price: $19.99 |
| 35 |
93-9178 |
MUFFLER ASM Price: $1,436.71 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 36 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 37 |
93-9164 |
INDICATOR-MINI Price: $55.24 |
| 38 |
2412-125 |
CLAMP-HOSE Price: $5.22 |
| 38 |
532169851 |
SPACER Price: $8.99 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 39 |
94-2624 |
DISCONTINUED Price: Call Us |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 40 |
93-7584 |
HOSE-INTAKE Price: $92.76 |
| 41 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
93-7485 |
AIR FILTER ASM Price: $390.51 |
| 42 |
94-8108-01 |
DISCONTINUED This part replaces 94-8108. Price: Call Us |
| 43 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 44 |
532432773 |
Price: Call Us |
| 45 |
532432772 |
Price: Call Us |
| 46 |
94-2812 |
GROMMET Price: $2.79 |
| 48 |
33005-00 |
NUT-HF Price: $0.68 |
| 51 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 52 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 53 |
117-3276 |
DECAL-DANGER This part replaces 93-7840. Price: $10.70 |
| 55 |
531149401 |
SERVICE KIT ARM.IDLER ARM.IDLE This part replaces 532169849. Price: $17.99 |
| 61 |
583252701 |
SPRING.TENSION.107.CRD.2006 This part replaces 532199487. Price: $7.99 |
| 68 |
547597001 |
DRIVE BELT HEX-BELT 107 MOWER This part replaces 532402009. Price: $59.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 124 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 130 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 131 |
532438163 |
Price: Call Us |
| 161 |
532180424 |
Price: Call Us |
| 162 |
532180878 |
Price: Call Us |
| 163 |
532180425 |
BLADE.CROSS.RH.CRD.107 Price: $39.99 |
| 164 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 299 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 300 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 313 |
583527801 |
DOOR.EZ.MULCH.107.CRD This part replaces 532438197. Price: $7.99 |
| 314 |
583507401 |
PIN.HINGE This part replaces 532435861. Price: $5.99 |
| 315 |
532439928 |
Price: Call Us |
| 317 |
532437988 |
E-RING.5/16" Price: $7.99 |
