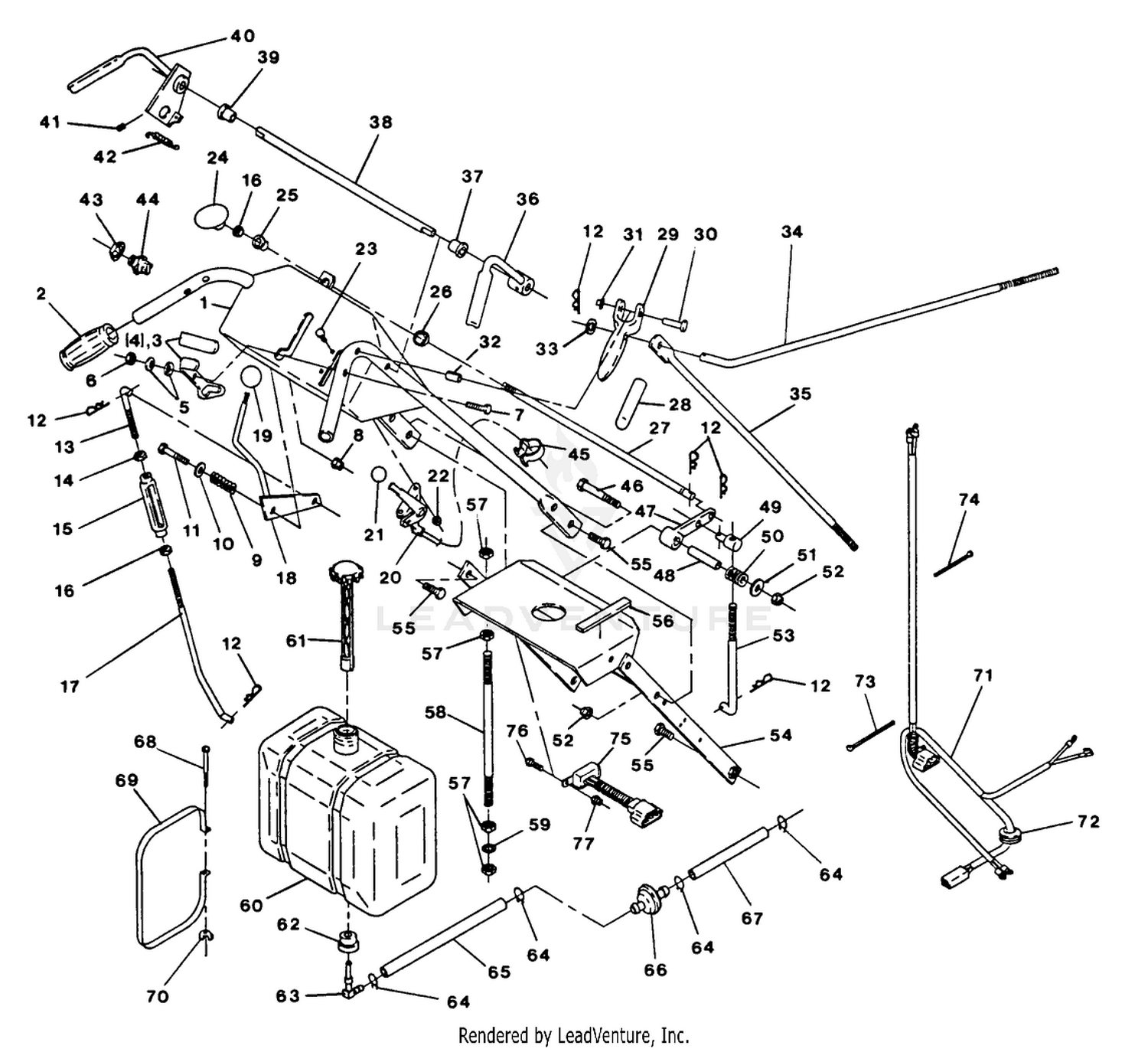

| Ref | Part Number | Description |
|---|
| 1 |
322075 |
Handle Weldment - 5 - Speed Price: Call Us |
| 2 |
303097 |
Grip, Handle Price: Call Us |
| 3 |
302007 |
Right Latch w/Grip Price: Call Us |
| 4 |
302005 |
Left Latch w/Grip Price: Call Us |
| 5 |
303435 |
Washer, Disc Spring 1/4 Price: Call Us |
| 8 |
804256 |
Nut, Nylock 5/16-18 Price: Call Us |
| 9 |
603325 |
Spring Compr 5/8 D Price: Call Us |
| 10 |
805257 |
Washer, Fiat SAE 5/16 Price: Call Us |
| 12 |
806003 |
Pin, Hair Cotter .0585 #2 Price: Call Us |
| 13 |
513703 |
Rod - RH PTO Lower Price: Call Us |
| 14 |
804761 |
Jam Nut LH 5/16-18 Price: Call Us |
| 15 |
513705 |
Body - Turnbuckle Price: Call Us |
| 16 |
804751 |
Jam Nut RH 5/16-18 Price: Call Us |
| 17 |
513540 |
Rod - PTO Lower Price: Call Us |
| 18 |
602456 |
Lever Weld - Shift Price: Call Us |
| 19 |
603175 |
Knob - 1-3/8 Price: Call Us |
| 20 |
323129 |
Throttle Control (14$17 hp Kaw.) Price: Call Us |
| 21 |
513592 |
Knob, Ball Red Price: Call Us |
| 22 |
804252 |
Nut, Nyloc #10-24 Price: Call Us |
| 23 |
807513 |
Bolt, Carriage #10-24x1/2 G2 Price: Call Us |
| 24 |
323134 |
Knob - Push/Pull Price: Call Us |
| 25 |
323143 |
Nylon Bearing - .38 ID Price: Call Us |
| 26 |
323142 |
Pushnut - .50 Shaft Price: Call Us |
| 27 |
323123 |
Link - Blade Push/Pull Price: Call Us |
| 28 |
303021 |
Grip, Drive Lever Price: Call Us |
| 29 |
302006 |
Lever, Drive W/Grip Price: Call Us |
| 30 |
808250 |
Pin, Clevis 3/16x1 3/4 Price: Call Us |
| 31 |
803001 |
Nut, Pal 3/16 Price: Call Us |
| 32 |
806340 |
Pin, Roll 5/16x1 Price: Call Us |
| 33 |
805258 |
Washer, Flat Std 5/16 Price: Call Us |
| 34 |
323089 |
Brake Linkage Price: Call Us |
| 35 |
323025 |
Caliper Linkage Price: Call Us |
| 36 |
302138 |
Lever Wldmt OPC RH Price: Call Us |
| 37 |
303365 |
Bushing, Nylon Price: Call Us |
| 38 |
303364 |
Connecting Rod Price: Call Us |
| 39 |
303369 |
Bushing - Flanged Price: Call Us |
| 40 |
602507 |
Lever Wldmt OPC LH Price: Call Us |
| 41 |
803322 |
Screw, Set 312-24x.312 Price: Call Us |
| 42 |
303363 |
Spring, Actuator Price: Call Us |
| 44 |
303372 |
Operator Control Switch Price: Call Us |
| 45 |
303088 |
Clip, Cable Price: Call Us |
| 47 |
323139 |
Cable Throttle (Kaw.) w/Choke Price: Call Us |
| 48 |
323133 |
Bushing Price: Call Us |
| 49 |
303168 |
Adjust Swivel - Shor Price: Call Us |
| 50 |
303160 |
Compression Spring Price: Call Us |
| 51 |
805260 |
Washer, Flat Std 3/8 Price: Call Us |
| 52 |
804257 |
Nut, Nyloc 3/8-16 Price: Call Us |
| 54 |
322073 |
Link - Blade Midl. Price: Call Us |
| 55 |
800292 |
Screw, Hex Cap 3/8-16x1 Price: Call Us |
| 56 |
303315 |
Gas Tank Pad Price: Call Us |
| 57 |
804509 |
Nut, Reg Hex 1/2-13 Price: Call Us |
| 58 |
303173 |
Handle Brace Price: Call Us |
| 59 |
805008 |
Washer, Lock Hlcl Spg 1/2 Reg Price: Call Us |
| 60 |
543364 |
Tank, Gas Price: Call Us |
| 61 |
543365 |
Cap - Fuel Tank Gauge Price: Call Us |
| 62 |
513645 |
Bushing, Fuel Valve Price: Call Us |
| 63 |
513646 |
Valve, Fuel Shut - Off Price: Call Us |
| 64 |
303077 |
Clamp, Fuel Line Price: Call Us |
| 65 |
303306 |
Gas Line - 11" (Kohler) Price: Call Us |
| 66 |
303197 |
Filter, Fuel Price: Call Us |
| 67 |
303306 |
Gas Line - 11" (Kohler) Price: Call Us |
| 68 |
801062 |
Machine Screw, .25-20 x 3 Price: Call Us |
| 69 |
303465 |
Strap, Fuel Tank Price: Call Us |
| 70 |
543792 |
Wingnut - nyloc 1/4 Price: Call Us |
| 71 |
323147 |
Wiring Harness - Kawasaki Price: Call Us |
| 72 |
543296 |
Grommet - Fuel Line Price: Call Us |
| 73 |
303335 |
Plastic Tie (Large) Price: Call Us |
| 74 |
303287 |
Tie-Cable 5 1/2 (Small) Price: Call Us |
| 75 |
323145 |
Interlock - Brg./Kaw. OPC Price: Call Us |
| 76 |
800251 |
Screw, Hex Cap 1/4-20x5/8 Price: Call Us |
| 303022 |
Fuel |
Line - 8.5" (Kawasaki) Price: Call Us 303022 |
| 303307 |
Gas |
Line - 4.0" (Kawasaki) Price: Call Us 303307 |
| 303471 |
Hose, |
Fuel Line 12" Price: Call Us 303471 |
| 303472 |
Gas |
Line - 19" (Briggs Vanguard) Price: Call Us 303472 |
| 323148 |
Wiring |
Harness - Briggs Price: Call Us 323148 |
| 323149 |
Wiring |
Harness - Kohler Price: Call Us 323149 |
