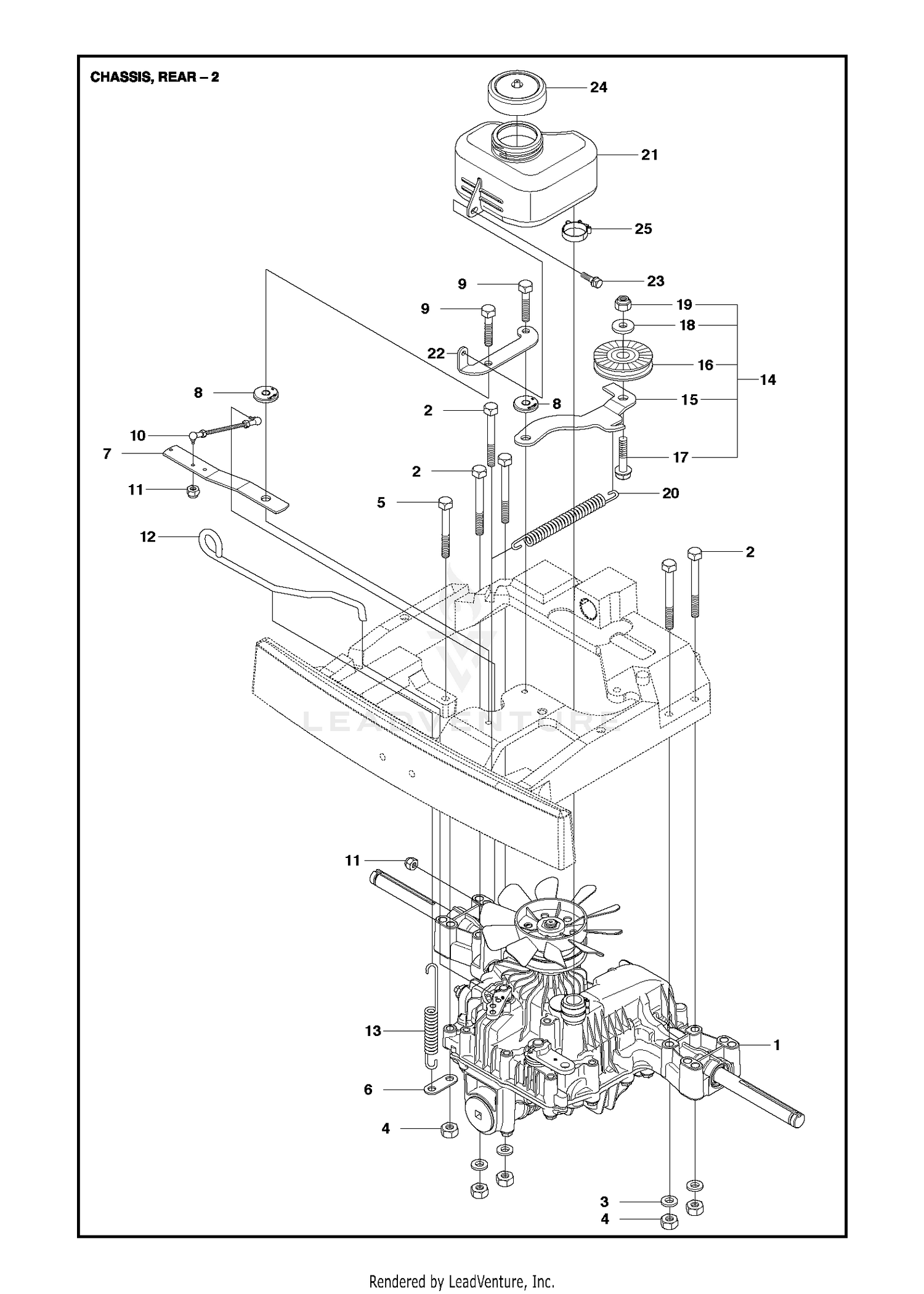

CHASSIS REAR 2
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 590716801 | TRANSMISSION K574A Price: $849.99 |
| 2 | 725246751 | Hex Bolt Price: $4.99 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 4 | 731231801 | NUT Price: $3.99 |
| 5 | 725246251 | SCREW Price: $4.99 |
| 6 | 506599301 | CONNECTOR Price: $5.99 |
| 7 | 579596801 | NEEDS DESCRIPTION Price: Call Us |
| 9 | 725245171 | SCREW Price: $2.08 |
| 10 | 120-5819 | ALTERNATOR Price: $823.84 |
| 10 | 506987501 | ROD Price: $32.99 |
| 11 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 12 | 506988201 | Rod Price: $12.71 |
| 13 | 506834301 | SPRING Price: $3.99 |
| 14 | 506988401 | TENSIONER Price: $54.99 |
| 15 | 588740401 | BELT TENSIONER ARM Price: $14.99 |
| 16 | 506946901 | PULLEY Price: $34.99 |
| 17 | 725245551 | SCREW Price: $3.99 |
| 18 | 734116441 | SPACER Price: $3.99 |
| 19 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 20 | 120-5820 | STAY-DYNAMO Price: $35.86 |
| 20 | 594924101 | Springs This part replaces 506988601. Price: $3.99 |
| 21 | 544100102 | EXPANSION TANK RIDER EXTENDED This part replaces 544100101. Price: $54.99 |
| 22 | 544121701 | BRACKET Price: $6.99 |
| 23 | 725236461 | SCREW Price: $2.99 |
| 24 | 506673301 | FUEL CAP Price: $27.99 |
| 25 | 505131102 | HOSE CLAMP 20-32 Price: $4.99 |
| 30 | 120-5821 | BOLT-FLANGE Price: $2.01 |
| 40 | 120-5822 | NUT-FLANGE Price: $3.22 |
| 50 | 108-7088 | BOLT Price: $1.22 |
| 60 | 98-7572 | NUT Price: $0.32 |
| 70 | 98-7699 | WASHER-SPRING Price: $0.44 |
| 80 | 120-5823 | PULLEY-DRIVE, FAN Price: $154.32 |
| 90 | 98-7451 | KEY-FEATHER Price: $1.72 |
| 100 | 120-5824 | BELT-FAN Price: $32.27 |
| 110 | 115-8600 | COUPLER ASM Price: $14.92 |
| 120 | 115-8601 | CONNECTOR Price: $18.70 |
