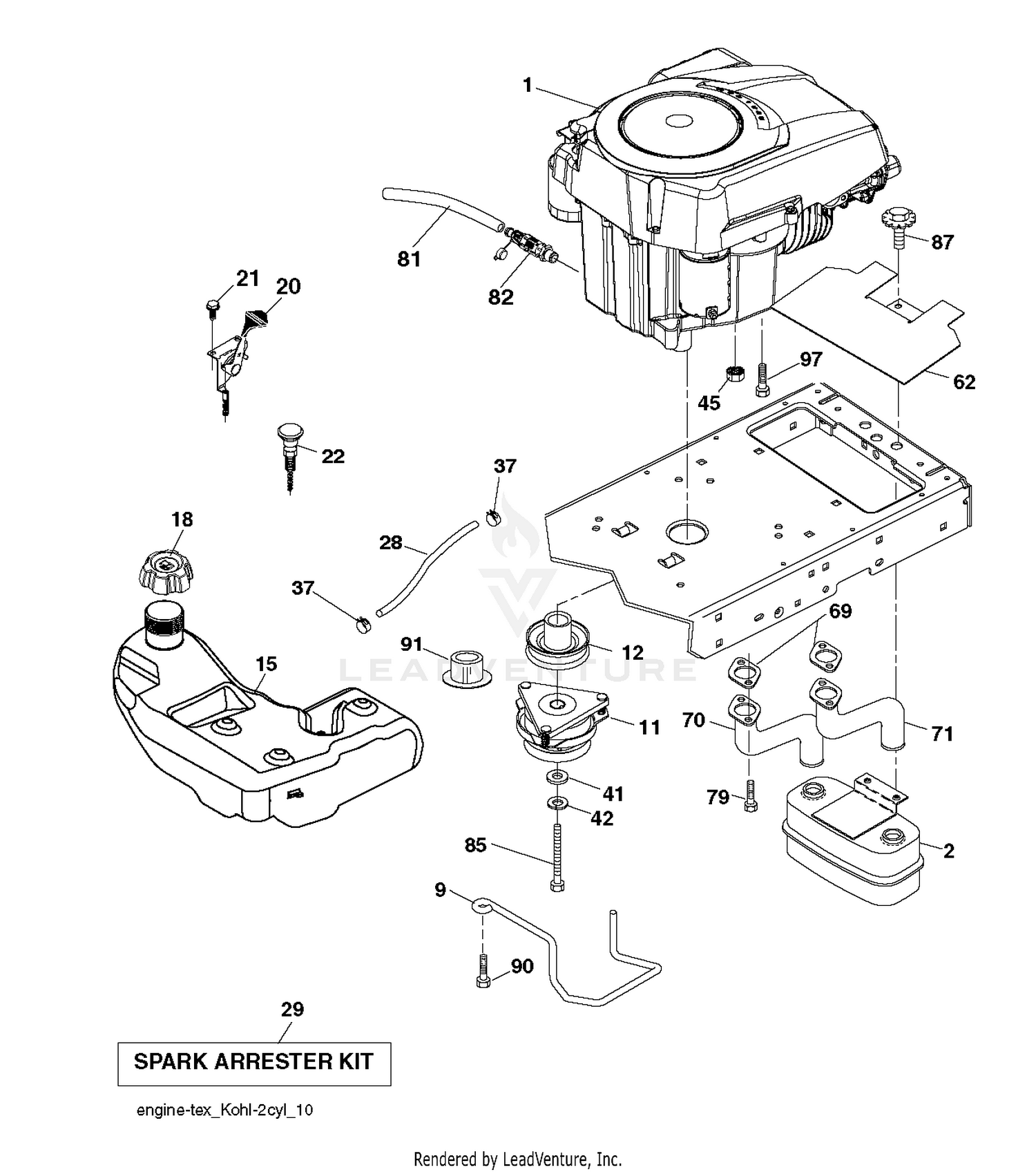

| Ref | Part Number | Description |
|---|
| 1 |
98-7708 |
NUT Price: $7.76 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 3 |
98-7709 |
COLLAR Price: $8.79 |
| 4 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 5 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 6 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 7 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 8 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 10 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 11 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 13 |
98-7719 |
FRAME-END Price: $88.65 |
| 14 |
98-7730 |
NUT Price: $1.31 |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 15 |
98-7731 |
BOLT Price: $3.94 |
| 16 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 17 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
98-7732 |
NUT Price: $1.45 |
| 19 |
110-3799 |
REGULATOR ASM This part replaces 98-7733. Price: $426.99 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 20 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
98-7729 |
BOLT Price: $2.35 |
| 23 |
98-7720 |
COVER-END Price: $39.58 |
| 24 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 25 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 26 |
98-7724 |
BRUSH Price: $12.41 |
| 27 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 28 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 97 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
