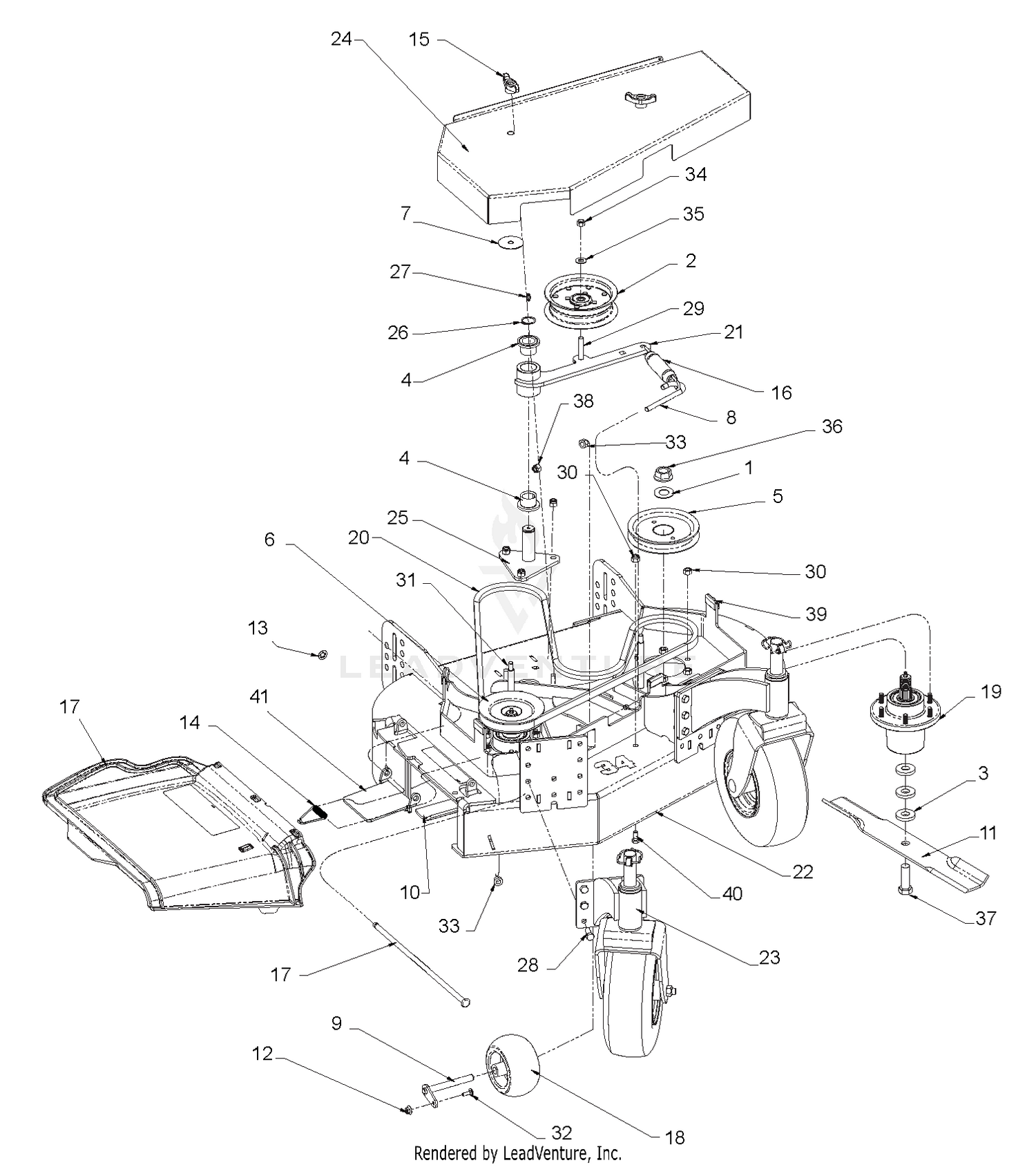

| Ref | Part Number | Description |
|---|
| 1 |
06401037 |
WSHR-FL-STL .75X1.312X.12 ZC12 This part replaces 03399703. Price: $1.95 |
| 2 |
07346700 |
IDLER, FLAT-5.00" X .75" This part replaces D18032. Price: $72.45 |
| 3 |
06401033 |
WSHR,FLT .630X1.50X.25 ZCC This part replaces D18055. Price: $6.45 |
| 4 |
D18076 |
BRG, FLG 1.00X1.25X1.00 Price: $6.45 |
| 5 |
03399702 |
PULLEY, SPLINE SPINDLE LSE Price: $67.45 |
| 6 |
03828700 |
PULLEY, SPLINE SPINDLE LSE Price: $57.95 |
| 7 |
D24019 |
WASHER, .402X2.00X.055 FEND Y Price: Call Us |
| 8 |
D23058 |
J-BOLT, 3/8-16 X 4.00 Y Price: $5.45 |
| 9 |
GDA10103 |
PIVOT, RETAINER WELD Price: $43.95 |
| 10 |
GDU10230 |
BLADE, 16.500 X .80 LIFT Price: $25.95 |
| 11 |
GDU10231 |
BLADE, 18.000 X .80 LIFT Price: $27.45 |
| 12 |
H122207 |
NUT-1/4" FLANGE PREVAILING TOR Price: Call Us |
| 13 |
H141123 |
RETAINER # Price: Call Us |
| 14 |
03393800 |
SPRING, TORSION .460"X.138" Price: $5.45 |
| 15 |
M119352 |
KNOB, 3/8-16 INSERT Price: $3.45 |
| 16 |
N242189 |
SPRING, EXT Price: $9.45 |
| 17 |
TCA16387 |
CHUTE DISCHARGE ASSY # Price: $32.95 |
| 18 |
TCU18744 |
WHEEL, GAGE Price: $12.95 |
| 19 |
00200262 |
ASSY, SPINDLE S/O This part replaces 00200260. Price: $258.45 |
| 20 |
00201010 |
BELT, HB 80.3 EL AMD OHR Price: $62.95 |
| 21 |
00201145 |
WLDT, IDLER ARM Price: $47.45 |
| 22 |
03729404 |
WLDT, FIXD DECK GRDNE W/DECALS Price: Call Us |
| 24 |
00201357 |
SHIELD, DECK W/DECALS GRT DANE Price: Call Us |
| 25 |
00201178 |
WLDT, IDLER PIVOT Price: $58.05 |
| 26 |
05700160 |
SNAP RING, 1.00 X .042 EXT This part replaces 00424390. Price: $3.45 |
| 27 |
00959995 |
FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
| 28 |
00960046 |
BOLT, 3/8-16X1.00 HEX 5 Y Price: Call Us |
| 29 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 00960051. Price: $3.95 |
| 30 |
00960502 |
NUT, 3/8-16 STD HEX GR5 Y Price: Call Us |
| 31 |
00963019 |
BOLT, 3/8-16X1.00 CRG 5 SN Y Price: Call Us |
| 32 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC This part replaces 00963095. Price: $0.95 |
| 33 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 00964016. Price: $1.45 |
| 34 |
00964022 |
LOCKNUT, 3/8-16 CROWN Y Price: Call Us |
| 35 |
00964501 |
WASHER, .406X.813X.065 FLAT Y Price: Call Us |
| 36 |
06500031 |
LOCKNUT, 3/4-16 CROWN GR 8 Y This part replaces 00964024. Price: $3.45 |
| 37 |
05901725 |
BLT, HEX .62-11X2.00 G8 ZCC This part replaces 00967348. Price: $5.45 |
| 38 |
00968087 |
LOCKNUT, 3/8-16 NYLOC Y Price: Call Us |
| 39 |
00999538 |
TRIM, LOCK 1/4" EDGE Price: $5.45 |
| 40 |
00963033 |
BOLT, 3/8-16X.750 CRG 5 LN Y Price: Call Us |
