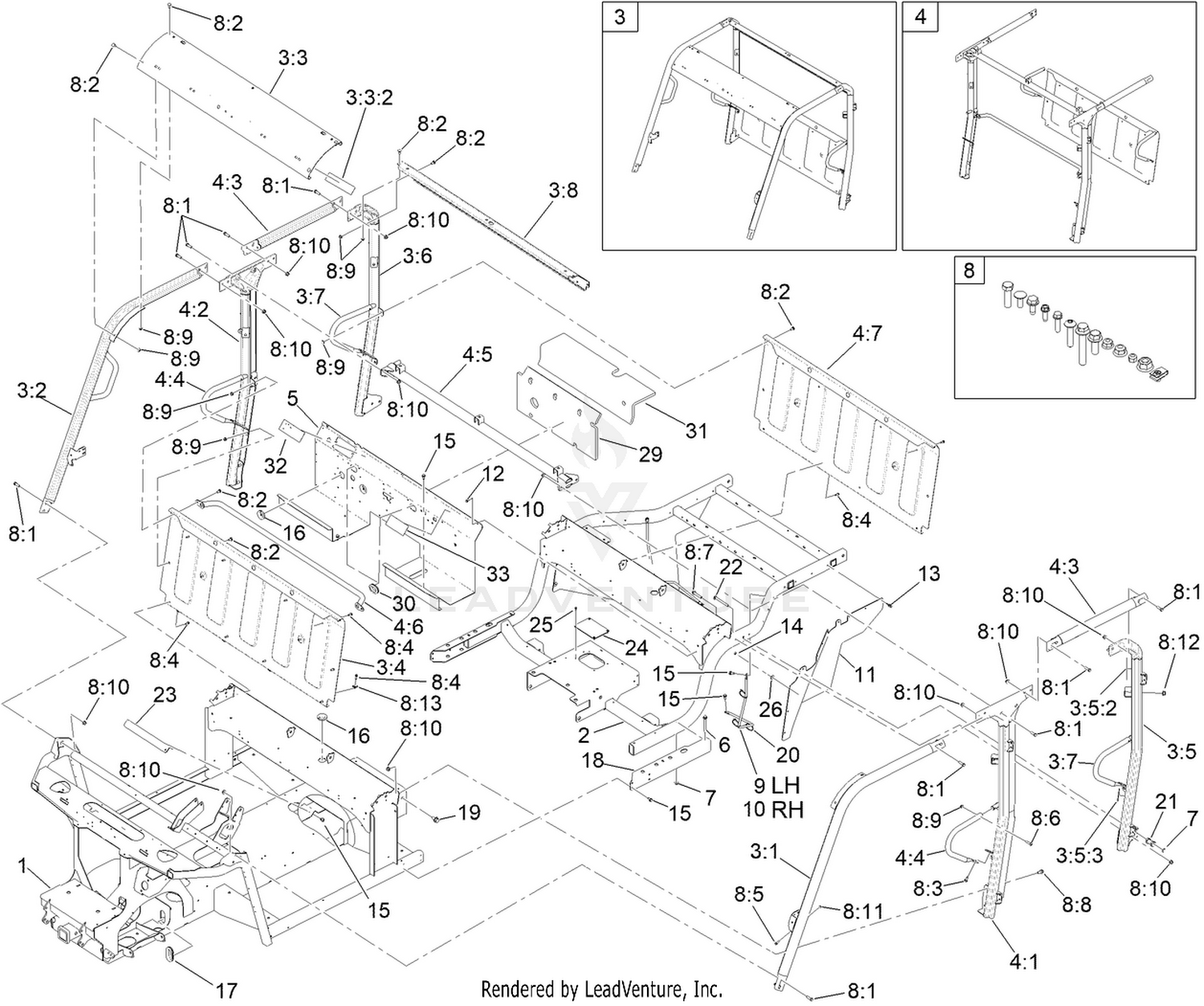

| Ref | Part Number | Description |
|---|
| 1 |
137-6850-03 |
CREW FRONT FRAME ASM [BLACK] Price: Call Us |
| 2 |
137-2800-03 |
REAR FRAME ASM [BLACK] Price: Call Us |
| 5 |
145-7960-03 |
PANEL-UNDERSEAT Price: Call Us |
| 6 |
116-4701 |
SCREW-HHF Price: $2.59 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
144-2296 |
CREW ROPS HARDWARE KIT Price: $204.04 |
| 9 |
139-3432 |
SUPPORT-SKIRT, LH SIDE Price: $12.69 |
| 10 |
139-3433 |
SUPPORT-SKIRT, RH SIDE Price: $12.69 |
| 11 |
147-2825 |
SKIRT-SIDE This part replaces 138-9409. Price: $73.77 |
| 12 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 13 |
125-9622 |
RIVET-BLIND Price: $1.09 |
| 14 |
138-5775 |
SCREW-DELTA POINT Price: $4.27 |
| 15 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 16 |
139-3436 |
GROMMET Price: $1.02 |
| 17 |
240-12 |
GROMMET Price: $28.58 |
| 18 |
139-4433-03 |
RAIL-FRAME Price: Call Us |
| 19 |
3234-6 |
SCREW-HHF Price: $3.19 |
| 20 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 21 |
140-4775 |
PIN-LATCH Price: $9.09 |
| 22 |
3231-37 |
SCREW-CARR Price: $3.39 |
| 23 |
144-2225-0P |
BRACE-CROSS Price: Call Us |
| 24 |
144-2245 |
COVER-ACCESS Price: $5.87 |
| 25 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.32 |
| 26 |
3256-67 |
WASHER Price: $0.49 |
| 29 |
145-7990 |
FOAM-BARRIER, HEAT Price: $17.44 |
| 30 |
110-5090 |
GROMMET Price: $7.08 |
| 31 |
145-7998 |
FOAM-BARRIER, HEAT Price: $21.29 |
| 32 |
147-8164 |
DECAL-FUSE, UTX GAS This part replaces 145-2225. Price: $6.97 |
